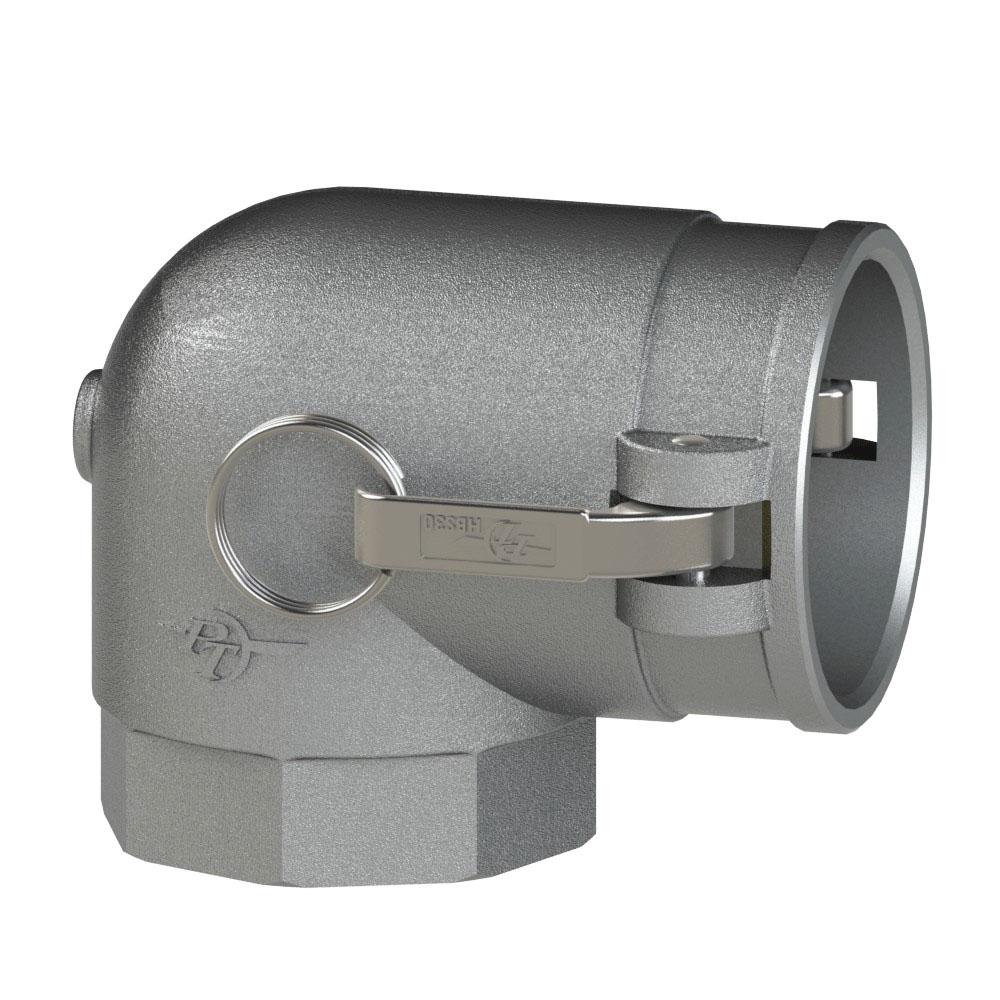

1400720 (20G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 2" Female NPT x 2" Coupler | 316 Stainless Steel | Buna-N Seal

1400720 (20G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 2" Female NPT x 2" Coupler | 316 Stainless Steel | Buna-N Seal

Sale price$337.25

PT Coupling
Cam & Groove (Camlock) Adapter with Check Valve | Type G | 90° Elbow | Female NPT x Coupler | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–14 $317.02
15–29 $286.66
30+ $252.94
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Cam & Groove Type:

Type D

Ends Configuration:
  • 2in Female NPT
  • 2in Female Cam & Groove
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Stainless Steel G-Elbows are assembled with stainless Steel check valve assemblies.
  • Less than 5 PSI required to start flow in the full flow direction.
  • Made in the USA
Part
Name		 Item # Orientation Female NPT
Thread		 Coupler
Size		 Max. Allowable
Working Press.
(PSI)*
10G 1400710 90° 1" 1" 250 PSI
20G 1400720 90° 2" 2" 250 PSI
25G 1400725 90° 2-1/2" 2-1/2" 200 PSI
30G 1400730 90° 3" 3" 200 PSI
40G 1400740 90° 4" 4" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
