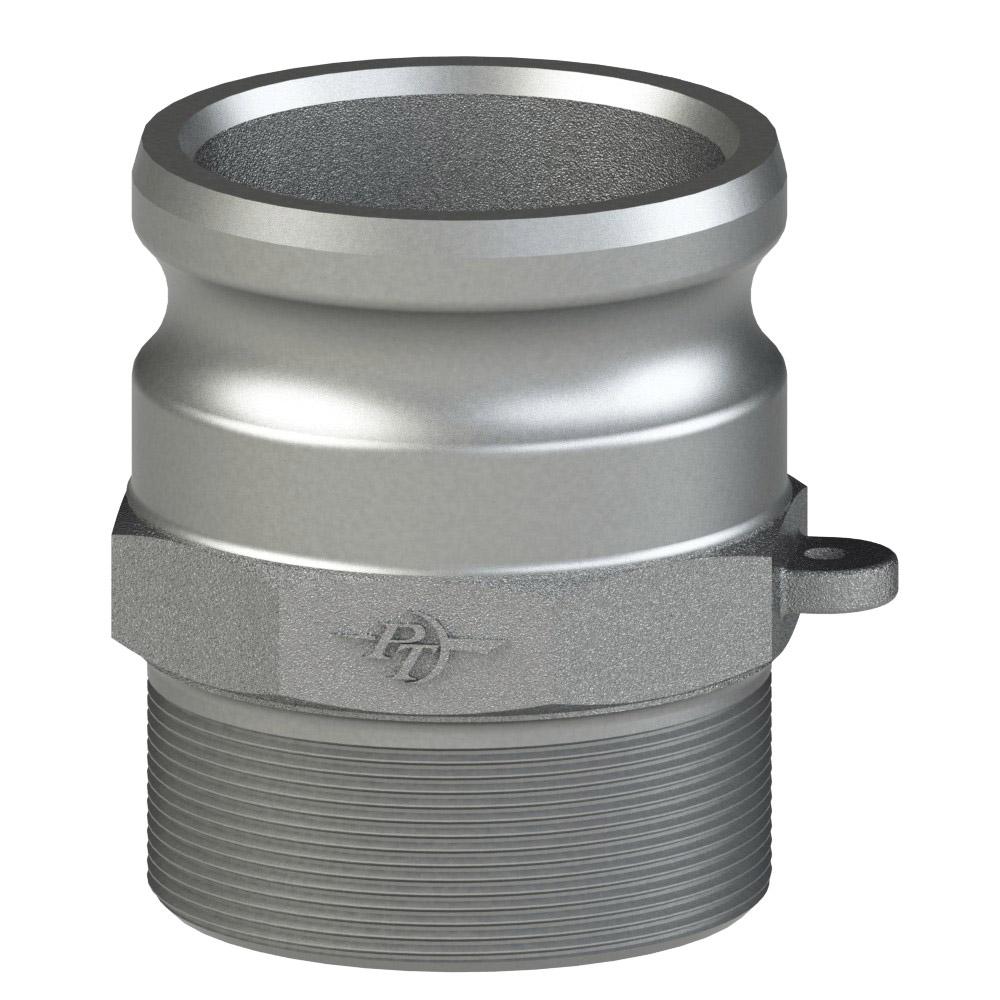

1400625 (25F) by PT-Coupling | Cam & Groove Adapter | Type F | 2-1/2" Adapter x 2-1/2" Male NPT | 316 Stainless Steel

1400625 (25F) by PT-Coupling | Cam & Groove Adapter | Type F | 2-1/2" Adapter x 2-1/2" Male NPT | 316 Stainless Steel

Sale price$209.23

PT Coupling
Cam and Groove (Camlock) Adapter | Type F | Adapter x Male NPT | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $196.68
20–59 $177.85
60+ $156.92
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type F

Ends Configuration:
  • 2-1/2in Male Cam & Groove
  • 2-1/2in Male NPT
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Male NPT
Thread		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Across
Corners
(F)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
E05F 1400601 1/2" 1/2" 1.96" 1.26" 0.53" 1.12" - 1.03" 250 PSI
1/2F 1400605 3/4" 1/2" 2.47" 1.67" 0.56" 1.42" - 0.97" 250 PSI
07F 1400607 3/4" 3/4" 2.47" 1.67" 0.75" 1.42" - 0.97" 250 PSI
10F 1400610 1" 1" 2.89" 1.99" 0.85" 1.75" 0.34" 1.19" 250 PSI
12F 1400612 1-1/4" 1-1/4" 3.23" 2.23" 1.04" 2.16" 0.34" 1.44" 250 PSI
15F 1400615 1-1/2" 1-1/2" 3.29" 2.31" 1.34" 2.44" 0.30" 1.48" 250 PSI
20F 1400620 2" 2" 3.57" 2.57" 1.72" 2.84" 0.28" 1.75" 250 PSI
25F 1400625 2-1/2" 2-1/2" 4.18" 2.78" 2.14" 3.45" 0.29" 1.75" 200 PSI
30F 1400630 3" 3" 4.37" 2.87" 2.80" 4.07" 0.44" 1.84" 200 PSI
40F 1400640 4" 4" 4.79" 3.19" 3.78" 5.27" 0.40" 1.87" 150 PSI
50F 1400650 5" 5" 4.91" 3.21" 4.79" 6.39" 0.16" 1.97" 75 PSI
60F 1400660 6" 6" 5.20" 3.40" 5.84" 7.70" 0.60" 2.19" 75 PSI
80F 1400680 8" 8" 5.90" 3.90" 7.80" 10.00" 0.60" 2.15" 50 PSI
100F 1400690 10" 10" 6.75" 4.38" 9.88" 11.87" 0.60" 2.55" 50 PSI
120F 1400692 12" 12" 7.20" 4.80" 12.00" 14.10" - 2.55" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
