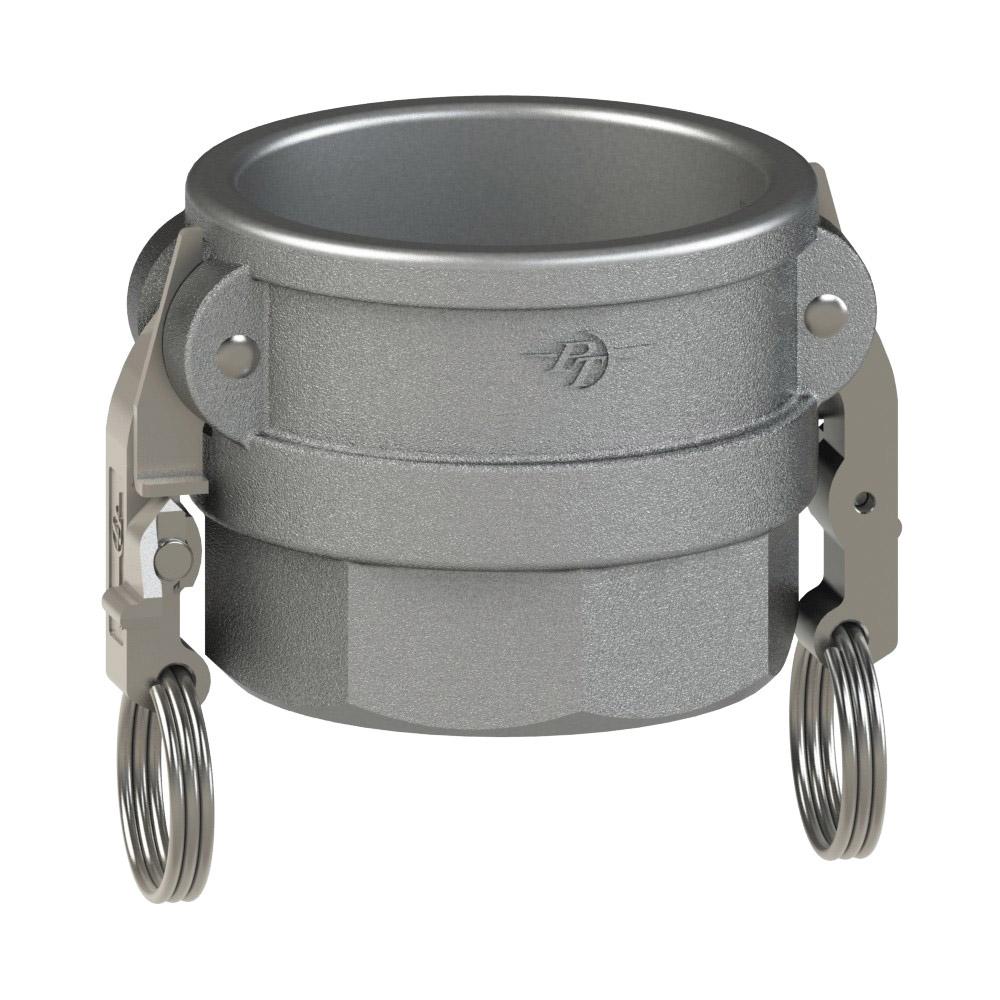

1400440L2 (40D SLII) by PT-Coupling | STA-LOK® II Cam & Groove Adapter | Type D | 4" Coupler x 4" Female NPT | 316 Stainless Steel | Buna-N Seal
PT Coupling
STA-LOK® II Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | 316 Stainless Steel | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $298.37 |
| 15–29 | $269.80 |
| 30+ | $238.06 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Female NPT Thread |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
|
| 10D SLII | 1400410L2 | 1" | 1" | 5.10" | 2.44" | 2.50" | 0.97" | 250 PSI | |
| 12D SLII | 1400412L2 | 1-1/4" | 1-1/4" | 6.86" | 3.26" | 2.70" | 1.25" | 250 PSI | |
| 15D SLII | 1400415L2 | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 2.80" | 1.50" | 250 PSI | |
| 20D SLII | 1400420L2 | 2" | 2" | 7.54" | 3.94" | 3.10" | 1.88" | 250 PSI | |
| 25D SLII | 1400425L2 | 2-1/2" | 2-1/2" | 8.03" | 4.43" | 3.40" | 2.38" | 200 PSI | |
| 30D SLII | 1400430L2 | 3" | 3" | 9.56" | 5.46" | 3.50" | 2.88" | 200 PSI | |
| 40D SLII | 1400440L2 | 4" | 4" | 10.66" | 6.56" | 3.90" | 3.60" | 150 PSI | |
| 50D SLII | 1400450L2 | 5" | 5" | 11.67" | 7.57" | 4.10" | 4.50" | 75 PSI | |
| 60D SLII | 1400460L2 | 6" | 6" | 16.26" | 10.16" | 4.40" | 5.50" | 75 PSI | |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
