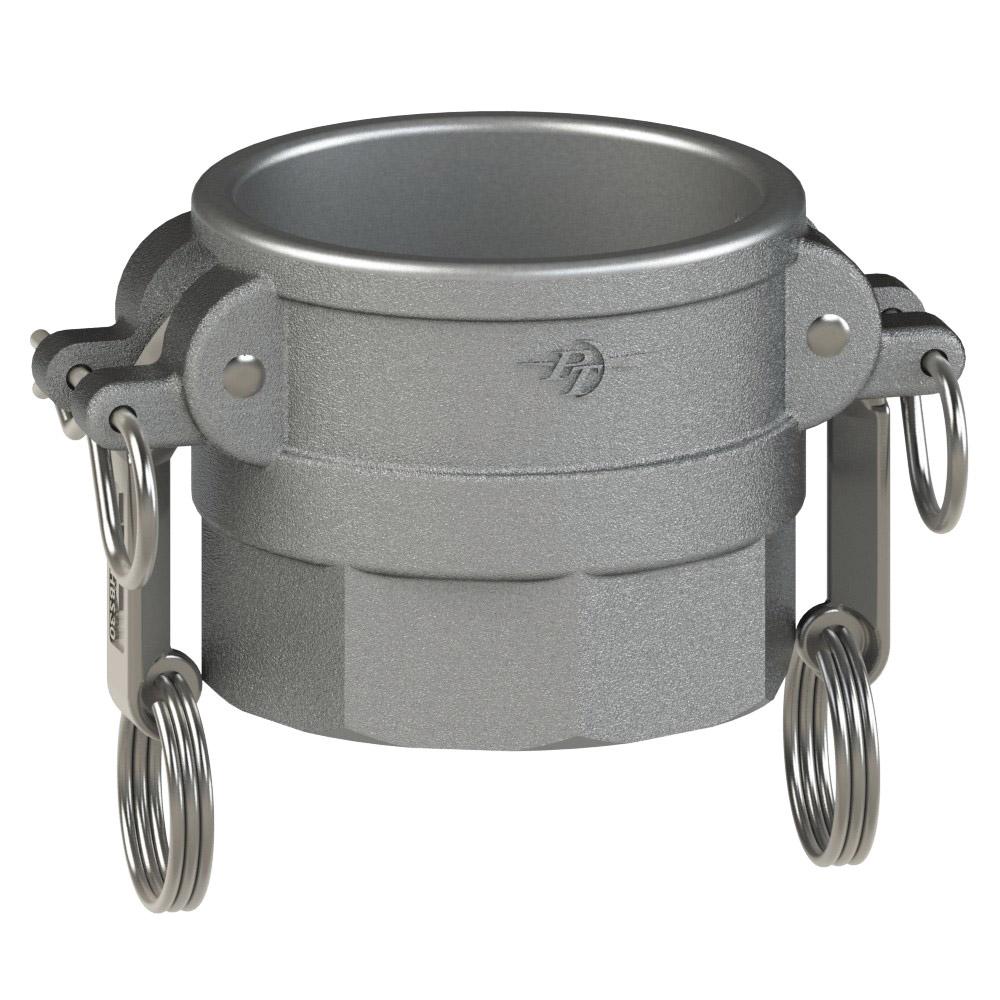

1400410SL (10DSL) by PT-Coupling | STA-LOK® Cam & Groove Adapter | Type DSL | 1" Coupler x 1" Female NPT | 316 Stainless Steel | Buna-N Seal

1400410SL (10DSL) by PT-Coupling | STA-LOK® Cam & Groove Adapter | Type DSL | 1" Coupler x 1" Female NPT | 316 Stainless Steel | Buna-N Seal

Sale price$90.43

PT Coupling
STA-LOK Cam & Groove (Camlock) Adapter | Type DSL | Coupler x Female NPT | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $85.00
20–59 $76.87
60+ $67.82
Discounts applied in cart/checkout.

Product Data:

Series:
  • STA-LOK
Shape:

Straight

Cam & Groove Type:

Type D
Overview:
  • STA-LOK® is a positive locking feature that comes with Carbon Steel or Stainless Steel hitch pin clips. You may also substitute a padlock in place of the hitch pin clip. Proper use of these mechanisms can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • All standard components are 300 series Stainless Steel.
  • Standard Cam assemblies in HB and HBS may be used on all STA-LOK® parts.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
10DSL 1400410SL 1" 1" 250 PSI
15DSL 1400415SL 1-1/2" 1-1/2" 250 PSI
20DSL 1400420SL 2" 2" 250 PSI
30DSL 1400430SL 3" 3" 200 PSI
40DSL 1400440SL 4" 4" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
