BS014 - #14 Beltservice 3 Ply 90 Green Nitrile COS Conveyor Belt
BS014 - #14 Beltservice 3 Ply 90 Green Nitrile COS Conveyor Belt
Beltservice

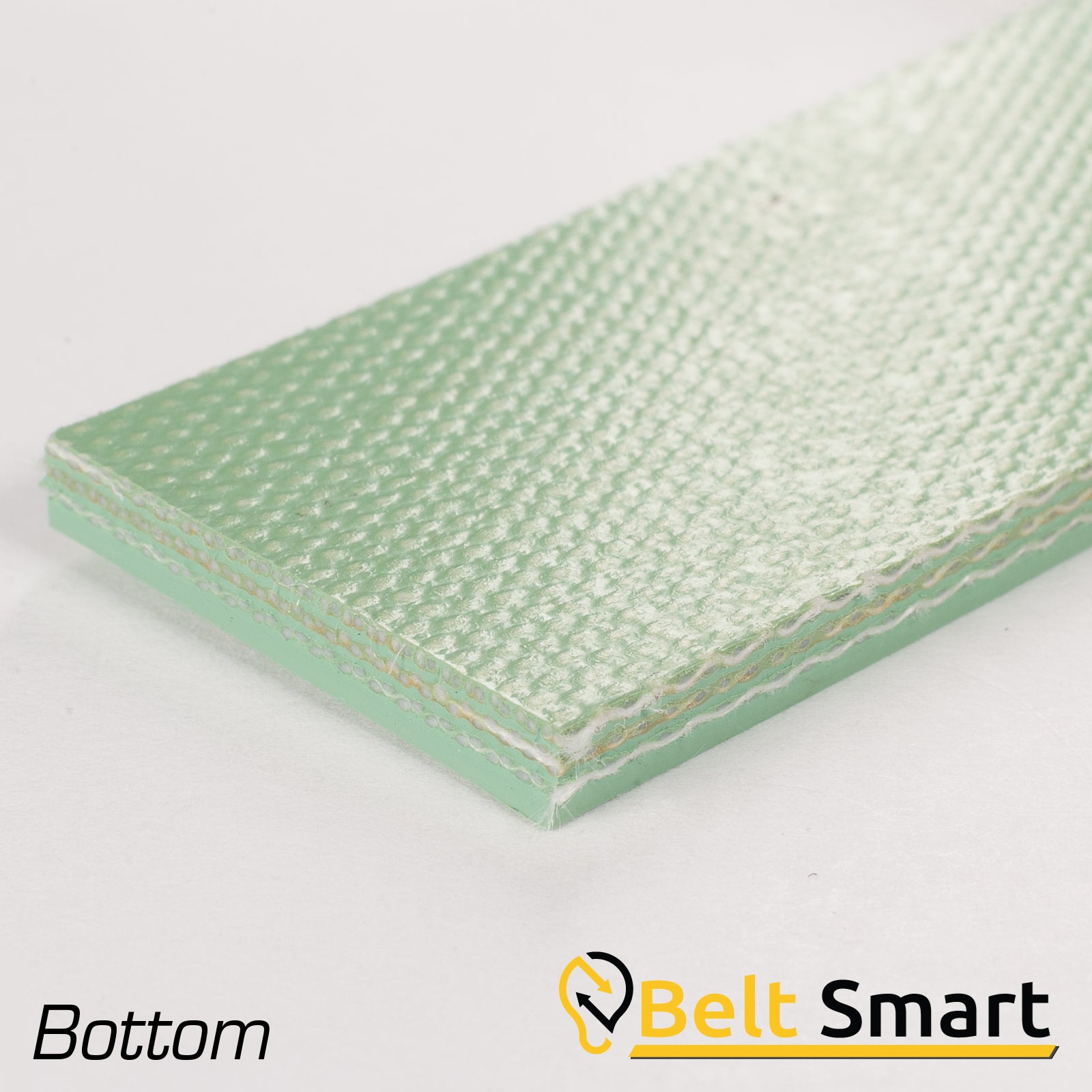

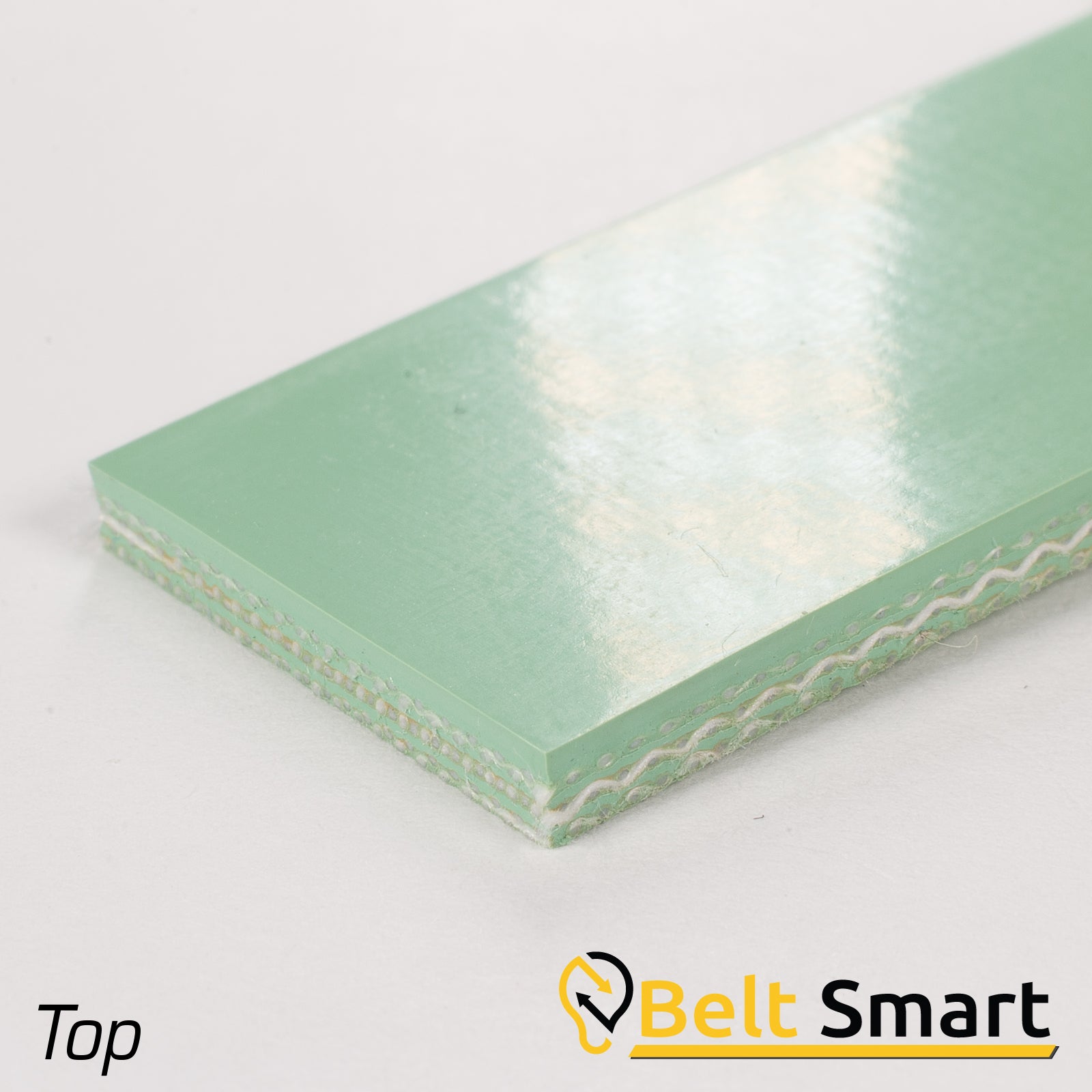

BS014 - #14 Beltservice 3 Ply 90 Green Nitrile COS Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Food handling
  • Inspection lines
  • Fruit and vegetable processing
Features:
  • Green and tan belts are popular on inspection lines because they are less tiresome on the inspectors' eyes.
  • Tan is commonly used in fruit and vegetable processing because of its greater resistance to staining.
  • Both belts feature strong, all-polyester carcasses.
Specifications:
  • FDA accepted
3 Ply 90
Green Nitrile
COS
Pt No.: 14		 3 Ply 150
Tan Nitrile
COS
Pt No.: 15a		 7 Ply 210
Tan Nitrile
COS
Pt No.: 15b
Thickness 3/32" 5/32" 5/16"
Covers 1/32" x FS 3/64" x FS
Carcass 30 lbs. per Ply Polyester 45 lbs. per Ply Polyester 30 lbs. per Ply Polyester
Working Tension
per inch Width		 90 lbs. 135 lbs. 210 lbs.
Approx. Weight
lbs per inch Width		 .051 lbs. .080 lbs. .160 lbs.
Min. Pulley Diameter 2" 2-1/2" 8"
Temperature Range 0 deg. F / 250 deg. F
Clipper Lace #1A #2 #5
Alligator Lace #7 #15 #35
