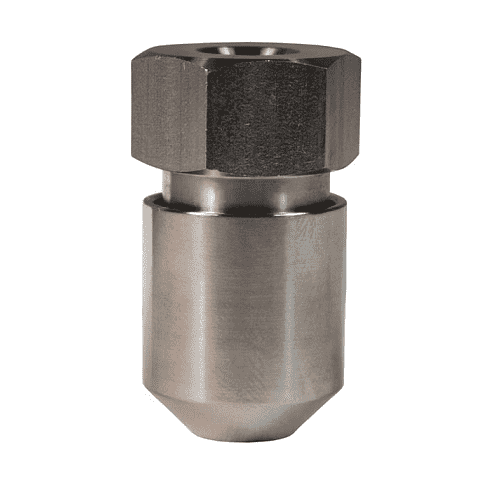

13SLN Dixon Valve 304 Stainless Steel Sanitary Spring Loaded Nut - 5/16"-18 Thread
13SLN Dixon Valve 304 Stainless Steel Sanitary Spring Loaded Nut - 5/16"-18 Thread

13SLN Dixon Valve 304 Stainless Steel Sanitary Spring Loaded Nut - 5/16"-18 Thread

Sale price$71.45
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Lines using PTFE gaskets that are subject to large temperature swings can benefit from this special product. As the PTFE is compressed through the cycling of the lines, the spring load will help keep the connection from leaking.
  • If the lines suffer from vibration and bolted clamps are not an option, refitting single pin clamps with this nut will keep the connections from leaking for a longer time than the standard wing nuts.
  • If you transport material in tanks via truck, the vibrations can loosen the standard single pin clamps. Spring loaded nuts can add a level of insurance to the shipment.
  • Can be used on all wing nut style clamps.
  • Torque to 50 in. lb.
Part Number Thread Dimensions
Weight
(Lbs.)
A B
13SLN 5/16" - 18 1.73" .875" 0.2450

Additional Product Data:

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
