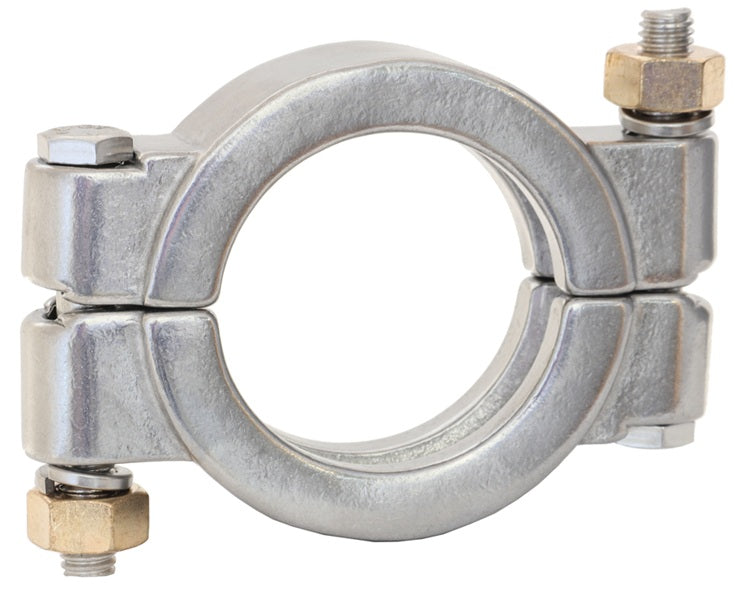

13MHP200 Dixon Valve 304 Stainless Steel Bolted Sanitary Clamp - 2" Tube OD
Dixon

13MHP200 Dixon Valve 304 Stainless Steel Bolted Sanitary Clamp - 2" Tube OD

Sale price$41.31

Dixon Sanitary Fittings Bolted Clamps - 304 Stainless Steel

Product Data:

Material(s):
  • 304 Stainless Steel
Maximum Clamp I.D.:

2"
Notes:
  • Nuts should be tightened to 20 ft. lbs. of torque.
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • All ratings shown are dependent upon related components within the system and proper installation.
Material:
  • 304 Stainless Steel
Part Number Tube OD Service Pressure Rating
@ 70 deg. F		 Service Pressure Rating
@ 250 deg. F		 Dimensions

Weight
(Lbs.)
A B C D
13MHP75 1/2" - 3/4" 1500 PSI 1200 PSI 1.1" 3.0" 1.7" 1.0" 0.9510
13MHP100-150 1" - 1-1/2" 1500 PSI 1200 PSI 2.1" 4.0" 2.7" 1.0" 1.3200
13MHP200 2" 1000 PSI 800 PSI 2.6" 4.5" 3.3" 1.0" 1.4000
13MHP250 2-1/2" 1000 PSI 800 PSI 3.2" 4.9" 3.7" 0.9" 1.5200
13MHP300 3" 1000 PSI 800 PSI 3.7" 5.5" 4.4" 1.0" 1.9200
13MHP400 4" 800 PSI 600 PSI 4.8" 6.5" 5.3" 1.0" 2.2800
13MHP500 5" - - - - - - -
13MHP600 6" 300 PSI 200 PSI 6.9" 8.6" 7.3" 1.1" 3.0500
13MHP800 8" 250 PSI 150 PSI 8.7" - - - 3.7000
13MHP1000 10" 200 PSI 125 PSI 10.8" - - - 4.5500
13MHP1200 12" 150 PSI 100 PSI 12.740" - - - 5.3400

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
