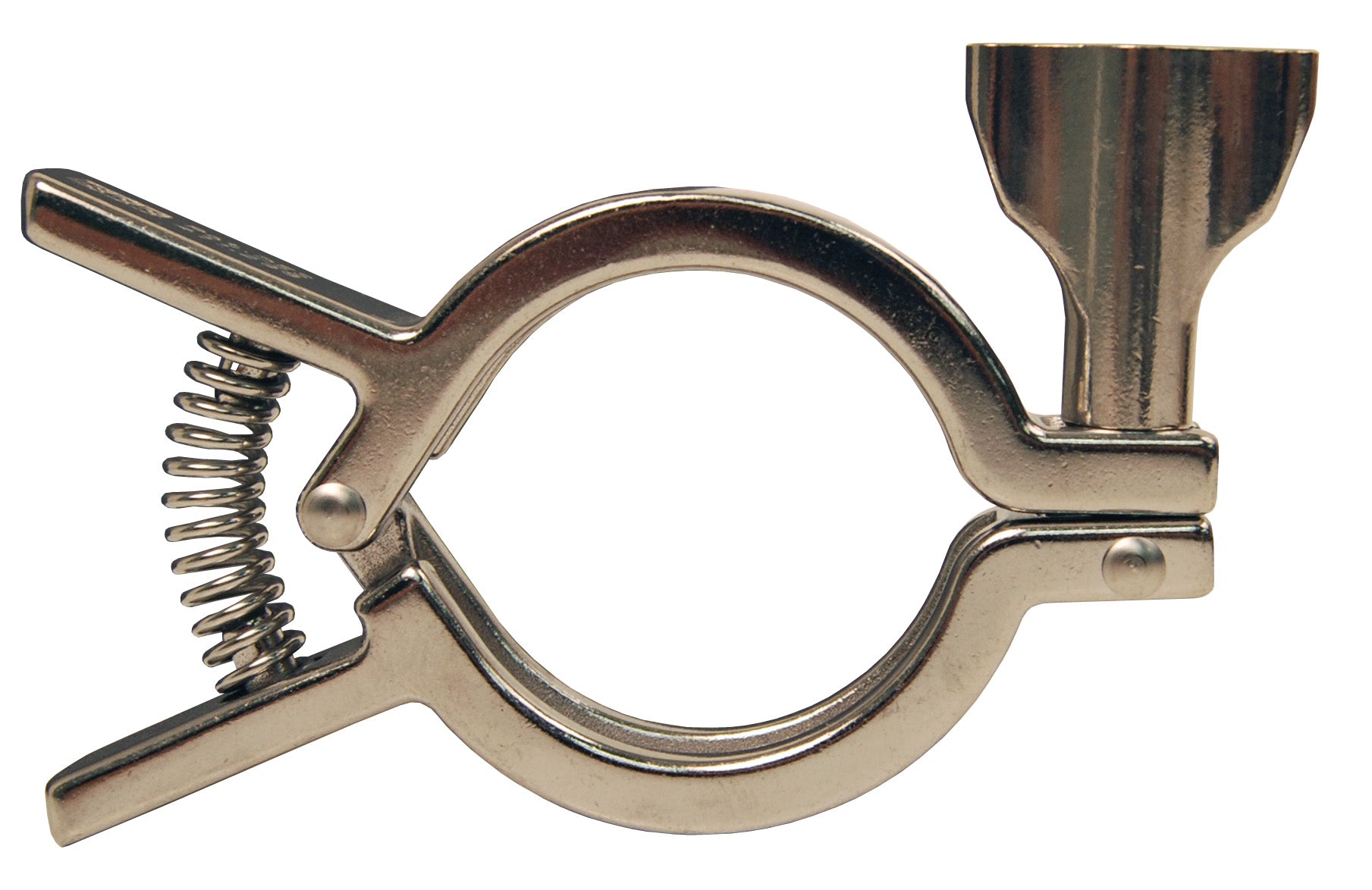

13MHHV-Q400 Dixon Valve 4" Single Pin Squeeze Clamp - Schedule 5 - 304 Stainless Steel

13MHHV-Q400 Dixon Valve 4" Single Pin Squeeze Clamp - Schedule 5 - 304 Stainless Steel

Sale price$88.60

Dixon Sanitary Fittings Single Pin Squeeze Clamp
Buy More, Save More!
Quantity Price Each
5–19 $83.28
20–59 $75.31
60+ $66.45
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • 304 Stainless Steel
Maximum Clamp I.D.:

4"
Notes:
  • Wingnut tightened to 25 in. lb. of torque
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • All ratings shown are dependent upon related components within the system and proper installation.
Material:
  • 304 Stainless Steel, Schedule 5
Part Number Size Pressure Rating
13MHHV-Q400 4" 300 PSI at 70°F
150 PSI at 250°F

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
