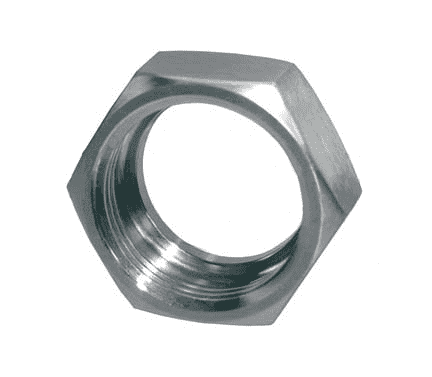

13H-G100 Dixon Valve 304 Stainless Steel Sanitary Bevel Seat Union Hex Nut - 1" Tube OD
Dixon

13H-G100 Dixon Valve 304 Stainless Steel Sanitary Bevel Seat Union Hex Nut - 1" Tube OD

Sale price$20.28

Dixon Sanitary Bevel Seat Hex Nuts - Union Hex Nuts - 304 Stainless Steel (CF8)

Product Data:

Shape:

No Orientation

Material(s):
  • 304 Stainless Steel
Features:
  • 400 PSI maximum.
Part Number Tube OD Dimensions Weight (Lbs.)
A B
13H-G100 1" .906" 1.812" 0.3000
13H-G150 1-1/2" .968" 2.406" 0.5330
13H-G200 2" 1.062" 3.000" 0.8250
13H-G250 2-1/2" 1.187" 3.594" 1.2900
13H-G300 3" 1.281" 4.188" 1.8100
13H-G400 4" 1.500" 5.438" 3.4000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
