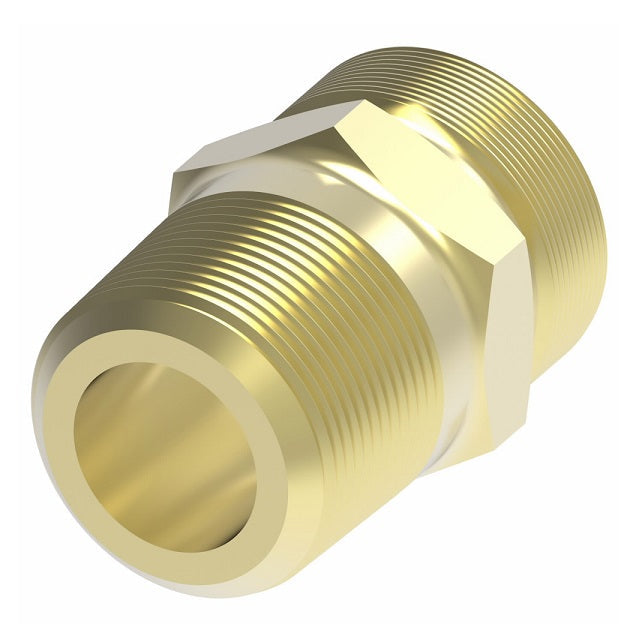

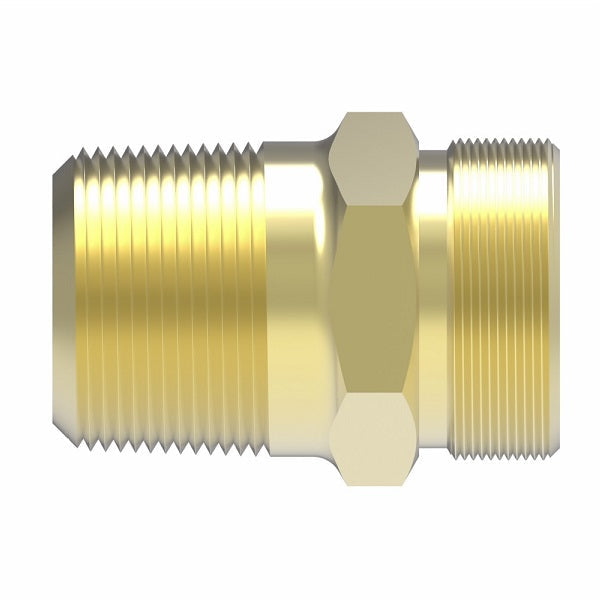

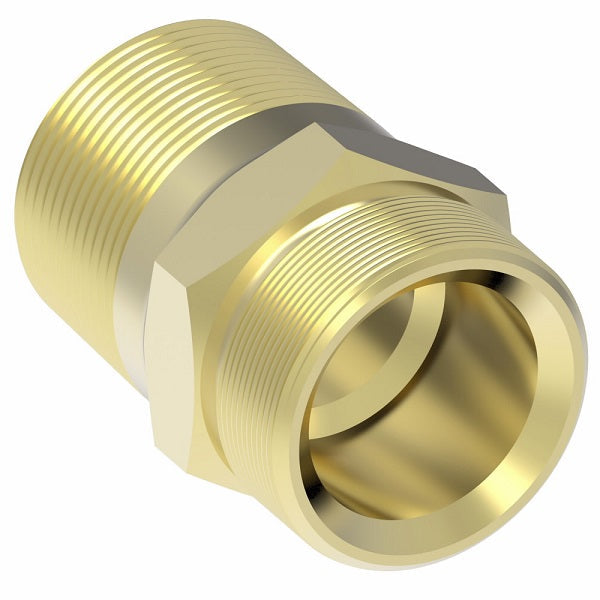

1390X6X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -08 Male NPTF | Brass
1390X6X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -08 Male NPTF | Brass
1390X6X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -08 Male NPTF | Brass

1390X6X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -08 Male NPTF | Brass

Sale price$10.21

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Adapter - Male UNF x -04 Male NPTF - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $9.60
40–79 $8.68
80+ $7.66
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Brass
Compatible Series:
  • EC038 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number ABS Thread Size Pipe Size Overall Length ABS Thread Size Hex
1390X6 3/8" 1/4" 1.18" 3/4-20 3/4"
1390X6X6 3/8" 3/8" 1.18" 3/4-20 3/4"
1390X6X8 3/8" 1/2" 1.37" 3/4-20 7/8"
1390X8 1/2" 3/8" 1.18" 7/8-20 7/8"
1390X8X8 1/2" 1/2" 1.37" 7/8-20 7/8"

Note: Drawings may differ from actual parts.
