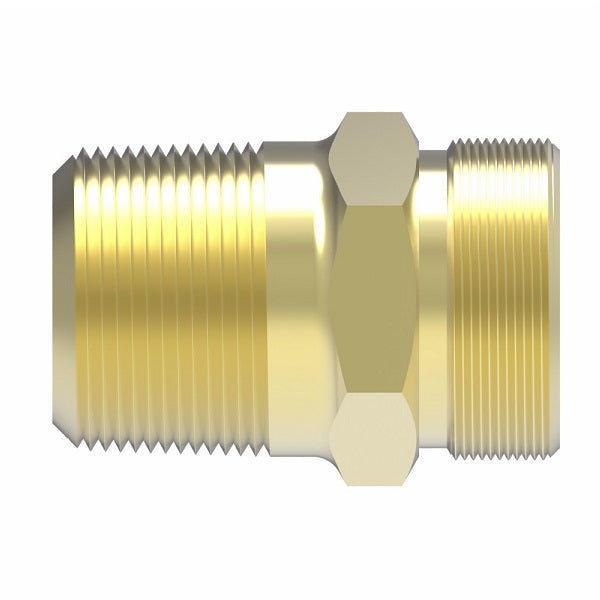

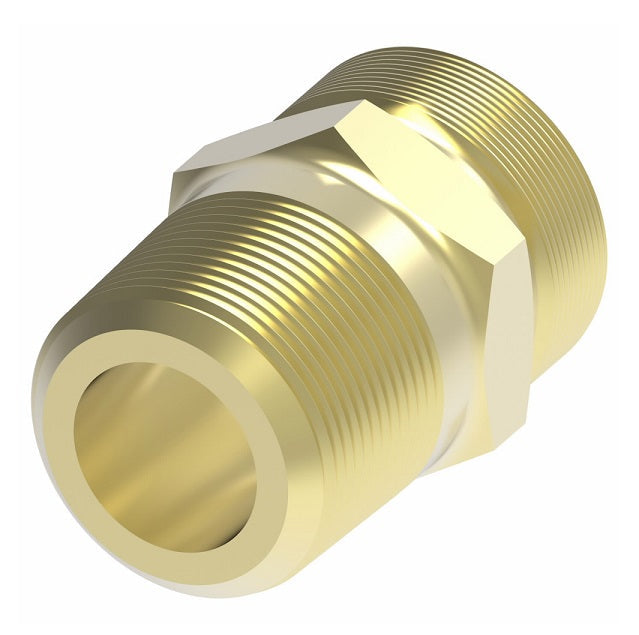

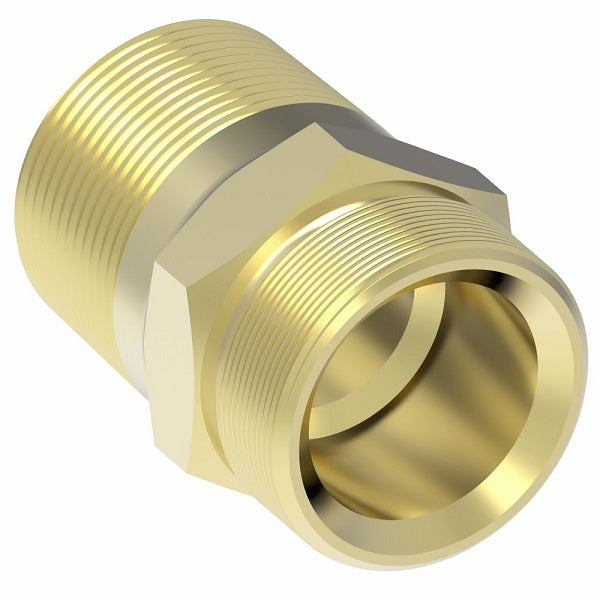

1390X6 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -04 Male NPTF | Brass
1390X6 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -04 Male NPTF | Brass
1390X6 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -04 Male NPTF | Brass

1390X6 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -04 Male NPTF | Brass

Minimum Order Quantity: 5 Units

Sale price$4.47
Buy more, save moreDiscounts applied in cart/checkout.
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number ABS Thread Size Pipe Size Overall Length ABS Thread Size Hex
1390X6 3/8" 1/4" 1.18" 3/4-20 3/4"
1390X6X6 3/8" 3/8" 1.18" 3/4-20 3/4"
1390X6X8 3/8" 1/2" 1.37" 3/4-20 7/8"
1390X8 1/2" 3/8" 1.18" 7/8-20 7/8"
1390X8X8 1/2" 1/2" 1.37" 7/8-20 7/8"

Note: Drawings may differ from actual parts.

Additional Product Data:

Shape:

Straight

Material(s):
  • Brass
Compatible Series:
  • EC038 Series
