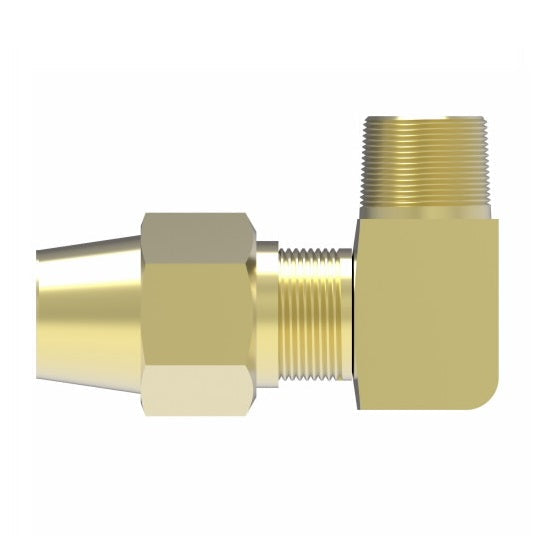

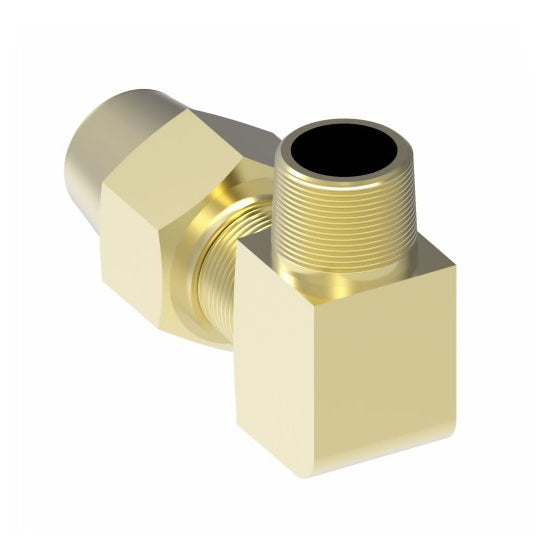

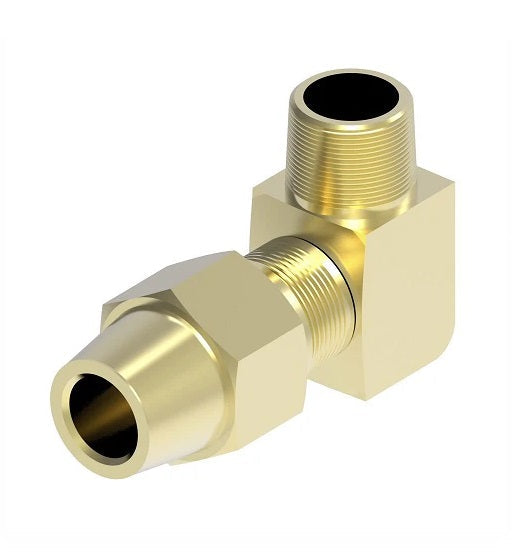

1369X4X4 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 90° Elbow | 1/4" Tube OD x 1/4" Male Pipe | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.59 |
| 40–79 | $6.86 |
| 80+ | $6.05 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Brass Part Number |
Brass With Sealant Part Number |
Brass Body Only Part Number |
Tube O.D. | Male Pipe Thread | D | D1 | M | N |
| 1369X4 | - | B1369X4 | 1/4" | 1/8" | 0.188" | 0.188" | 0.63" | 0.67" |
| 1369X4X4 | - | B1369X4X4 | 1/4" | 1/4" | 0.190" | 0.312" | 0.69" | 0.88" |
| 1369X6X2 | 1369X6X2Z | B1369X6X2 | 3/8" | 1/8" | 0.312" | 0.188" | 0.73" | 0.75" |
| 1369X6 | 1369X6Z | B1369X6 | 3/8" | 1/4" | 0.317" | 0.312" | 0.80" | 0.93" |
| 1369X6X6 | 1369X6X6Z | B1369X6X6 | 3/8" | 3/8" | 0.317" | 0.406" | 0.85" | 0.92" |
| 1369X6X8 | - | - | 3/8" | 1/2" | 0.317" | 0.562" | 0.95" | 1.11" |
| 1369X8X4 | - | - | 1/2" | 1/4" | 0.409" | 0.313" | 0.87" | 1.00" |
| 1369X8 | 1369X8Z | B1369X8 | 1/2" | 3/8" | 0.409" | 0.409" | 0.94" | 1.00" |
| 1369X8X8 | - | B1369X8X8 | 1/2" | 1/2" | 0.409" | 0.531" | 1.04" | 1.19" |
| 1369X10X6 | - | B1369X10X6 | 5/8" | 3/8" | 0.534" | 0.406" | 1.01" | 1.06" |
| 1369X10 | 1369X10Z | B1369X10 | 5/8" | 1/2" | 0.534" | 0.531" | 1.10" | 1.25" |
