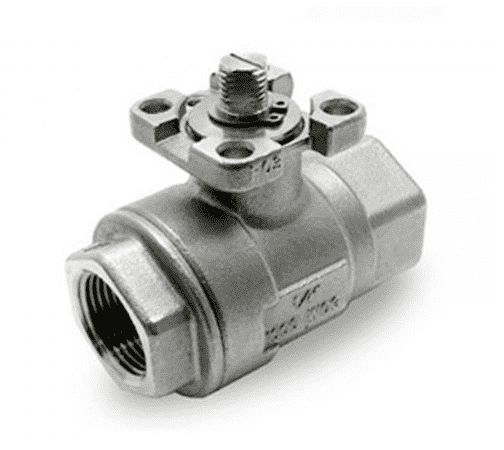

134D41 by RuB Inc. | Full Port Actuatable Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Stainless Steel | Pack of 8

134D41 by RuB Inc. | Full Port Actuatable Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Stainless Steel | Pack of 8

Sale price$701.38

RuB Inc. - Stainless Steel Ball Valves - S.134 Series - Female NPT x Female NPT - Full Port Stainless Steel Actuatable

Package Quantity: 8 Units

Buy More, Save More!
Quantity Price Each
5–14 $659.30
15–29 $596.17
30+ $526.04
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Female NPT
  • Some Ends Match
Material(s):
  • Stainless Steel
Quality:
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • Silicone-free lubricant on all seals
  • NACE compliance MR-01-75
Body:
  • Designed and tested for ANSI B16.34
  • CF8M stainless steel housing
Stem:
  • Blowout-proof stem
Sealing:
  • Reinforced PTFE seats
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • 100% full port for maximum flow
Handle:
  • AISI 316 stainless trim
  • Convertible for manual or actuated operation
  • ISO 5211 actuator mounting pad allows direct mounting of RuB electric and pneumatic actuators, with no bracket or coupling required.
Working Pressure & Temperature:
  • 1000 PSI cold working pressure
  • 150 PSI WSP steam rating
  • 2x 10-2 torr vacuum rating
  • **150 psig non-shock working steam pressure. Not suitable for throttling steam.
  • -50°F/ +450°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN H1 A B S F
(ISO 5211)
134D41 1/2" 1/2" 0.56" 1.40" 2.60" 0.26" 0.35" F03
132E41 3/4" 3/4" 0.81" 1.56" 2.99" 0.28" 0.35" F03
134F41 1" 1" 1" 1.84" 3.54" 0.319" 0.43" F04/F05
134G41 1-1/4" 1-1/4" 1.25" 2" 3.94" 0.319" 0.43" F04/F05
134H41 1-1/2" 1-1/2" 1.5" 2.3" 4.41" 0.319" 0.43" F04/F05
134I41 2" 2" 1.97" 2.8" 5" 0.382" 0.55" F05

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
