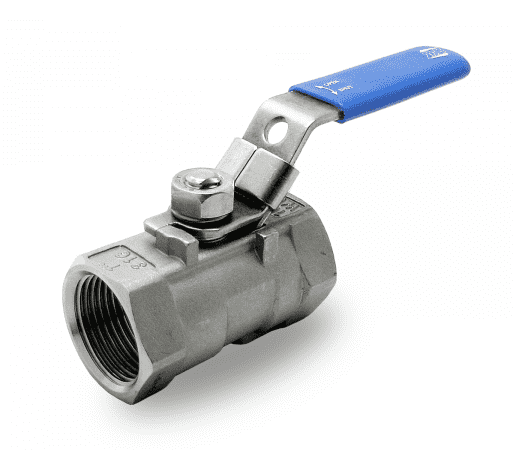

131H41 by RuB Inc. | Reduced Port Ball Valve | 1-1/2" Female NPT x 1-1/2" Female NPT | with Locking Blue Handle | Stainless Steel | Pack of 6

131H41 by RuB Inc. | Reduced Port Ball Valve | 1-1/2" Female NPT x 1-1/2" Female NPT | with Locking Blue Handle | Stainless Steel | Pack of 6

Sale price$481.69

RuB Inc. - Stainless Steel Ball Valves - S.131 Series - Female NPT x Female NPT - Reduced Port with locking Blue Handle

Package Quantity: 6 Units

Buy More, Save More!
Quantity Price Each
5–14 $452.79
15–29 $409.44
30+ $361.27
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Female NPT
  • 1-1/2in Female NPT
  • Some Ends Match
Material(s):
  • Stainless Steel
Quality:
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Test standard API 598
  • NACE compliance MR-01-75
  • Handle stops on body to avoid stresses at stem
Body:
  • CF8M stainless steel body
Stem:
  • Blowout-proof stainless steel stem
Sealing:
  • PTFE seats
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Handle:
  • Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • 1000 PSI non-shock cold working pressure
  • 150 PSI WSP steam rating
  • 2x 10-2 torr vacuum rating
  • *150 psig non-shock working steam pressure. Not suitable for throttling steam.
  • -50°F/ +450°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D d L H B Ch
131B41 1/4" 1/4" 0.197" 1.535" 1.370" 2.756" 0.669
131C41 3/8" 3/8" 0.276" 1.732" 1.390" 3.110" 0.827
131D41 1/2" 1/2" 0.362" 2.205" 1.807" 3.661" 0.984
131E41 3/4" 3/4" 0.492" 2.323" 1.846" 3.622" 1.260
131F41 1" 1" 0.591" 2.795" 1.862" 4.409" 1.496
131G41 1-1/4" 1-1/4" 0.787" 3.110" 2.189" 4.409" 1.929
131H41 1-1/2" 1-1/2" 0.965" 3.268" 2.280" 5.315" 2.087
131I41 2" 2" 1.260" 3.937" 2.547" 5.315" 2.559

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
