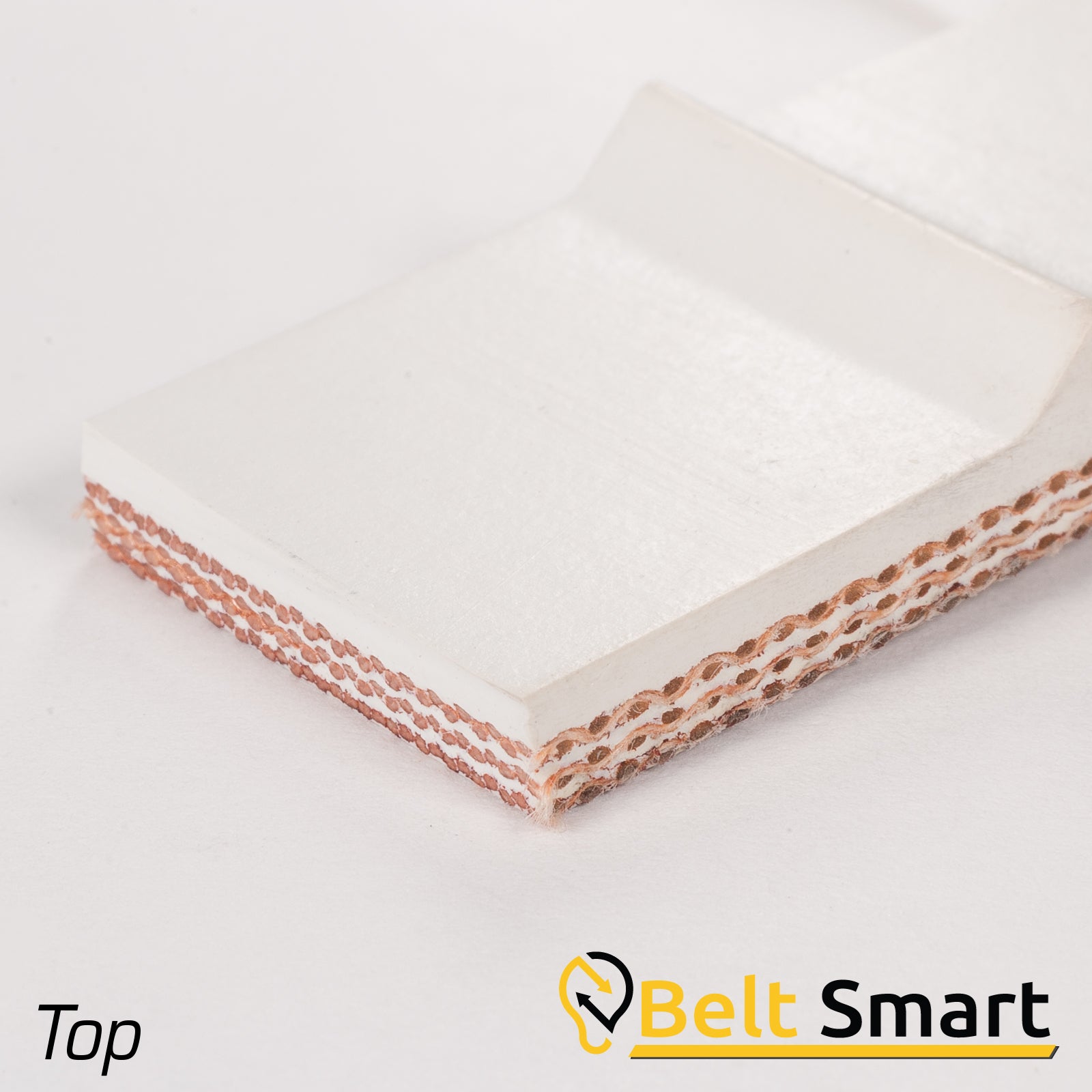

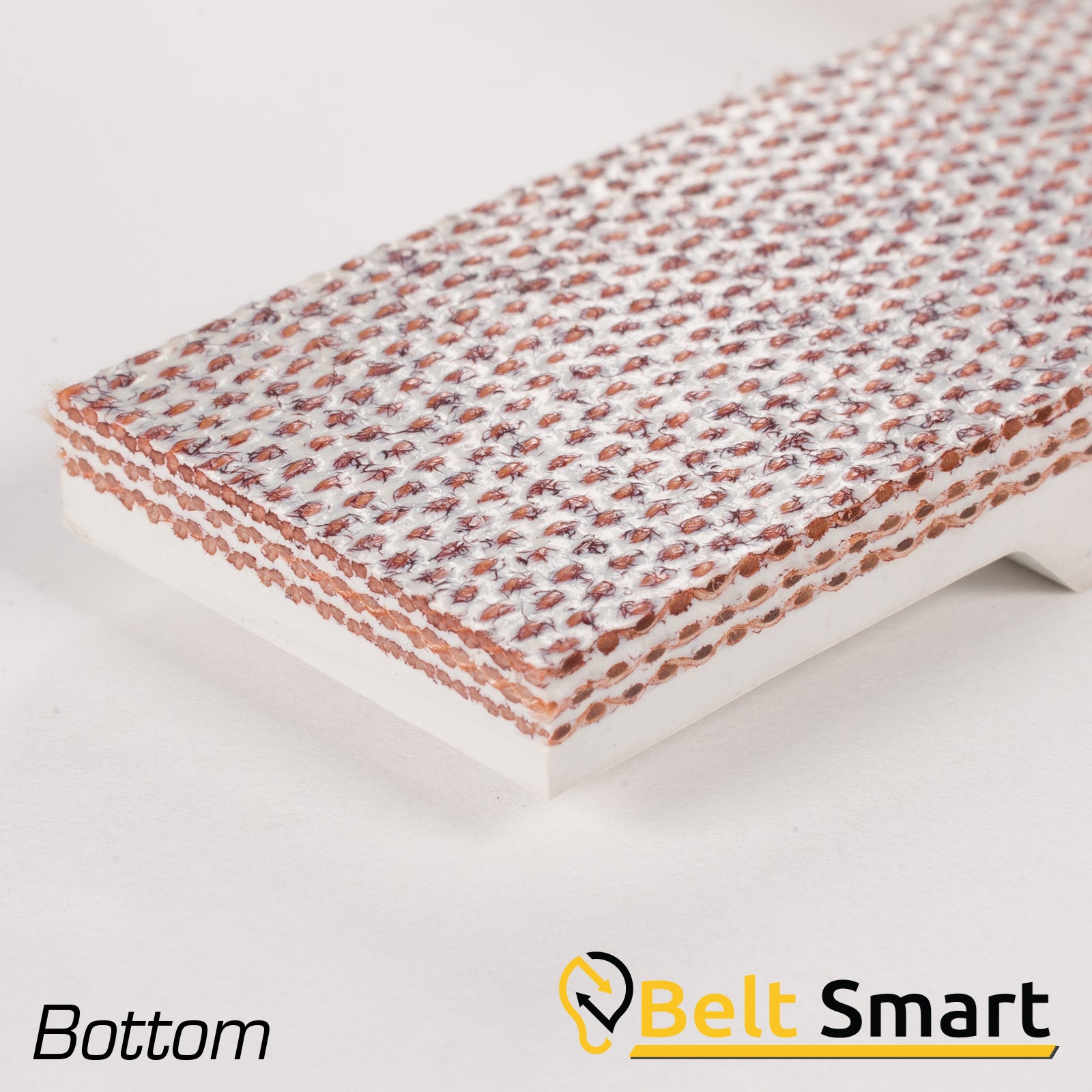

BS013 - #13 Beltservice 3 Ply Poly 150 White Nitrile Meatcleat Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Food handling Incline conveying Packing plants Food processing plants
Features:

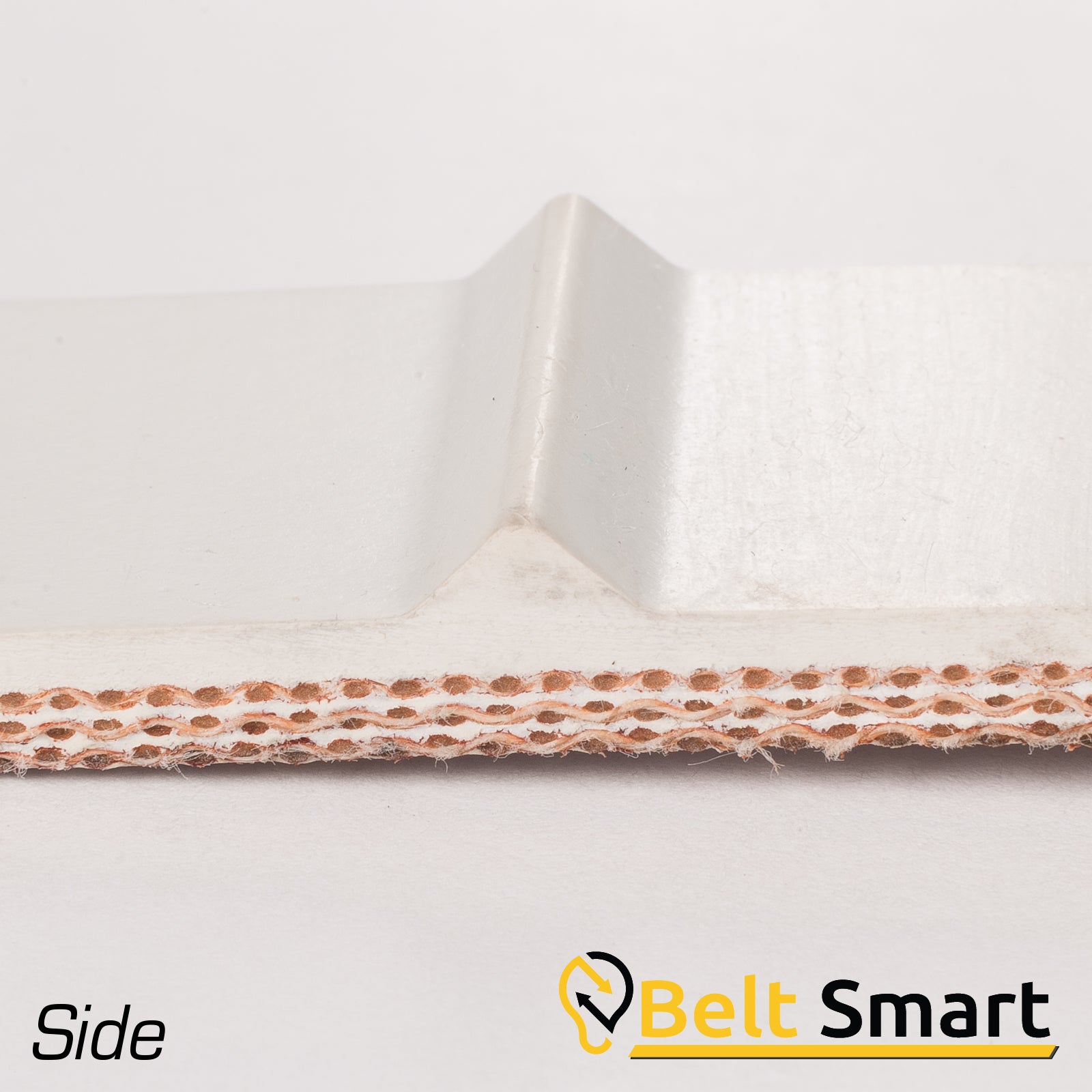

This ribbed mini-cleated belt All surface planes are smooth and easily cleaned Inverted V-shaped cleats are 1/8" high and are spaced straight across on 1" centers
Specifications:
The belt is fully accepted by FDA and MID.

	3 Ply Poly 150 White Nitrile Meatcleat Pt No.: 9
Thickness	1/4"
Covers	1/8" V-Rib on 1" CC x FS
Carcass	45 lbs. per Ply Polyester
Working Tension per inch Width	135 lbs.
Approx. Weight lbs per inch Width	.102 lbs.
Min. Pulley Diameter	2-1/2"
Temperature Range	0 deg. F / 250 deg. F
Clipper Lace	#1A
Alligator Lace	#7
