13/32" (-8) F204 by Couplamatic | -08 Refrigerant Hose | Two Fiber Braid | Internal Nylon Barrier | R12 & R134A Compatible | 13/32" ID | 725ft
Package Quantity: 725 FT
Buy more, save moreDiscounts applied in cart/checkout.
Refrigerant Hose — R12 / R134a

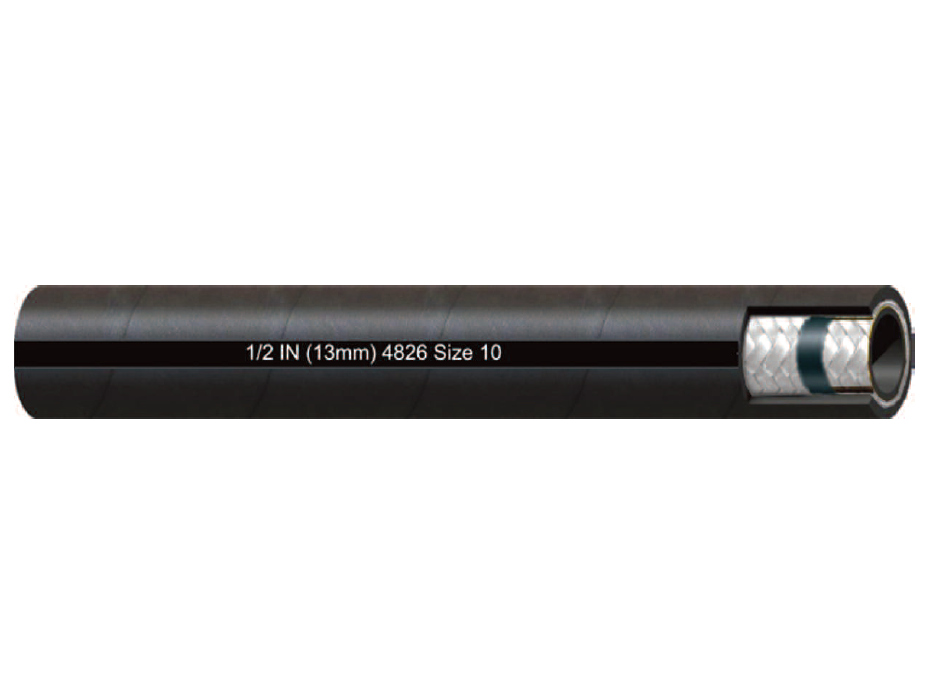

F204 Refrigerant Hose with Internal Nylon Barrier
Two fiber braid refrigerant hose with an internal nylon barrier that holds refrigerant in the line — compatible with both R12 and R134a mobile air conditioning systems.
1
What is this hose used for?
- Air Conditioning
- Refrigerant
2
What are the key specifications?
Cover
Rubber
Reinforcement
Two Fiber Braid, Internal Nylon Barrier
Temperature
-22°F to +257°F (-30°C to +125°C)
Size Range
5/16" (-06) to 5/8" (-12)
3
What are the main product features?
- Internal nylon barrier — dramatically reduces refrigerant permeation through the hose wall.
- R12 and R134a compatible — one hose covers both refrigerants.
- Two fiber braids — flexible enough for tight engine bay routing.
- -22°F to +257°F — covers under-hood temperature extremes.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 5/16" (6) F204 | 5/16"(-06) | 0.750" | 500 lbs. | 2,000 lbs. | 4" | 20 lbs. | 825ft |
| 13/32" (-8) F204 | 13/32"(-08) | 0.910" | 500 lbs. | 2,000 lbs. | 5" | 28 lbs. | 725ft |
| 1/2" (-10) F204 | 1/2"(-10) | 1.000" | 500 lbs. | 2,000 lbs. | 5" | 33 lbs. | 700ft |
| 5/8" (-12) F204 | 5/8"(-12) | 1.130" | 350 lbs. | 1,750 lbs. | 6" | 38 lbs. | 525ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
500
Cover Construction:
Specifications and Approvals:
