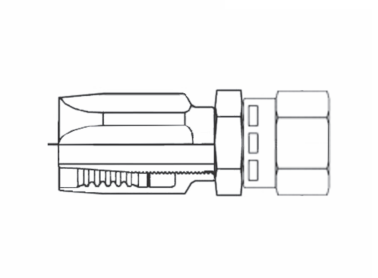

12R5-12FJ by Couplamatic | R5 Reusable Coupling | 5/8" Hose ID x 1-1/16-12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
Reusable — Field Attachable
20R5 Reusable Coupling — JIC 37°, Female Swivel, Straight
20R5 is the JIC 37°, Female Swivel, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.
1
What are the main product features?
- Non-Mandrel and No Skive
- Trivalent Zinc Plating
- Field attachable — assembles with hand tools; no crimp machine needed.
- Reusable — the coupling can be removed and reinstalled on a new length of hose.
- Ideal for field repair — keeps equipment running where a crimper is not available.
2
Which sizes are available?
| Part Number | Hose ID | Hose Dash Size | Thread Size | Tube OD | Hose Type |
|---|---|---|---|---|---|
| 4R5-4FJ | 3/16" | -04 | 7/16-20 | 1/4" | 100R5 |
| 5R5-5FJ | 1/4" | -05 | 1/2-20 | 5/16" | 100R5 |
| 6R5-6FJ | 5/16" | -06 | 9/16-18 | 3/8" | 100R5 |
| 8R5-8FJ | 13/32" | -08 | 3/4-16 | 1/2" | 100R5 |
| 10R5-10FJ | 1/2" | -10 | 7/8-14 | 5/8" | 100R5 |
| 12R5-12FJ | 5/8" | -12 | 1-1/16-12 | 3/4" | 100R5 |
| 16R5-16FJ | 7/8" | -16 | 1-5/16-12 | 1" | 100R5 |
| 20R5-20FJ | 1-1/8" | -20 | 1-5/8-12 | 1-1/4" | 100R5 |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
