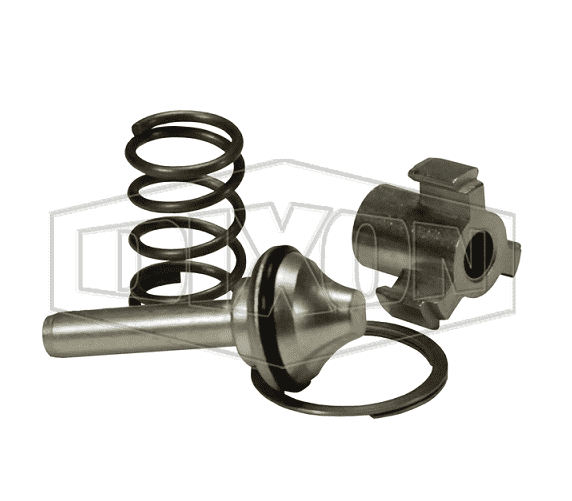

12H-SRKIT Dixon Valve H-Series ISO-B Hydraulic Quick Disconnect Repair Kit - For: 303 Stainless Steel Couplers - 1-1/2" Body Size - Nitrile
Dixon Quick Disconnect Couplings - H-Series Hydraulic Couplings - H-Series ISO-B Repair Kits
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $72.76 |
| 20–59 | $65.79 |
| 60+ | $58.05 |
Discounts applied in cart/checkout.
Product Data:
| Compatibility & Interchange Data: | |||
|---|---|---|---|
|
|||
| Applications: | |||
|
|||
| Safety Notes: | |||
|
| Part Number | Body Size | Coupler Type | Seal Material | Repair Kit Contents (for one coupler or nipple) |
|---|---|---|---|---|
| 2H-RKIT | 1/4" | Steel | Nitrile | Steel valve assembly and retaining ring |
| 2H-BRKIT | 1/4" | Brass | Nitrile | Brass valve assembly and retaining ring |
| 2H-SRKIT | 1/4" | 303 Stainless | Nitrile | 303 SS valve assembly and retaining ring |
| 2H-SSRKIT | 1/4" | 316 Stainless | Nitrile | 316 SS valve assembly and retaining ring |
| 3H-RKIT | 3/8" | Steel | Nitrile | Steel valve assembly and retaining ring |
| 3H-BRKIT | 3/8" | Brass | Nitrile | Brass valve assembly and retaining ring |
| 3H-SRKIT | 3/8" | 303 Stainless | Nitrile | 303 SS valve assembly and retaining ring |
| 3H-SSRKIT | 3/8" | 316 Stainless | Nitrile | 316 SS valve assembly and retaining ring |
| 4H-RKIT | 1/2" | Steel | Nitrile | Steel valve assembly and retaining ring |
| 4H-BRKIT | 1/2" | Brass | Nitrile | Brass valve assembly and retaining ring |
| 4H-SRKIT | 1/2" | 303 Stainless | Nitrile | 303 SS valve assembly and retaining ring |
| 4H-SSRKIT | 1/2" | 316 Stainless | Nitrile | 316 SS valve assembly and retaining ring |
| 6H-RKIT | 3/4" | Steel | Nitrile | Steel valve assembly and retaining ring |
| 6H-BRKIT | 3/4" | Brass | Nitrile | Brass valve assembly and retaining ring |
| 6H-SRKIT | 3/4" | 303 Stainless | Nitrile | 303 SS valve assembly and retaining ring |
| 6H-SSRKIT | 3/4" | 316 Stainless | Nitrile | 316 SS valve assembly and retaining ring |
| 8H-RKIT | 1" | Steel | Nitrile | Steel valve assembly and retaining ring |
| 8H-BRKIT | 1" | Brass | Nitrile | Brass valve assembly and retaining ring |
| 8H-SRKIT | 1" | 303 Stainless | Nitrile | 303 SS valve assembly and retaining ring |
| 8H-SSRKIT | 1" | 316 Stainless | Nitrile | 316 SS valve assembly and retaining ring |
| 10H-RKIT | 1-1/4" | Steel | Nitrile | Steel valve assembly and adapter O-ring |
| 10H-BRKIT | 1-1/4" | Brass | Nitrile | Brass valve assembly and adapter O-ring |
| 10H-SRKIT | 1-1/4" | 303 Stainless | Nitrile | 303 SS valve assembly and adapter O-ring |
| 10H-SSRKIT | 1-1/4" | 316 Stainless | Nitrile | 316 SS valve assembly and adapter O-ring |
| 12H-RKIT | 1-1/2" | Steel | Nitrile | Steel valve assembly and adapter O-ring |
| 12H-BRKIT | 1-1/2" | Brass | Nitrile | Brass valve assembly and adapter O-ring |
| 12H-SRKIT | 1-1/2" | 303 Stainless | Nitrile | 303 SS valve assembly and adapter O-ring |
| 12H-SSRKIT | 1-1/2" | 316 Stainless | Nitrile | 316 SS valve assembly and adapter O-ring |
