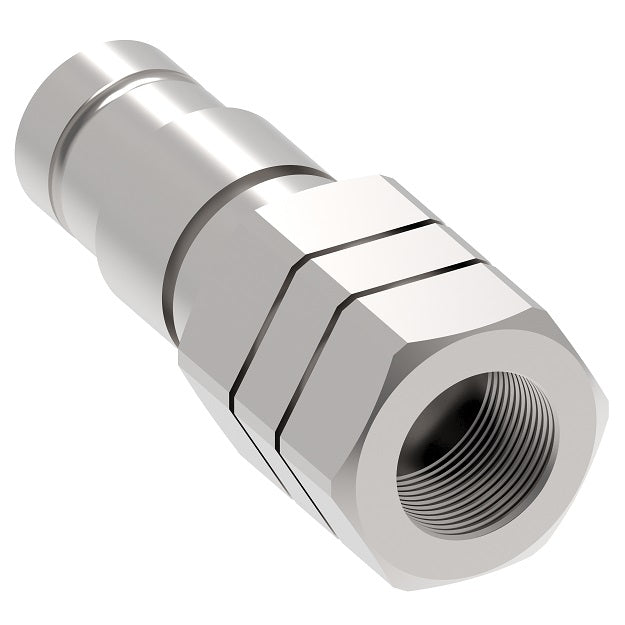

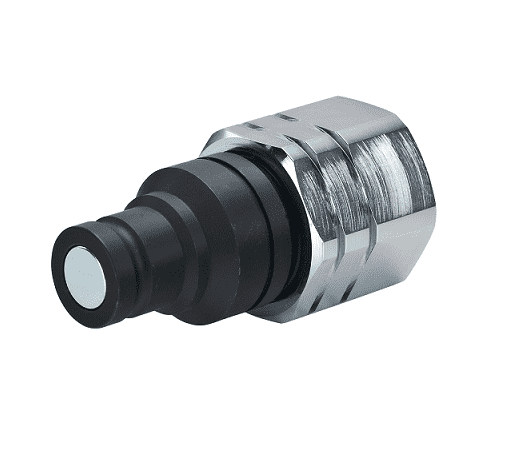

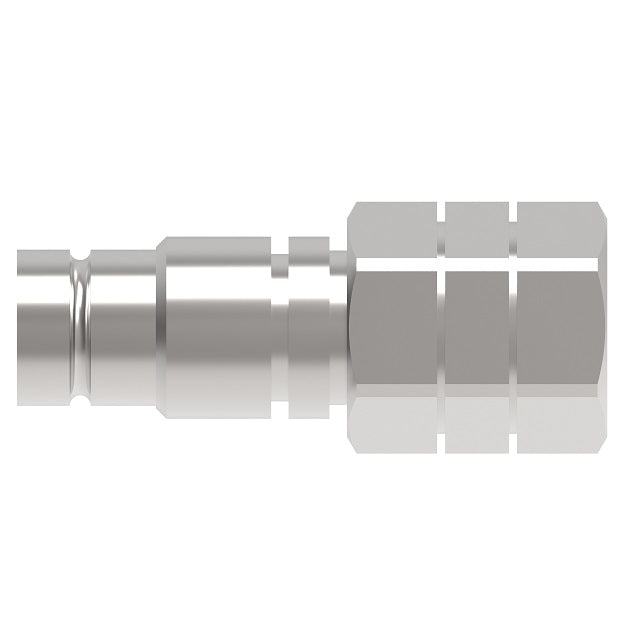

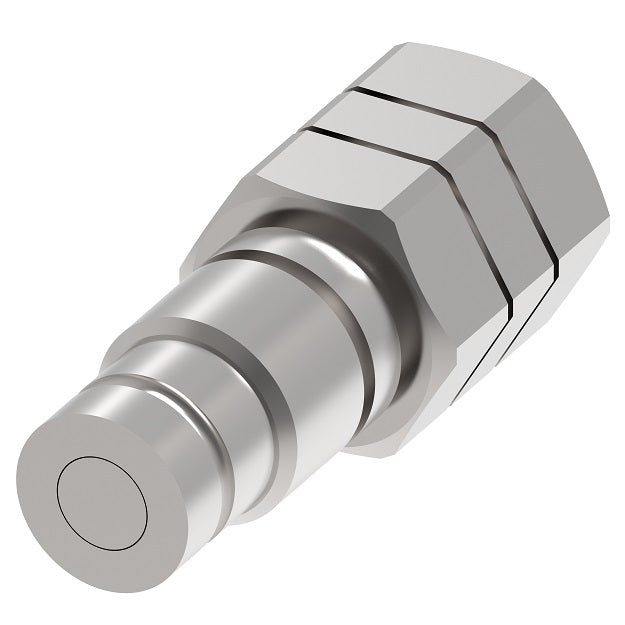

12FFPCUP56UN Hansen® by Danfoss | Quick Disconnect Coupling | FFCUP Series | 9/16-18 Female UNF SAE J1926-1 x 1/2" ISO 16028 Connect Under Pressure Flat Face | Plug | NBR+AU Seal | Steel
12FFPCUP56UN Hansen® by Danfoss | Quick Disconnect Coupling | FFCUP Series | 9/16-18 Female UNF SAE J1926-1 x 1/2" ISO 16028 Connect Under Pressure Flat Face | Plug | NBR+AU Seal | Steel
12FFPCUP56UN Hansen® by Danfoss | Quick Disconnect Coupling | FFCUP Series | 9/16-18 Female UNF SAE J1926-1 x 1/2" ISO 16028 Connect Under Pressure Flat Face | Plug | NBR+AU Seal | Steel
12FFPCUP56UN Hansen® by Danfoss | Quick Disconnect Coupling | FFCUP Series | 9/16-18 Female UNF SAE J1926-1 x 1/2" ISO 16028 Connect Under Pressure Flat Face | Plug | NBR+AU Seal | Steel

12FFPCUP56UN Hansen® by Danfoss | Quick Disconnect Coupling | FFCUP Series | 9/16-18 Female UNF SAE J1926-1 x 1/2" ISO 16028 Connect Under Pressure Flat Face | Plug | NBR+AU Seal | Steel

Sale price$142.88
Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • Push to connect.
  • Connect under residual pressure.
  • Utilizes FF Series dust caps.
Applications & Markets:
  • Connection to Hydraulic pumps, jacks, distributors and accessories
  • Hydraulic Circuits
  • Material Handling
  • Construction
  • Agriculture
  • Iron and Steel Industry
  • Railway
  • Industrial Plants
Materials:
  • Standard Material: High-resistant carbon steel with Dura-Kote™ plating, which offers a whole new level of corrosion resistance with minimum 720 hours RR protection.
  • Dura-Kote™ plating is: Nickel-free, solvent-free, and Meets Global RoHS, ELV and REACH requirements.
  • Standard seal material: NBR (Nitrile) + AU (Polyurethane) (Max Operating Temp: -25°C +100°C/-13°F +212°F**).
Specifications:
  • Meets dimensional requirements of ISO 16028.
European Pressure Equipment Directive:
  • Designed and manufactured in accordance with Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU.
Connect Under Pressure Operating Guidelines:
  • The plug can be connected against 350 bar/5075 psi residual pressure to sockets/females meeting ISO 16028 standard requirements.
  • Plug only is under pressure while connected.
  • During the connection phase, the socket must not be under pressure.
  • Disconnection under pressure is strictly forbidden.
  • Connection under pressure may require a few seconds: the force to connect must be maintained during this lapse of time.

**For reference only, based on Danfoss recommended temperatures.

Body
Size		 ISO
Size*		 Nominal Flow
Diameter		 Max. Operating
Pressure		 Min. Burst
Pressure		 Rated
Flow**		 Air
Inclusion		 Fluid
Loss		 Force to
Connect
3/8" 10mm 8.6mm 350 bar 5,075 psi 1,400 bar 20,300 psi 29.4 lpm 7.76 gpm 0.010 ml-cc 0.006 ml-cc 350 N 79 lbf
1/2" 12.5mm 11mm 350 bar 5,075 psi 1,400 bar 20,300 psi 46.8 lpm 12.36 gpm 0.013 ml-cc 0.012 ml-cc 270 N 60.7 lbf

* The ISO size corresponds to the internal diameter of the hose or the external diameter of the rigid tube(as defined in ISO 4397 Standard)
** Indicated values refer to a 1 bar/14.5 psi pressure drop
Plug/Male (Figure 1)
FFCUP Series | Plugs
Steel
Part Number		 Body Size ISO Size Nominal Flow Diameter Type Thread Figure Dimensions
NBR+AU Seal A B C D Hex
10FFPCUP37 3/8" 10mm 8.6mm Plug/Male 3/8-18 Female NPT 1 2.89"
(73.5mm)		 0.74"
(18.7mm)		 1.55"
(39.5mm)		 2.28"
(58.0mm)		 1.41"
(36mm)
10FFPCUP50 3/8" 10mm 8.6mm Plug/Male 1/2-14 Female NPT 1 2.89"
(73.5mm)		 0.74"
(18.7mm)		 1.55"
(39.5mm)		 2.28"
(58.0mm)		 1.41"
(36mm)
12FFPCUP50 1/2" 12,5mm 11mm Plug/Male 1/2-14 Female NPT 1 3.03"
(77mm)		 0.96"
(24,52mm)		 1.55"
(39,5mm)		 2.36"
(60mm)		 1.41"
(36mm)
12FFPCUP56UN 1/2" 12,5mm 11mm Plug/Male 9/16-18 Female UNF SAE J1926-1 1 2.87"
(73mm)		 0.96"
(24,52mm)		 1.55"
(39,5mm)		 2.20"
(56mm)		 1.41"
(36mm)
12FFPCUP75UN 1/2" 12,5mm 11mm Plug/Male 3/4-16 Female UNF SAE J1926-1 1 3.03"
(77mm)		 0.96"
(24,52mm)		 1.55"
(39,5mm)		 2.36"
(60mm)		 1.41"
(36mm)

Additional Product Data:

Brand:
  • Hansen
Series:
  • FFCUP Series
Shape:

Straight
