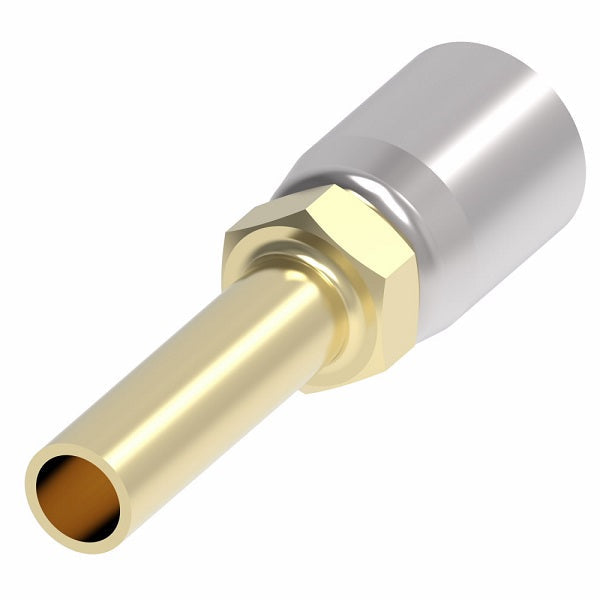

12E-T62 Weatherhead by Danfoss | Everflex E Series | Straight Tube Crimp Fitting | -12 Tube Size x -12 Hose Barb | Brass
12E-T62 Weatherhead by Danfoss | Everflex E Series | Straight Tube Crimp Fitting | -12 Tube Size x -12 Hose Barb | Brass
12E-T62 Weatherhead by Danfoss | Everflex E Series | Straight Tube Crimp Fitting | -12 Tube Size x -12 Hose Barb | Brass

12E-T62 Weatherhead by Danfoss | Everflex E Series | Straight Tube Crimp Fitting | -12 Tube Size x -12 Hose Barb | Brass

Sale price$48.42

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Straight Tube - Straight
Buy More, Save More!
Quantity Price Each
10–39 $45.51
40–79 $41.16
80+ $36.32
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Weatherhead
Series:
  • Everflex E Series
Shape:

Straight
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Insert - Brass
  • Collar - Steel
Compatible Hose:
  • For use with H243 PTFE hose Only.
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Brass
Part Number		 Hose I.D. Tube Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Sleeve
Part Number		 Nut
Part Number
08E-T58 1/2" 1/2" 3.32" 2.31" 0.39" 3/4" 1360X8 1361X8
08E-T60 1/2" 5/8" 3.45" 2.44" 0.47" 3/4" 1360X10 1361X10
12E-T60 3/4" 5/8" 3.66" 2.44" 0.47" 1" 1360X10 1361X10
12E-T62 3/4" 3/4" 4.00" 2.81" 0.61" 1" 1360X12 1361X12

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
