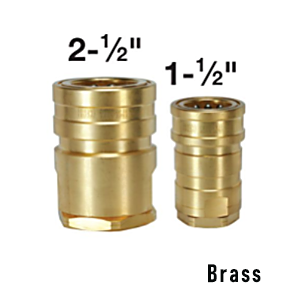

12DSF12-B Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 1-1/2" Socket x 1-1/2" Female NPTF Thread | Brass

12DSF12-B Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 1-1/2" Socket x 1-1/2" Female NPTF Thread | Brass

Sale price$273.77

Foster Quick Disconnects - FHK & DS Series 1-1/2" Two Way Shut-Off, Plugs and Sockets - Breco
Buy More, Save More!
Quantity Price Each
5–14 $257.34
15–29 $232.70
30+ $205.33
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Breco
Series:
  • DS Series
Shape:

Straight
FHK Series Product Information
Applications: Hydraulic couplings used to prevent fluid loss upon disconnection; suitable for various media. Seal Compound: Buna-N (Nitrile)
Vacuum Service: 27" Hg. per ANSI/B93.2-1986 with 4:1 Safety Factor Type: FHK, Two-Way Shutoff – Both socket and plug sealed at disconnect
Interchangeability: Standard industrial design. ISO 7241-1, Series B compatible Operation: Manual sleeve retraction required
Connect/disconnect at zero pressure for safety
Options:
  • One Way Shut-Off (VA): Valve actuator option
  • Straight-Thru (LV): Less valve option
  • Ball Lock (BL): Prevents accidental disconnect
Ordering Info: Available in plated steel, brass, 303/316 stainless. Brass has double O-rings and stainless balls. Standard seals are Buna-N. Locking sleeves use “BL” prefix.
Part Number Type Finish Body Size Thread Size Hex Wrench Area Max. Working Pressure Hydraulic Oil Rated Flow at 100°F
In. ISO mm
12DSF12-B Socket Brass 1-1/2" 40 mm 1-1/2" NPTF 2.36" 1,500 PSI 100 gpm
DS12F12-B Plug Brass 1-1/2" 40 mm 1-1/2" NPTF 2.36" 1,500 PSI 100 gpm
