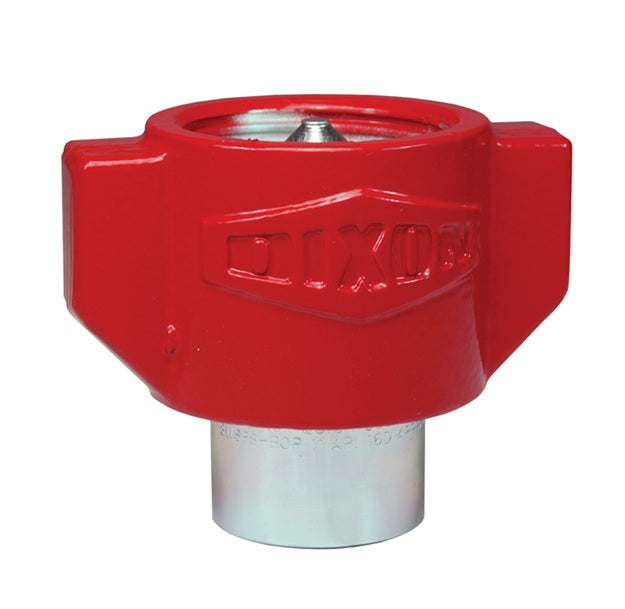

12WSF12-BOP by Dixon Valve | Hydraulic Quick Disconnect Coupling | WS-BOP-Series | 1-1/2" Female NPTF x 1-1/2" Heavy-Duty Wingstyle Blowout Preventer Safety End | Socket | FKM Seal | Steel
12WSF12-BOP by Dixon Valve | Hydraulic Quick Disconnect Coupling | WS-BOP-Series | 1-1/2" Female NPTF x 1-1/2" Heavy-Duty Wingstyle Blowout Preventer Safety End | Socket | FKM Seal | Steel

12WSF12-BOP by Dixon Valve | Hydraulic Quick Disconnect Coupling | WS-BOP-Series | 1-1/2" Female NPTF x 1-1/2" Heavy-Duty Wingstyle Blowout Preventer Safety End | Socket | FKM Seal | Steel

Sale price$284.79

Dixon Valve & Coupling
Hydraulic Coupling: WS-BOP-Series Heavy-Duty Wingstyle Blowout Preventer Safety Coupler (Female Threads)

Designed for use in oil rig BOP systems where couplings are required to operate under fire conditions in an emergency.


In stock
Buy More, Save More!
Quantity Price Each
5–14 $267.70
15–29 $242.07
30+ $213.59
Discounts applied in cart/checkout.

Product Data:

Series:
  • WS-BOP-Series
Shape:

Straight

Ends Configuration:
  • 1-1/2in Female ISO-7241 Wing Nut QD Interchange
  • 1-1/2in Female NPTF
Compatibility & Interchange:
  • Snap-Tite 75-Series
  • DNP VFF-HD BOP series
Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Zinc Nickel.
  • Rugged high-strength steel wing nut for threaded connect and disconnect operation.
  • Red powder coated coupler wing-nut and external nipple O-ring for easy BOP service identification.
  • Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection.
Seal Components:
  • Blow-out Preventer (BOP) couplings contain severe service FKM seals
  • PTFE anti-extrusion ring protects main coupling O-Ring from dynamic impulse pressure damage.
Specifications:
  • BOP Couplings have been fire tested and Lloyd's certified to 700°C (1300°F) in accordance with API 16D. Certificate available upon request.
  • Lloyd's Test Pressure: 5,000 PSI.
Additional Information:
WS-BOP-Series | Blowout Preventer Heavy-Duty Wingstyle Rated Pressure Chart
Body
Size		 Steel Coupler/Plug 316 Stainless Steel Coupler/Plug Air
Inclusion		 Fluid
Loss		 Vacuum
inch HG		 Flow
ΔP = 30 PSI		 Lloyd's Test
Pressure
PSI
Max. Working Burst Max. Working Burst
3/4" 5,000 PSI
(345 Bar)		 32,800 PSI
(2,200 Bar)		 5,000 PSI
(345 Bar)		 20,000 PSI
(1,400 Bar)		 10 cc 10 cc 27.4 35 GPM 5,000
1" 5,000 PSI
(345 Bar)		 25,100 PSI
(1,700 Bar)		 5,000 PSI
(345 Bar)		 20,000 PSI
(1,400 Bar)		 23 cc 15 cc 27.4 65 GPM 5,000
1-1/4" 5,000 PSI
(345 Bar)		 25,100 PSI
(1,700 Bar)		 5,000 PSI
(345 Bar)		 15,000 PSI
(1,000 Bar)		 50 cc 30 cc 27.4 105 GPM 5,000
1-1/2" 5,000 PSI
(345 Bar)		 20,000 PSI
(1,400 Bar)		 5,000 PSI
(345 Bar)		 15,000 PSI
(1,000 Bar)		 100 cc 60 cc 27.4 160 GPM 5,000
2" 5,000 PSI
(345 Bar)		 15,000 PSI
(1,000 Bar)		 5,000 PSI
(345 Bar)		 15,000 PSI
(1,000 Bar)		 200 cc 135 cc 27.4 270 GPM 5,000
WS-BOP-Series | Heavy-Duty Wingstyle Blowout Preventer Safety Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Port Size Material Length Max.
OD
6WSF4-BOP Socket/Female 3/4" 1/2" - 14 Female NPTF Steel 2.76"
(70.1mm)		 3.31"
(82.0mm)
6WSF6-BOP Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 2.76"
(70.1mm)		 3.31"
(82.0mm)
6WSF6-SS-BOP Socket/Female 3/4" 3/4" - 14 Female NPTF 316 Stainless 2.76"
(70.1mm)		 3.31"
(82.0mm)
8WSF8-BOP Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 3.45"
(87.6mm)		 4.10"
(101.6mm)
8WSF8-SS-BOP Socket/Female 1" 1" - 11-1/2 Female NPTF 316 Stainless 3.45"
(87.6mm)		 4.10"
(101.6mm)
10WSF10-BOP Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 4.40"
(111.8mm)		 4.78"
(118.1mm)
10WSF10-SS-BOP Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF 316 Stainless 4.40"
(111.8mm)		 4.78"
(118.1mm)
12WSF12-BOP Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 5.13"
(130.3mm)		 5.68"
(137.9mm)
12WSF12-SS-BOP Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF 316 Stainless 5.13"
(130.3mm)		 5.68"
(137.9mm)
16WSF16-BOP Socket/Female 2" 2" - 11-1/2 Female NPTF Steel 6.09"
(154.7mm)		 6.90"
(170.9mm)
16WSF16-SS-BOP Socket/Female 2" 2" - 11-1/2 Female NPTF 316 Stainless 6.09"
(154.7mm)		 6.90"
(170.9mm)
WS-BOP-Series | Heavy-Duty Wingstyle Blowout Preventer Safety Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Port Size Material Length Max.
OD
WS6F4-BOP Plug/Male 3/4" 1/2" - 14 Female NPTF Steel 3.27"
(83.1mm)		 1.74"
(44.2mm)
WS6F6-BOP Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 3.27"
(83.1mm)		 1.74"
(44.2mm)
WS6F6-SS-BOP Plug/Male 3/4" 3/4" - 14 Female NPTF 316 stainless 3.27"
(83.1mm)		 1.74"
(44.2mm)
WS8F8-BOP Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 4.18"
(106.2mm)		 2.25"
(57.2mm)
WS8F8-SS-BOP Plug/Male 1" 1" - 11-1/2 Female NPTF 316 Stainless 4.18"
(106.2mm)		 2.25"
(57.2mm)
WS10F10-BOP Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 5.38"
(136.7mm)		 2.63"
(66.8mm)
WS10F10-SS-BOP Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF 316 Stainless 5.38"
(136.7mm)		 2.63"
(66.8mm)
WS12F12-BOP Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 5.98"
(151.9mm)		 3.25"
(82.6mm)
WS12F12-SS-BOP Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF 316 Stainless 5.98"
(151.9mm)		 3.25"
(82.6mm)
WS16F16-BOP Plug/Male 2" 2" - 11-1/2 Female NPTF Steel 7.05"
(179.1mm)		 4.00"
(101.6mm)
WS16F16-SS-BOP Plug/Male 2" 2" - 11-1/2 Female NPTF 316 Stainless 7.05"
(179.1mm)		 4.00"
(101.6mm)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
