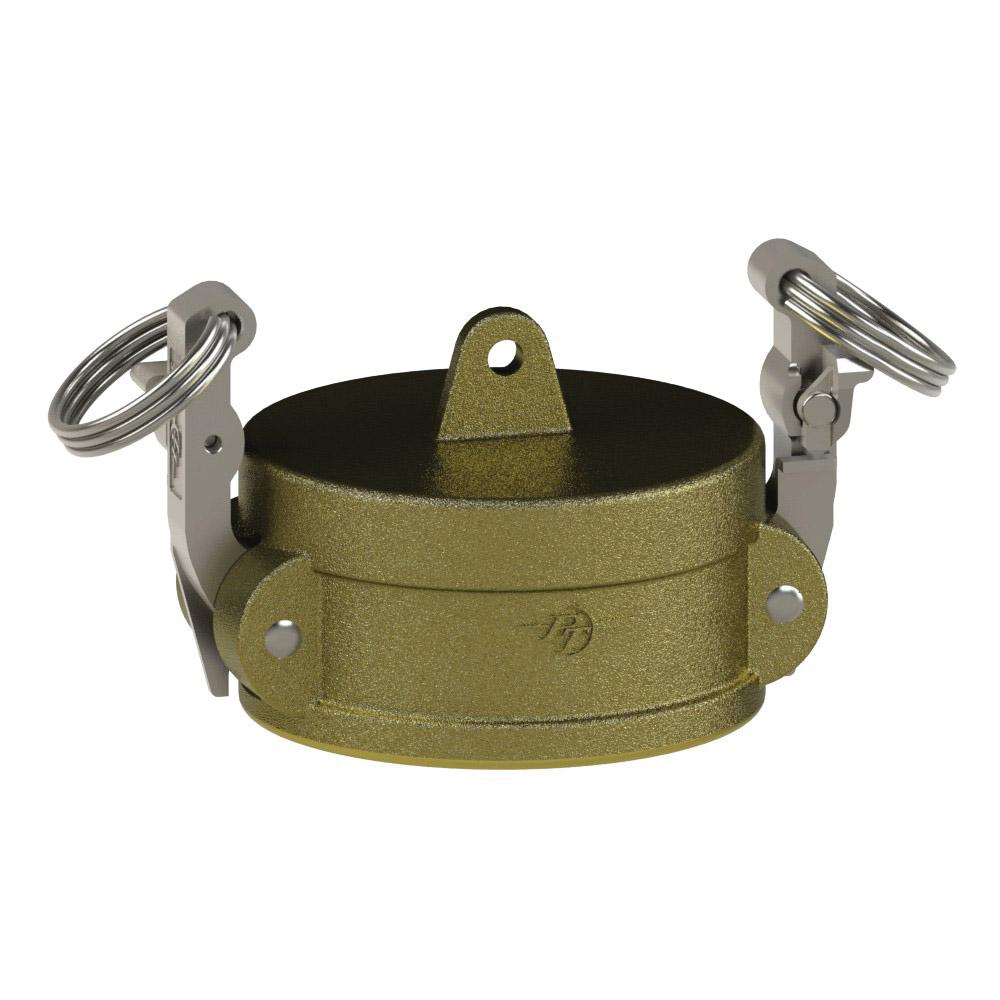

1291125L2 (25V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 2-1/2" Coupler | Brass/SLS

1291125L2 (25V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 2-1/2" Coupler | Brass/SLS

Sale price$138.06

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Brass/SLS

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $129.78
20–59 $117.35
60+ $103.55
Discounts applied in cart/checkout.

Product Data:

Series:
  • STA-LOK II
Cam & Groove Type:

Type DC

Ends Configuration:
  • 2-1/2in Female Cam & Groove
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • SLS cam arms are made of 316 Stainless Steel.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*

10V SLII 1291110L2 1" 5.10" 2.44" 1.60" 0.62" 250 PSI

15V SLII 1291115L2 1-1/2" 7.16" 3.56" 1.96" 0.86" 250 PSI

20V SLII 1291120L2 2" 7.54" 3.94" 2.25" 0.76" 250 PSI

25V SLII 1291125L2 2-1/2" 8.03" 4.43" 2.28" 0.90" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
