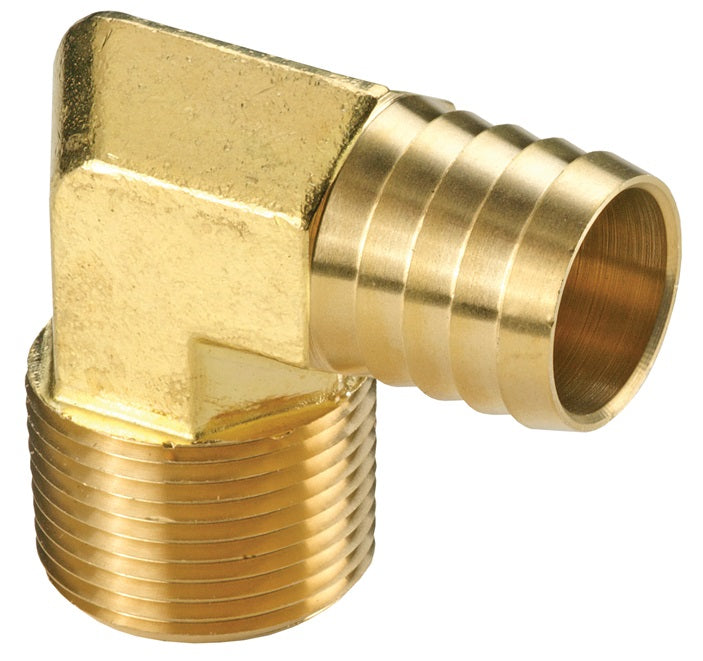

1290504C by Dixon Valve | Male Hose Barb Insert | 90° Elbow | 1/4" Male NPTF x 5/16" Hose Barb | Brass
Minimum Order Quantity: 5 Units
Dixon Valve
Male Hose Barb Insert | 90° Elbow | Male NPTF x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.07 |
| 40–79 | $5.49 |
| 80+ | $4.85 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Construction: | |||
|---|---|---|---|
|
|||
| Safety Notes: | |||
|
| Brass | Lead-Free Brass Part Number (Lead-Free Fittings have NPT Threads) |
316 Stainless Steel | Male NPTF | Hose I.D. | ||
|---|---|---|---|---|---|---|
| Previous Part Number |
Part Number | Previous Part Number |
Part Number | |||
| EL15H1M | 1290302C | - | - | - | 1/8" | 3/16" |
| EL2H1M | 1290402C | - | EL2H1MSS | 1290402SS | 1/8" | 1/4" |
| EL2H2M | 1290404C | 1290404CLF | EL2H2MSS | 1290404SS | 1/4" | 1/4" |
| EL2H3M | 1290406C | - | - | - | 3/8" | 1/4" |
| EL25H1M | 1290502C | - | - | - | 1/8" | 5/16" |
| EL25H2M | 1290504C | - | - | - | 1/4" | 5/16" |
| EL25H3M | 1290506C | - | - | - | 3/8" | 5/16" |
| EL3H1M | 1290602C | - | - | - | 1/8" | 3/8" |
| EL3H2M | 1290604C | 1290604CLF | EL3H2MSS | 1290604SS | 1/4" | 3/8" |
| EL3H3M | 1290606C | 1290606CLF | EL3H3MSS | 1290606SS | 3/8" | 3/8" |
| EL3H4M | 1290608C | - | - | - | 1/2" | 3/8" |
| EL4H2M | 1290804C | - | EL4H2MSS | 1290804SS | 1/4" | 1/2" |
| EL4H3M | 1290806C | - | EL4H3MSS | 1290806SS | 3/8" | 1/2" |
| EL4H4M | 1290808C | - | EL4H4MSS | 1290808SS | 1/2" | 1/2" |
| EL5H3M | 1291006C | - | - | - | 3/8" | 5/8" |
| EL5H4M | 1291008C | - | - | - | 1/2" | 5/8" |
| EL6H4M | 1291208C | - | EL6H4MSS | 1291208SS | 1/2" | 3/4" |
| EL6H6M | 1291212C | - | EL6H6MSS | 1291212SS | 3/4" | 3/4" |
| EL8H6M | 1291612C | - | - | - | 3/4" | 1" |
| EL8H8M | 1291616C* | - | - | - | 1" | 1" |
* Capped
