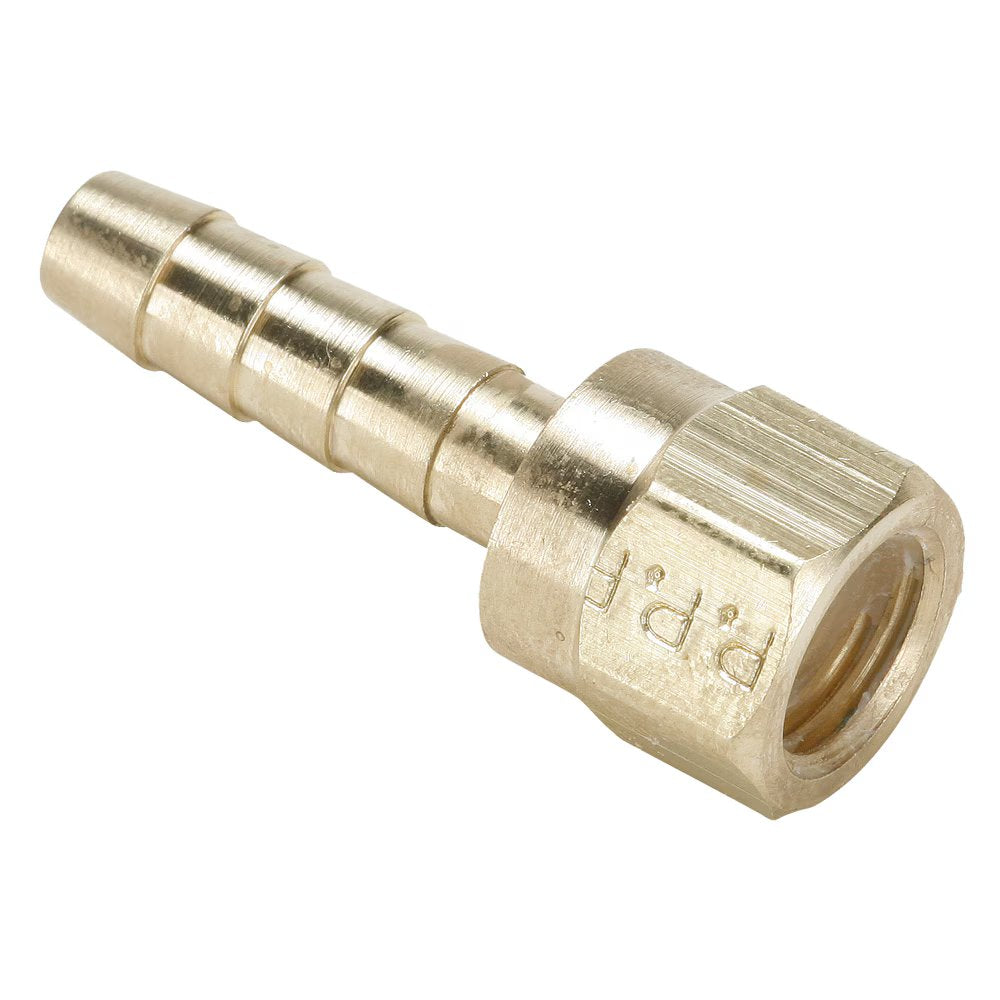

128HBLSV-6-6 by Parker | Hose Barb Fittings | 3/8" Hose Barb x 3/8" Female Swivel NPSM Thread | 3/4" Hex | 1.50" Length | Straight | Brass | Pack of 25

128HBLSV-6-6 by Parker | Hose Barb Fittings | 3/8" Hose Barb x 3/8" Female Swivel NPSM Thread | 3/4" Hex | 1.50" Length | Straight | Brass | Pack of 25

Sale price$174.76

by Parker Hannifin
Hose Barb Fittings:Hose Barb to Swivel Female Ball-End 128HBLSV

Package Quantity: 25 Units

Buy More, Save More!
Quantity Price Each
5–19 $164.27
20–59 $148.55
60+ $131.07
Discounts applied in cart/checkout.

Product Data:

Series:
  • 128HBLSV Series
Shape:

Straight

Ends Configuration:
  • 3/8in Hose Barb
  • 3/8in Female NPSM
Product Features:
  • All brass construction
  • Fluorocarbon O-rings
  • NPTF, SAE straight thread, metric thread ends
  • Reusable
  • Clamp required
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -40° to +160° F (-40° to +71.1° C)
Pressure Range: Up to 150 PSI (10.3 bar)
Part Number ID Hose Size Female NPSM Thread Hex (C) L M OD Flow Diameter (D)
128HBLSV-4-4 1/4" 1/4" 5/8" 1.50" .97" .290" .187"
128HBLSV-5-4 5/16" 1/4" 5/8" 1.50" .97" .353" .250"
128HBLSV-6-4 3/8" 1/4" 5/8" 1.63" .97" .415" .250"
128HBLSV-6-6 3/8" 3/8" 3/4" 1.50" .97" .415" .281"
128HBLSV-8-8 1/2" 1/2" 29/32" 1.52" .97" .530" .375"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Explore Parker Fluid System Connectors Division
