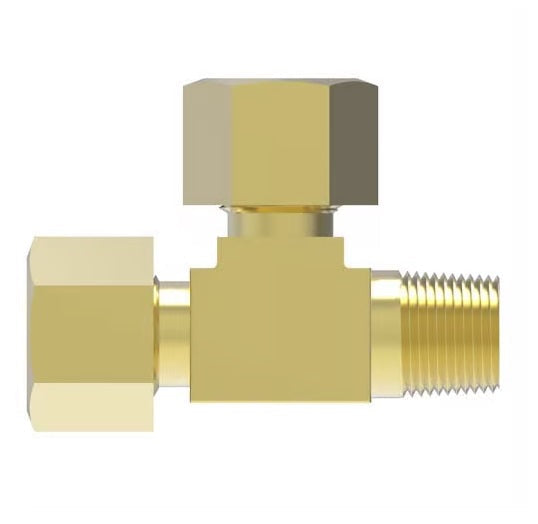

1271X4 by Danfoss | Polyline Flareless Adapter | Male Pipe Run Tee | 1/4" Tube OD x 1/8" Male NPTF x 1/4" Tube OD | Brass

1271X4 by Danfoss | Polyline Flareless Adapter | Male Pipe Run Tee | 1/4" Tube OD x 1/8" Male NPTF x 1/4" Tube OD | Brass

Sale price$12.90

Aeroquip® by Danfoss
Polyline Flareless Adapter - Male Pipe Run Tee
Polyline Flareless End x Male NPTF x Polyline Flareless End
Buy More, Save More!
Quantity Price Each
10–39 $12.13
40–79 $10.97
80+ $9.68
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Tube Compression
  • 1/8in Male NPTF
  • 1/4in Tube Compression
Material(s):
  • Brass
Applications:
  • Pneumatic instrumentation circuits, lubricant and cooling lines.
Advantages:
  • No flaring of tubing required.
  • Easy installation.
  • Captive sleeve.
  • Pre-assembled for installation and can be reassembled.
  • Excellent vibration resistance.
Used With:
  • PT200 and PT240 plastic tubing.
  • Not recommended for metal tubing.
  • Not recommended for use with PT230, TP160 or Air Brake tubing.
Material:
  • CA360 Brass Body
  • Plastic Sleeve
Pressure:
  • Working pressure up to 500 psi with a 4:1 safety factor depending on tubing.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Size x46 x4 x5 x6 x8
Tube O.D. 1/4" 1/4" 5/16" 3/8" 1/2"
Thread Size B 3/8-24 3/8-24 7/16-24 1/2-24 11/16-20
Flow Dia. (D1) .078" .125" .141" .203" .312"
Support Dia. (D2) .120" .166" .180" .245" .370"
Brass
Part Number 		Tube O.D. Male Pipe Thread M M1 N
1271X4 1/4" 1/8" 0.75" 0.59" 0.72"
