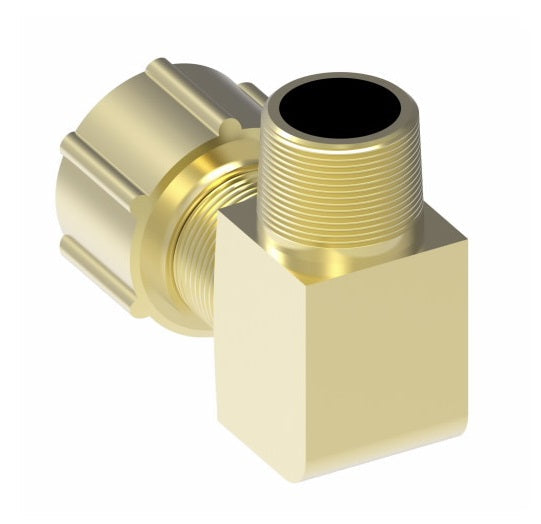

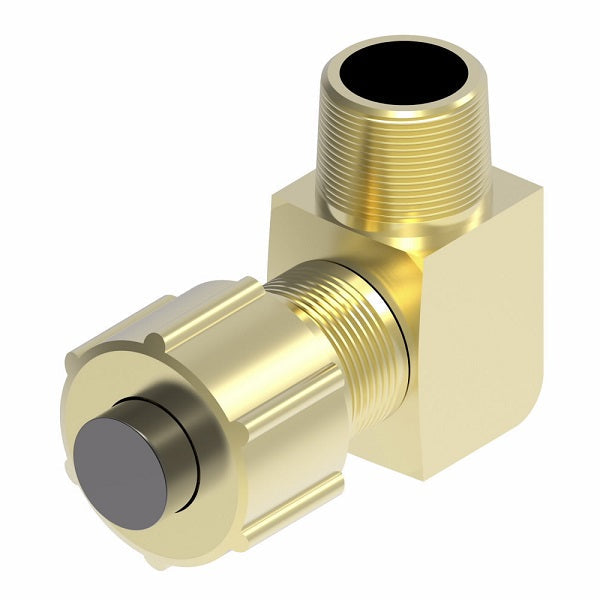

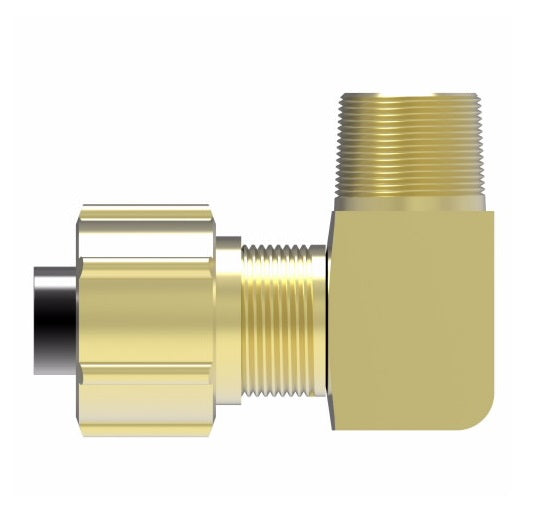

1269X4 by Danfoss | Polyline Flareless Adapter | Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Brass
1269X4 by Danfoss | Polyline Flareless Adapter | Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Brass
1269X4 by Danfoss | Polyline Flareless Adapter | Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Brass

1269X4 by Danfoss | Polyline Flareless Adapter | Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Brass

Sale price$11.42

Aeroquip® by Danfoss
Polyline Flareless Adapter - Male Elbow
Polyline Flareless End x Male NPTF
90° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $10.73
40–79 $9.71
80+ $8.57
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Tube Compression
  • 1/8in Male NPTF
Material(s):
  • Brass
Applications:
  • Pneumatic instrumentation circuits, lubricant and cooling lines.
Advantages:
  • No flaring of tubing required.
  • Easy installation.
  • Captive sleeve.
  • Pre-assembled for installation and can be reassembled.
  • Excellent vibration resistance.
Used With:
  • PT200 and PT240 plastic tubing.
  • Not recommended for metal tubing.
  • Not recommended for use with PT230, TP160 or Air Brake tubing.
Material:
  • CA360 Brass Body
  • Plastic Sleeve
Pressure:
  • Working pressure up to 500 psi with a 4:1 safety factor depending on tubing.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Size x46 x4 x5 x6 x8
Tube O.D. 1/4" 1/4" 5/16" 3/8" 1/2"
Thread Size B 3/8-24 3/8-24 7/16-24 1/2-24 11/16-20
Flow Dia. (D1) .078" .125" .141" .203" .312"
Support Dia. (D2) .120" .166" .180" .245" .370"
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male Pipe Thread M M1 N
1269X4X1 - 1/4" 1/16" 0.75" 0.59" 0.72"
1269X4 1269X4Z 1/4" 1/8" 0.75" 0.59" 0.72"
1269X4X4 - 1/4" 1/4" 0.81" 0.66" 0.94"
1269X6 - 3/8" 1/4" 0.86" 0.72" 0.92"
1269X6X6 - 3/8" 3/8" 0.86" 0.72" 1.08"
