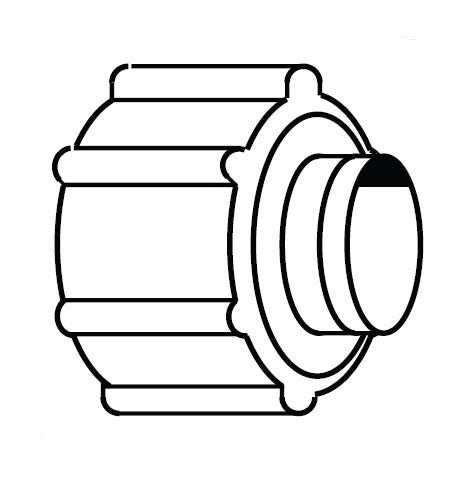

1261X4A by Danfoss | Polyline Flareless Adapter | Brass Nut/Plastic Sleeve Assembly | 1/4" Tube OD | Brass

1261X4A by Danfoss | Polyline Flareless Adapter | Brass Nut/Plastic Sleeve Assembly | 1/4" Tube OD | Brass

Minimum Order Quantity: 10 Units

Sale price$1.53
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Pneumatic instrumentation circuits, lubricant and cooling lines.
Advantages:
  • No flaring of tubing required.
  • Easy installation.
  • Captive sleeve.
  • Pre-assembled for installation and can be reassembled.
  • Excellent vibration resistance.
Used With:
  • PT200 and PT240 plastic tubing.
  • Not recommended for metal tubing.
  • Not recommended for use with PT230, TP160 or Air Brake tubing.
Material:
  • CA360 Brass Body
  • Plastic Sleeve
Pressure:
  • Working pressure up to 500 psi with a 4:1 safety factor depending on tubing.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Size x46 x4 x5 x6 x8
Tube O.D. 1/4" 1/4" 5/16" 3/8" 1/2"
Thread Size B 3/8-24 3/8-24 7/16-24 1/2-24 11/16-20
Flow Dia. (D1) .078" .125" .141" .203" .312"
Support Dia. (D2) .120" .166" .180" .245" .370"
Brass
Part Number 		Tube O.D. Diameter C L
1261X4A 1/4" 7/16" 0.43"
1261X6A 3/8" 9/16" 0.49"

Additional Product Data:

Shape:

No Orientation

Material(s):
  • Brass
Compatible Series:
  • PT200 Series
  • PT240 Series

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
