124XL025 XL Trapezoidal Timing Belt - 124XL - 62 Teeth - 0.25" Width - Beltsmart

124XL025 by Bestorq | XL Trapezoidal Timing Belt | 124XL Section | 62 Teeth | 0.25" Width

Minimum Order Quantity: 5 Units

Sale price$3.54

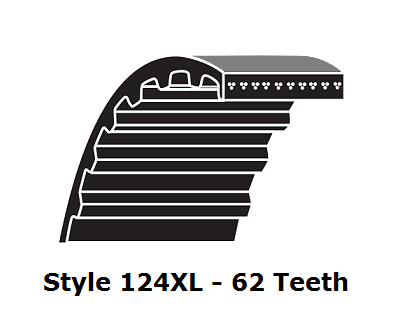

Timing Belt Sizes - Trapezoidal Timing Belts - XL Style - 124XL: 62 Teeth
Buy More, Save More!
Quantity Price Each
20–39 $3.33
40–79 $3.01
80+ $2.66
Discounts applied in cart/checkout.

Product Data:

Series:
  • XL Trapezoidal Timing Belt
Belt Tooth Count:

62 Teeth

Belt Cross Section:

124XL

Overview:
  • Trapezoidal Tooth timing belts are high capacity industrial timing belts. They offer a reliable, economical and trouble-free alternative to chain drives. Compared to chain drives, Trapezoidal Tooth timing belts are cleaner, lube-free, quieter and lower in cost. Trapezoidal Tooth timing belts offer excellent performance.
Features:
  • The belts feature high temperature chloroprene polymer throughout. The high performance, woven, nylon based, fabric facing material has been engineered and tested for highly wear resistant performance. Thebacking is precision ground for smooth uniform running. The helically wound tensile cords are speciallyengineered, twisted and chemically set stranded fiberglass material.
Specifications:
  • The Trapezoidal Tooth timing belts exceed USA RMA Standard IP-24 ratings levels and compare to the premium manufacturers ratings for Trapezoidal Tooth Timing belt Horsepower Ratinglevels.

Part Number Tooth Pitch
Pb
(in.)		 Belt Thickness
hs
(in.)		 Tooth Depth
ht
(in.)		 Angle
?
(deg.)		 Number of Teeth Pitch Length
(in.)		 Width
(in.)
124XL025 0.200" 0.090" 0.050" 50 62 12.40" 0.25"
124XL037 0.200" 0.090" 0.050" 50 62 12.40" 0.37"
124XL100 0.200" 0.090" 0.050" 50 62 12.40" 1.00"

Bestorq

Bestorq provides energy saving and extreme long life power transmission belts. Bestorq has highest quality, best customer service, and best delivery. The Bestorq history is as a high quality manufacturer of power transmission belts in non-HVAC channels. This made it natural to expand this great success into the air handling marketplace. Bestorq offers great wages, great benefits and great opportunities, finding and retaining the highest quality employees.
