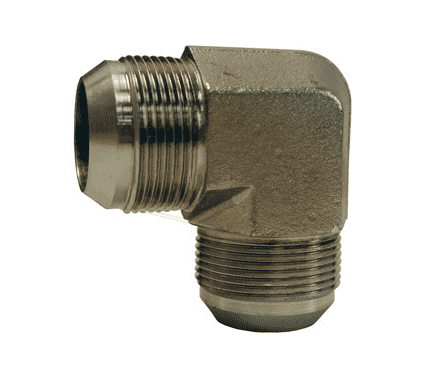

1234-08-08 Dixon Valve | Zinc Plated Steel | 90° Elbow | -08 Male JIC 37° Flare x -08 Male JIC 37° Flare

1234-08-08 Dixon Valve | Zinc Plated Steel | 90° Elbow | -08 Male JIC 37° Flare x -08 Male JIC 37° Flare

Minimum Order Quantity: 5 Units

Sale price$8.43

Dixon Valve & Coupling
Male JIC 37° Flare x Male JIC 37° Flare - 90° Elbow - Zinc Plated Steel
Buy More, Save More!
Quantity Price Each
20–39 $7.92
40–79 $7.17
80+ $6.32
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Male JIC
  • 1/2in Male JIC
  • Some Ends Match
Material(s):
  • Zink-Plated Steel
Specifications:
  • Reference SAE 070201
  • Pressure rating at 70°F (21°C)
Part Number Male JIC 37° Flare Male JIC 37° Flare Working Pressure
at 70°F (21°C)		 Weight (Lbs.)
1234-04-04 7/16"-20 7/16"-20 5000 PSI 0.1200
1234-06-06 9/16"-18 9/16"-18 5000 PSI 0.1400
1234-08-08 3/4"-16 3/4"-16 4500 PSI 0.2200
1234-10-10 7/8"-14 7/8"-14 3500 PSI 0.3000
1234-12-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.3450
1234-16-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.5250
1234-20-20 1-5/8"-12 1-5/8"-12 2500 PSI 0.7700

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
