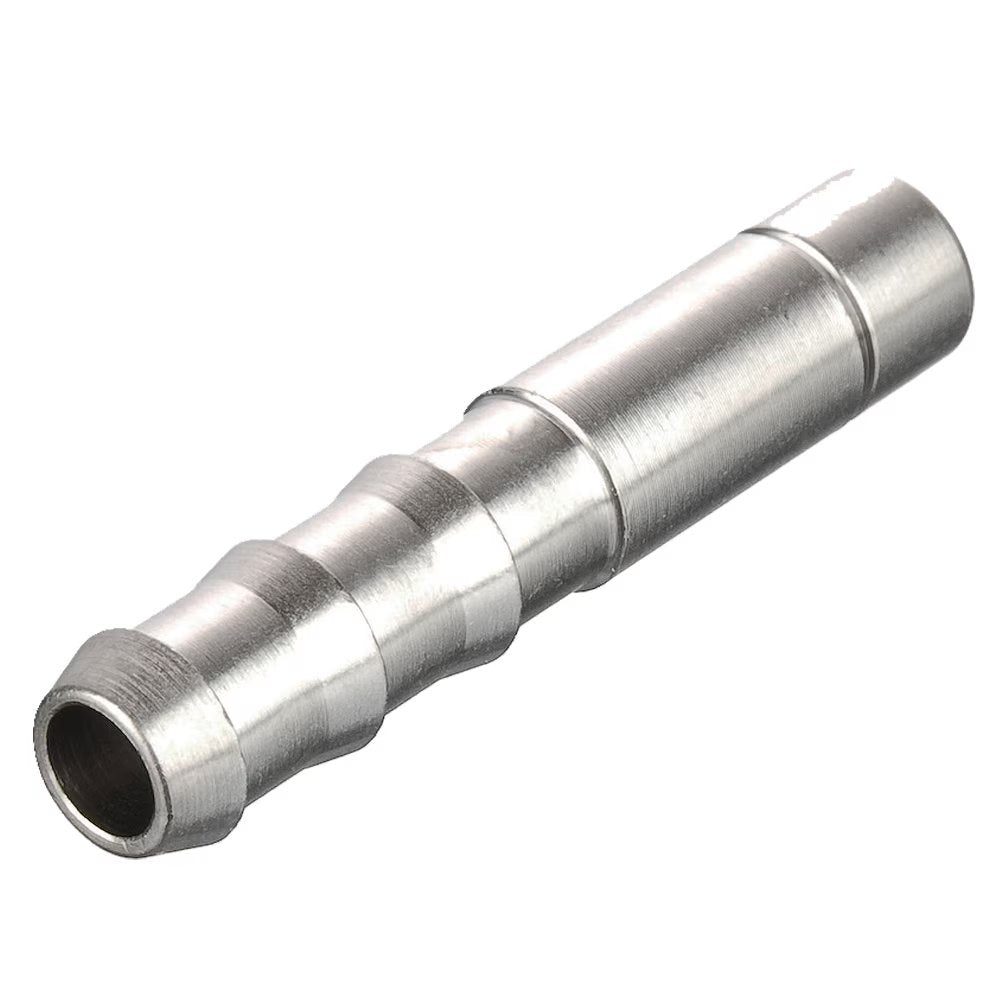

122PLMSP-10M-8M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Barbed Connector | 10 mm to 8.00 mm Tube Size | 47.50 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

122PLMSP-10M-8M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Barbed Connector | 10 mm to 8.00 mm Tube Size | 47.50 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Sale price$73.68

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:122PLMSP Plug-In Barbed Connector Metric

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $69.26
40–79 $62.63
80+ $55.26
Discounts applied in cart/checkout.

Product Data:

Series:
  • 122PLMSP Series
Shape:

Straight

Ends Configuration:
  • 1mm Hose Barb
  • 8mm Tube Stem
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size 1 Tube Size 2 Tube Size 3 L L1 L2
122PLMSP-4M-3M 4 mm 3.20 mm 5.00 mm 40.50 mm 27.00 mm 22.50 mm
122PLMSP-4M-5M 4 mm 5.00 mm 7.00 mm 40.50 mm 27.00 mm 22.50 mm
122PLMSP-6M-5M 6 mm 5.00 mm 7.00 mm 43.00 mm 27.00 mm 22.50 mm
122PLMSP-8M-6M 8 mm 6.30 mm 8.30 mm 42.00 mm 25.00 mm 22.50 mm
122PLMSP-8M-8M 8 mm 8.00 mm 10.00 mm 44.00 mm 27.00 mm 22.50 mm
122PLMSP-10M-6M 10 mm 6.30 mm 8.30 mm 47.50 mm 25.50 mm 22.50 mm
122PLMSP-10M-8M 10 mm 8.00 mm 10.00 mm 47.50 mm 25.50 mm 22.50 mm
122PLMSP-12M-8M 12 mm 8.00 mm 10.00 mm 48.50 mm 25.50 mm 22.50 mm
122PLMSP-12M-10M 12 mm 10.00 mm 12.00 mm 48.50 mm 25.50 mm 22.50 mm
122PLMSP-12M-12M 12 mm 10.00 mm 12.00 mm 48.50 mm 25.50 mm 29.50 mm
122PLMSP-14M-12M 14 mm 12.50 mm 14.50 mm 57.00 mm 34.00 mm 29.50 mm
122PLMSP-14M-14M 14 mm 14.00 mm 16.00 mm 59.50 mm 35.00 mm 29.50.50 mm
