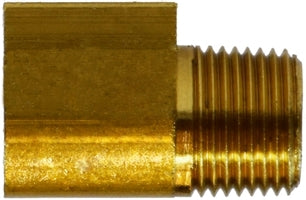

12066 by Midland | Inverted Flare Fitting | 1/2" Female Inverted Flare x 3/8" Male NPTF | 90° Elbow | Brass
Midland Industries
Brass Fitting - Inverted Flare Fitting - Male 90° Elbow - Female Inverted Flare x Male NPTF - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.42 |
| 40–79 | $7.62 |
| 80+ | $6.72 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
| Applications: | Hydraulic brake, power steering, fuel lines and transmission cooler lines, LP and natural gas. | Used With: | Copper, brass, aluminum and steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | SAE# 040202 | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards). |
| Vibration: | Excellent resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. |
| Advantages: | Very low cost and reusable. Seats and threads are internal and protected. Compact, excellent vibration life. Short nut affords very close tube bends. | Tolerance: | +/- .03 on all dimensions. |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" | 1" |
| Thread OD (Threads per inch) |
5/16-28 | 3/8-24 | 7/16-24 | 1/2-20 | 5/8-18 | 11/16-18 | 3/4-18 | 7/8-18 | 1-1/16-16 | 1-3/16-16 | 1-5/16-16 |
| Standard Metric Threads: | |||
|---|---|---|---|
| Description Tube Size |
Thread OD | Crest (Pitch) |
Thread Description |
| Japanese 3/16" | 10mm | 1.0mm | M10 x 1.0 |
| European 3/16" | 10mm | 1.0mm | M10 x 1.0 |
| GM 6mm | 12mm | 1.0mm | M12 x 1.0 |
| Fuel 5/16" | 14mm | 1.5mm | M14 x 1.5 |
| Fuel 3/8" | 16mm | 1.5mm | M16 x 1.5 |
| Measuring Metric Threads: Measure the O.D. of the threads and the crest to crest distance (pitch) in millimeters between threads. | |||
| Crossover Series: | |||||||
|---|---|---|---|---|---|---|---|
| 491N | 491F | 400 | 2400 | 249IFHD | 402 | 249IF | 49W |
 |
||||
|---|---|---|---|---|
| Part Number | Female Inverted Flare x Male NPTF | A | B | Approx. Wt. Lbs. |
| 12057 (12-057) |
1/8" x 1/8" | 0.26" | 0.59" | 0.03 |
| 12058 (12-058) |
3/16" x 1/8" | 0.26" | 0.61" | 0.03 |
| 12059 (12-059) |
1/4" x 1/8" | 0.33" | 0.65" | 0.04 |
| 12054* (12-054) |
1/4" x 1/8" | 0.33" | 0.65" | 0.04 |
| 12060 (12-060) |
1/4" x 1/4" | 0.28" | 0.82" | 0.06 |
| 12061 (12-061) |
5/16" x 1/8" | 0.47" | 0.68" | 0.05 |
| 12062 (12-062) |
5/16" x 1/4" | 0.45" | 0.85" | 0.08 |
| 12082 | 5/16" x 3/8" | 0.47" | 0.86" | 0.12 |
| 12063 (12-063) |
3/8" x 1/8" | 0.54" | 0.76" | 0.14 |
| 12064 (12-064) |
3/8" x 1/4" | 0.53" | 0.92" | 0.14 |
| 12065 (12-065) |
3/8" x 3/8" | 0.50" | 0.94" | 0.12 |
| 12114 | 1/2" x 1/4" | 0.72" | 1.08" | 0.14 |
| 12066 (12-066) |
1/2" x 3/8" | 0.59" | 1.03" | 0.16 |
| 12067 (12-067) |
1/2" x 1/2" | 0.66" | 1.22" | 0.25 |
| 12056 (12-056) |
5/8" x 3/8" | 0.67" | 1.09" | 0.20 |
| 12068 (12-068) |
5/8" x 1/2" | 0.67" | 1.29" | 0.18 |
| 12069 (12-069) |
3/4" x 1/2" | 0.80" | 1.39" | 0.42 |
| 12080 (12-080) |
7/8" x 3/4" | 0.94" | 1.43" | 0.48 |
| 12081 (12-081) |
1" x 1" | 1.02" | 1.69" | 0.60 |
* Restricted pipe end .062
