12036 by Midland | Inverted Flare Fitting | 1/2" Female Inverted Flare x 3/8" Female NPTF | Adapter | Brass
Midland Industries

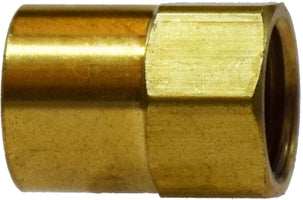

Brass Fitting - Inverted Flare Fitting - Female Adapter - Female Inverted Flare x Female NPTF - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.58 |
| 40–79 | $13.18 |
| 80+ | $11.63 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Hydraulic brake, power steering, fuel lines and transmission cooler lines, LP and natural gas. | Used With: | Copper, brass, aluminum and steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | SAE# 040103 | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards). |
| Vibration: | Excellent resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. |
| Advantages: | Very low cost and reusable. Seats and threads are internal and protected. Compact, excellent vibration life. Short nut affords very close tube bends. | Tolerance: | +/- .03 on all dimensions. |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" | 1" |
| Thread OD (Threads per inch) |
5/16-28 | 3/8-24 | 7/16-24 | 1/2-20 | 5/8-18 | 11/16-18 | 3/4-18 | 7/8-18 | 1-1/16-16 | 1-3/16-16 | 1-5/16-16 |
| Standard Metric Threads: | |||
|---|---|---|---|
| Description Tube Size |
Thread OD | Crest (Pitch) |
Thread Description |
| Japanese 3/16" | 10mm | 1.0mm | M10 x 1.0 |
| European 3/16" | 10mm | 1.0mm | M10 x 1.0 |
| GM 6mm | 12mm | 1.0mm | M12 x 1.0 |
| Fuel 5/16" | 14mm | 1.5mm | M14 x 1.5 |
| Fuel 3/8" | 16mm | 1.5mm | M16 x 1.5 |
| Measuring Metric Threads: Measure the O.D. of the threads and the crest to crest distance (pitch) in millimeters between threads. | |||
| Crossover Series: | |||
|---|---|---|---|
| 46IN | 46IFHD | 252 | 46W |
 |
||||
|---|---|---|---|---|
| Part Number | Female Inverted Flare x Female NPTF | A | Hex | Approx. Weight (Lbs.) |
| 12029 | 1/8" x 1/8" | 0.716" | 0.50" | 0.03 |
| 12032 (12-032) |
3/16" x 1/8" | 0.75" | 0.50" | 0.02 |
| 12033 (12-033) |
1/4" x 1/8" | 0.75" | 0.53" | 0.02 |
| 12030 | 1/4" x 1/4" | 1.01" | 0.751" | 0.11 |
| 12034 (12-034) |
5/16" x 1/8" | 0.78 " | 0.59" | 0.04 |
| 12035 (12-035) |
3/8" x 1/4" | 1.03" | 0.75" | 0.08 |
| 12031 | 7/16" x 1/4" | 1.06" | 0.81" | 0.11 |
| 12037 | 1/2" x 1/4" | 1.09" | 0.90" | 0.12 |
| 12036 (12-036) |
1/2" x 3/8" | 1.10" | 0.90" | 0.12 |
| 12039 | 5/8" x 1/2" | 1.32" | 1.065" | 0.19 |
| 12099 | 3/4" x 3/4" | 1.50" | 1.25" | 0.36 |
