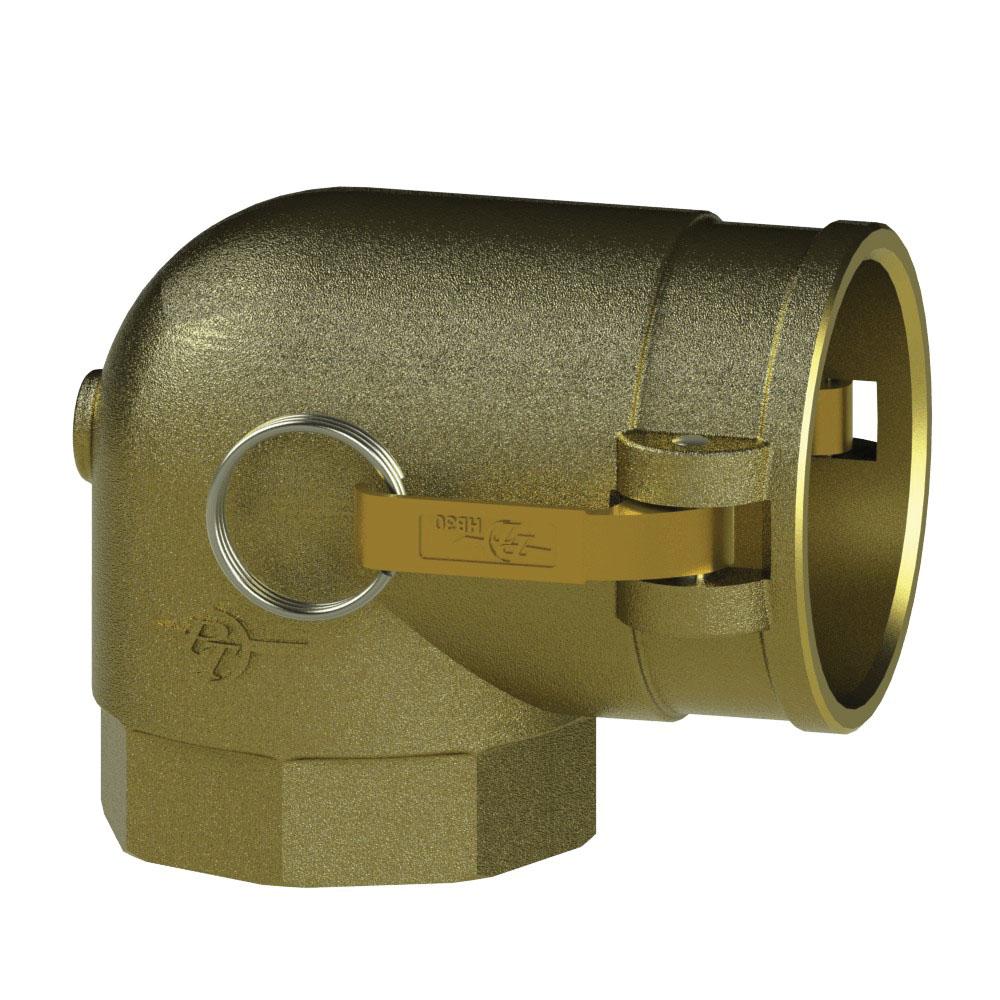

1200715 (15G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 1-1/2" Female NPT x 1-1/2" Coupler | Brass/HB | Buna-N Seal

1200715 (15G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 1-1/2" Female NPT x 1-1/2" Coupler | Brass/HB | Buna-N Seal

Sale price$173.54

PT Coupling
Cam & Groove (Camlock) Adapter with Check Valve | Type G | 90° Elbow | Female NPT x Coupler | Brass/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $163.13
20–59 $147.51
60+ $130.16
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Cam & Groove Type:

Type D

Ends Configuration:
  • 1-1/2in Female NPT
  • 1-1/2in Female Cam & Groove
Features & Applications:
  • HB cam arms are made of Brass.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Aluminum & Brass G-Elbows are assembled with Brass check valve assemblies.
  • Less than 5 PSI required to start flow in the full flow direction.
  • Made in the USA
Part
Name		 Item # Orientation Female NPT
Thread		 Coupler
Size		 Max. Allowable
Working Press.
(PSI)*
15G 1200715 90° 1-1/2" 1-1/2" 250 PSI
30G 1200730 90° 3" 3" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
