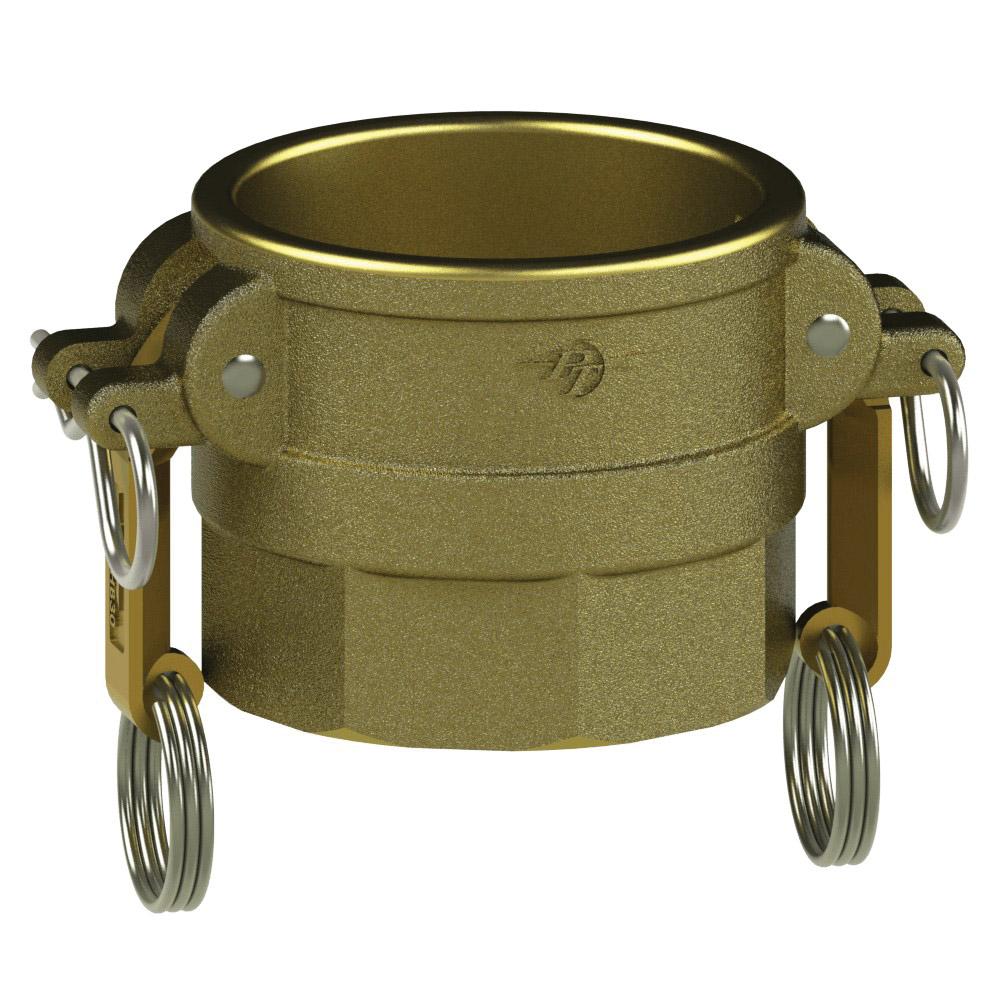

1200420SL (20DSL) by PT-Coupling | STA-LOK® Cam & Groove Adapter | Type DSL | 2" Coupler x 2" Female NPT | Brass/HB | Buna-N Seal

1200420SL (20DSL) by PT-Coupling | STA-LOK® Cam & Groove Adapter | Type DSL | 2" Coupler x 2" Female NPT | Brass/HB | Buna-N Seal

Sale price$98.58
Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • STA-LOK® is a positive locking feature that comes with Carbon Steel or Stainless Steel hitch pin clips. You may also substitute a padlock in place of the hitch pin clip. Proper use of these mechanisms can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • HB cam arms are made of Brass.
  • All standard components are 300 series Stainless Steel.
  • Standard Cam assemblies in HB and HBS may be used on all STA-LOK® parts.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
10DSL 1200410SL 1" 1" 250 PSI
12DSL 1200412SL 1-1/4" 1-1/4" 250 PSI
15DSL 1200415SL 1-1/2" 1-1/2" 250 PSI
20DSL 1200420SL 2" 2" 250 PSI
20DSL 1200425SL 2-1/2" 2-1/2" 200 PSI
30DSL 1200430SL 3" 3" 200 PSI
40DSL 1200440SL 4" 4" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

Additional Product Data:

Series:
  • STA-LOK
Shape:

Straight

Cam & Groove Type:

Type D
