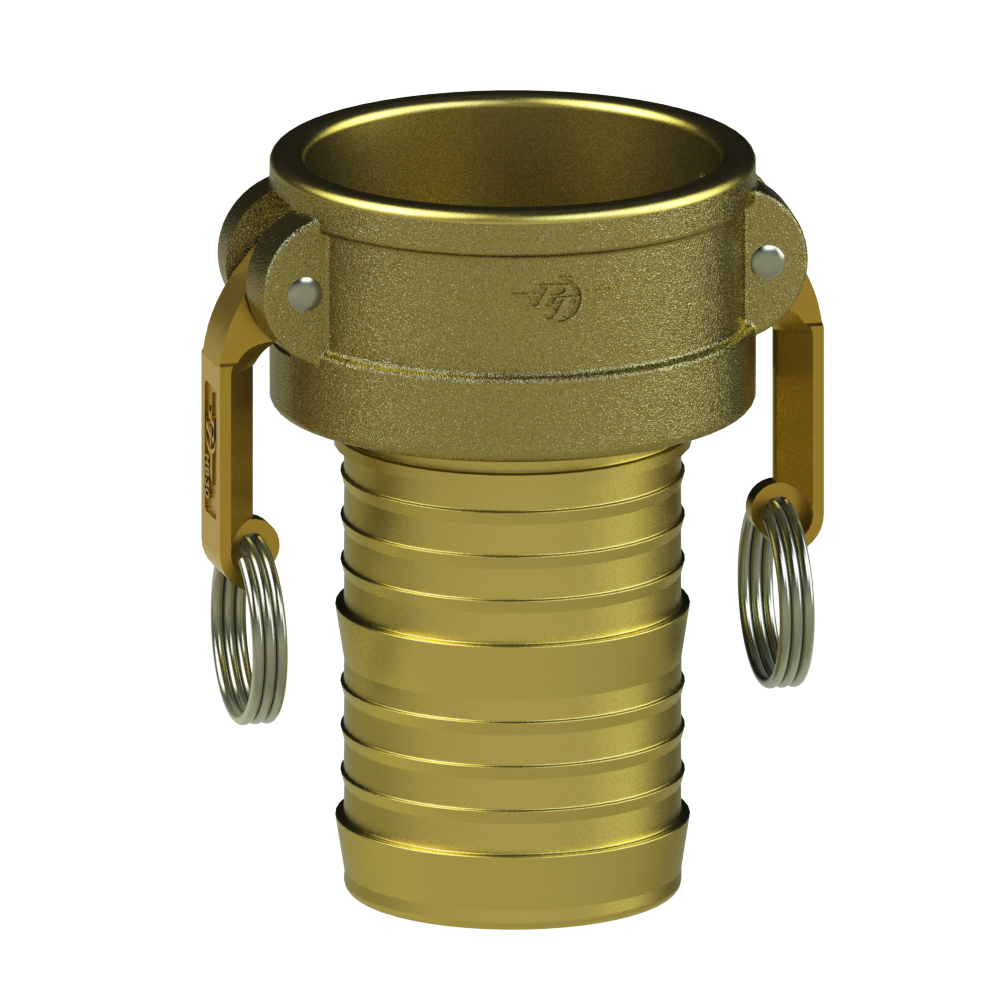

1200315 (15C) by PT-Coupling | Cam & Groove Fitting | Type C | 1-1/2" Coupler x 1-1/2" Hose Shank | Brass/HB | Buna-N Seal

1200315 (15C) by PT-Coupling | Cam & Groove Fitting | Type C | 1-1/2" Coupler x 1-1/2" Hose Shank | Brass/HB | Buna-N Seal

Sale price$79.56

PT Coupling
Cam and Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Brass/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $74.79
20–59 $67.63
60+ $59.67
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 1-1/2in Female Cam & Groove
  • 1-1/2in Hose Barb
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT's specially designed multi-barbed shank with interlocking ring allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • HB cam arms are made of Brass.
  • 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Hose
Shank
Size		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Min.
Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
E05C 1200301 1/2" 1/2" 4.21" 1.82" 2.69" 1.25" 0.38" 0.33" 1.03" 250 PSI 0.44 lbs.
07C 1200307 3/4" 3/4" 4.51" 2.11" 3.55" 1.25" 0.53" 0.40" 0.97" 250 PSI 0.665 lbs.
10C 1200310 1" 1" 5.10" 2.44" 4.06" 1.56" 0.78" 0.69" 1.19" 250 PSI 1.015 lbs.
12C 1200312 1-1/4" 1-1/4" 6.86" 3.26" 4.44" 1.84" 0.97" 0.88" 1.44" 250 PSI 1.746 lbs.
15C 1200315 1-1/2" 1-1/2" 7.16" 3.56" 4.82" 1.88" 1.22" 1.15" 1.48" 250 PSI 2.179 lbs.
20C 1200320 2" 2" 7.54" 3.94" 5.53" 2.15" 1.71" 1.60" 1.75" 250 PSI 3.044 lbs.
25C 1200325 2-1/2" 2-1/2" 8.03" 4.43" 5.93" 2.18" 2.16" 2.06" 1.75" 200 PSI 4.324 lbs.
30C 1200330 3" 3" 9.56" 5.46" 6.32" 2.27" 2.65" 2.55" 1.84" 200 PSI 5.406 lbs.
40C 1200340 4" 4" 10.66" 6.56" 6.64" 2.34" 3.53" 3.43" 1.87" 150 PSI 9.586 lbs.
60C 1200360 6" 6" 16.26" 10.16" 9.50" 2.70" 5.53" 5.43" 2.19" 75 PSI 20.53 lbs.
80C 1200380** 8" 8" 18.23" 12.13" 9.50" 2.72" 7.53" 7.38" 2.15" 50 PSI 29.732 lbs.

** 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
