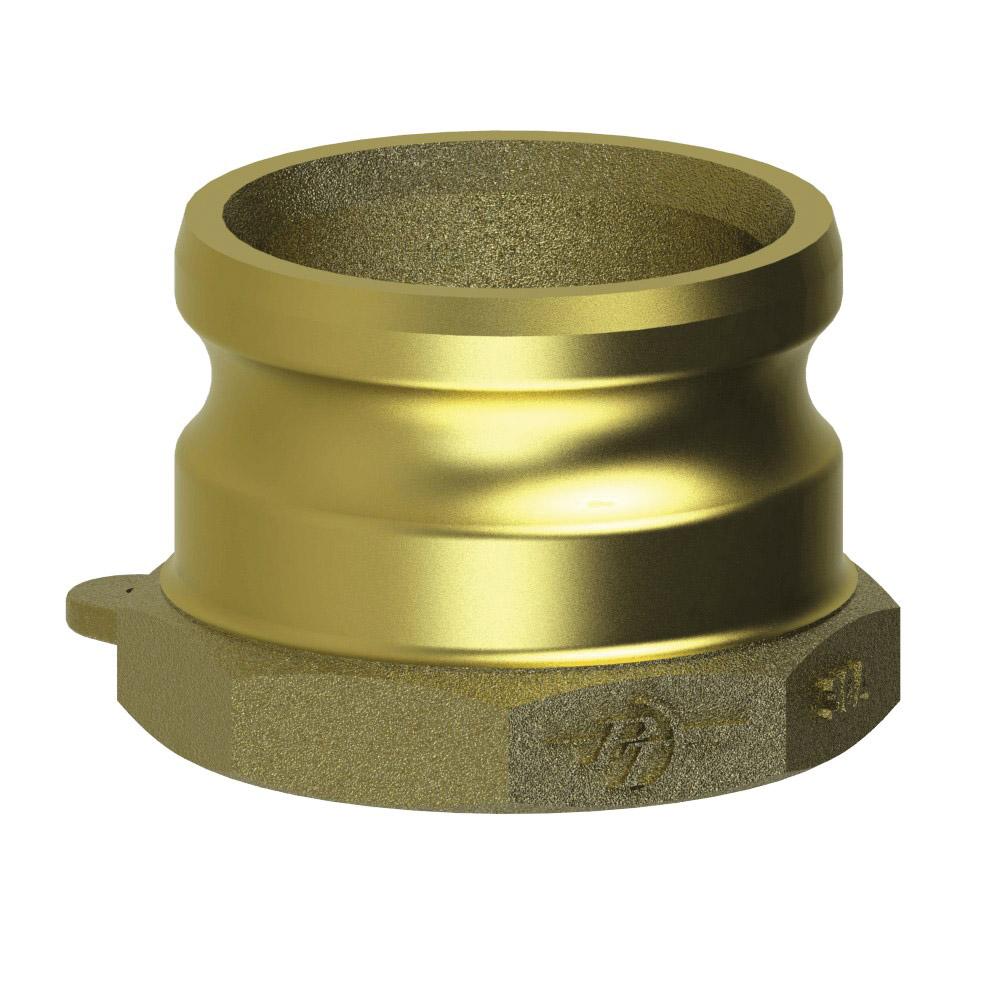

1200120 (20A) by PT-Coupling | Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | Brass

1200120 (20A) by PT-Coupling | Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | Brass

Sale price$75.17

PT Coupling
Cam and Groove (Camlock) Adapter | Type A | Adapter x Female NPT Thread | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $70.66
20–59 $63.89
60+ $56.38
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 2in Male Cam & Groove
  • 2in Female NPT
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part Name Item # Adapter
Size		 Thread
(Female NPT)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
E05A 1200101 1/2" 1/2" 1.60" 0.53" 1.12" - 1.03" 250 PSI 1.75 lbs.
1/2A 1200105 3/4" 1/2" 1.62" 0.66" 1.49" - 0.97" 250 PSI 0.38 lbs.
07A 1200107 3/4" 3/4" 1.62" 0.75" 1.49" - 0.97" 250 PSI 0.29 lbs.
10A 1200110 1" 1" 1.91" 0.88" 1.76" 0.34 1.19" 250 PSI 0.51 lbs.
12A 1200112 1-1/4" 1-1/4" 2.16" 1.04" 2.19" 0.34" 1.44" 250 PSI 0.82 lbs.
15A 1200115 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 1.48" 250 PSI 1.02 lbs.
20A 1200120 2" 2" 2.54" 1.72" 2.92" 0.31" 1.75" 250 PSI 1.42 lbs.
25A 1200125 2-1/2" 2-1/2" 2.75" 2.14" 3.49" 0.27" 1.75" 200 PSI 1.965 lbs.
30A 1200130 3" 3" 2.84" 2.80" 4.22" 0.44" 1.84" 200 PSI 2.53 lbs.
40A 1200140 4" 4" 3.16" 3.78" 5.41" 0.39" 1.87" 150 PSI 4.575 lbs.
50A 1200150 5" 5" 3.22" 4.79" 6.49" 0.35" 1.97" 75 PSI 6.19 lbs.
60A 1200160 6" 6" 3.35" 5.90" 7.70" 0.60" 2.19" 75 PSI 8.145 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F
