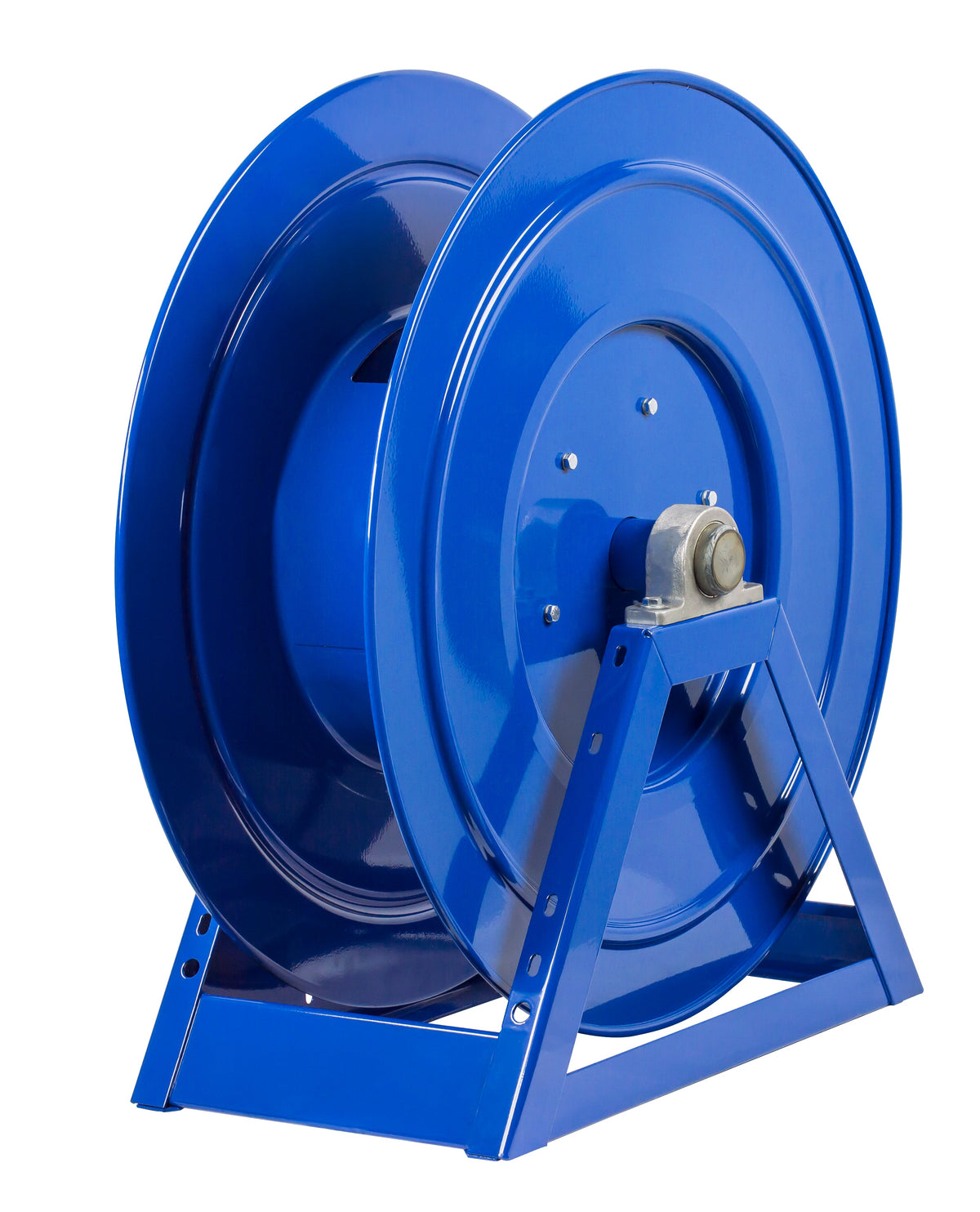

1195-1332-C by Coxreels | 1195 Series | 1,000 PSI Hand Crank Hose Reel | 2" Hose ID, 2" FNPT Inlet | Steel | 75ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.

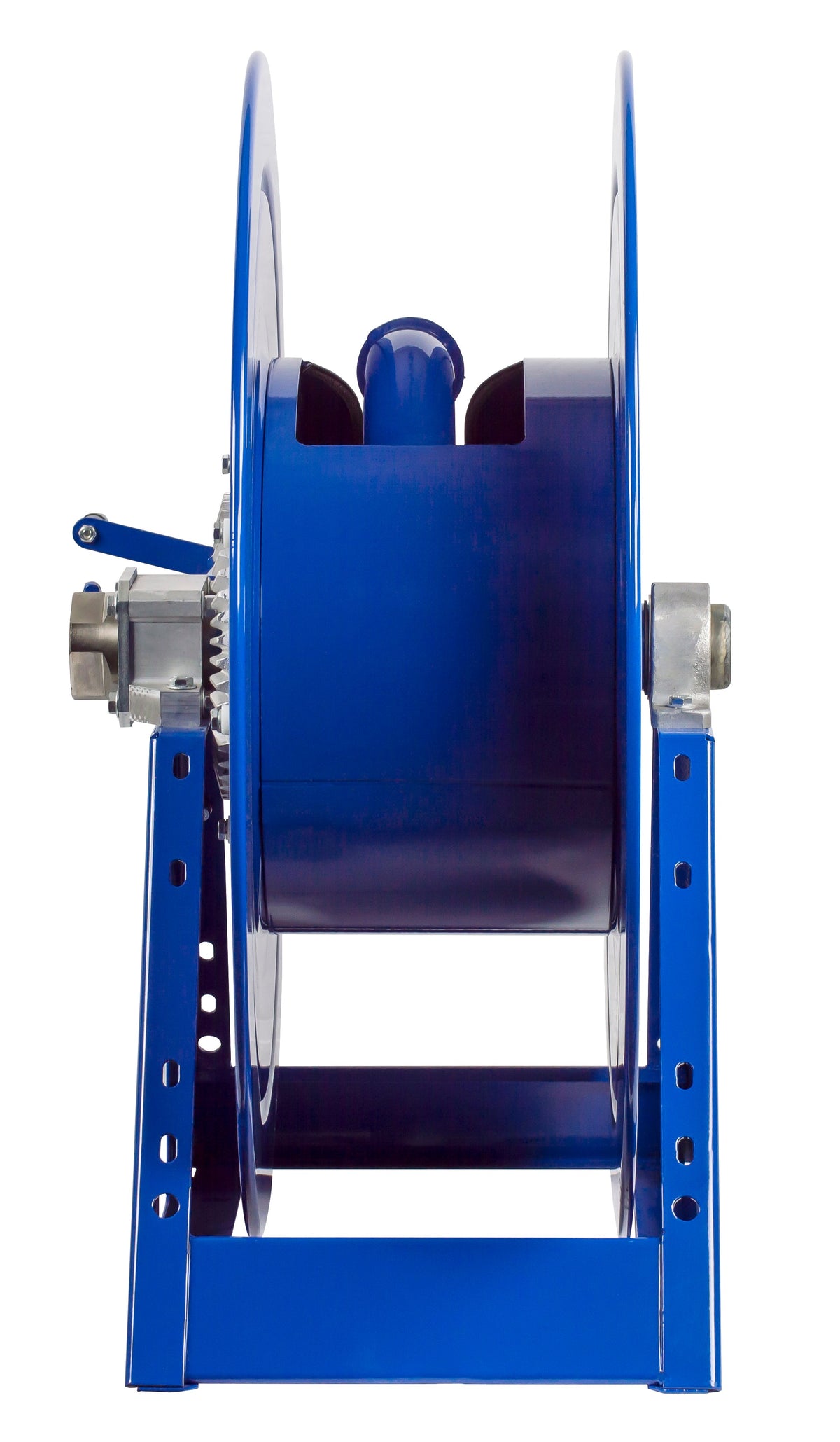

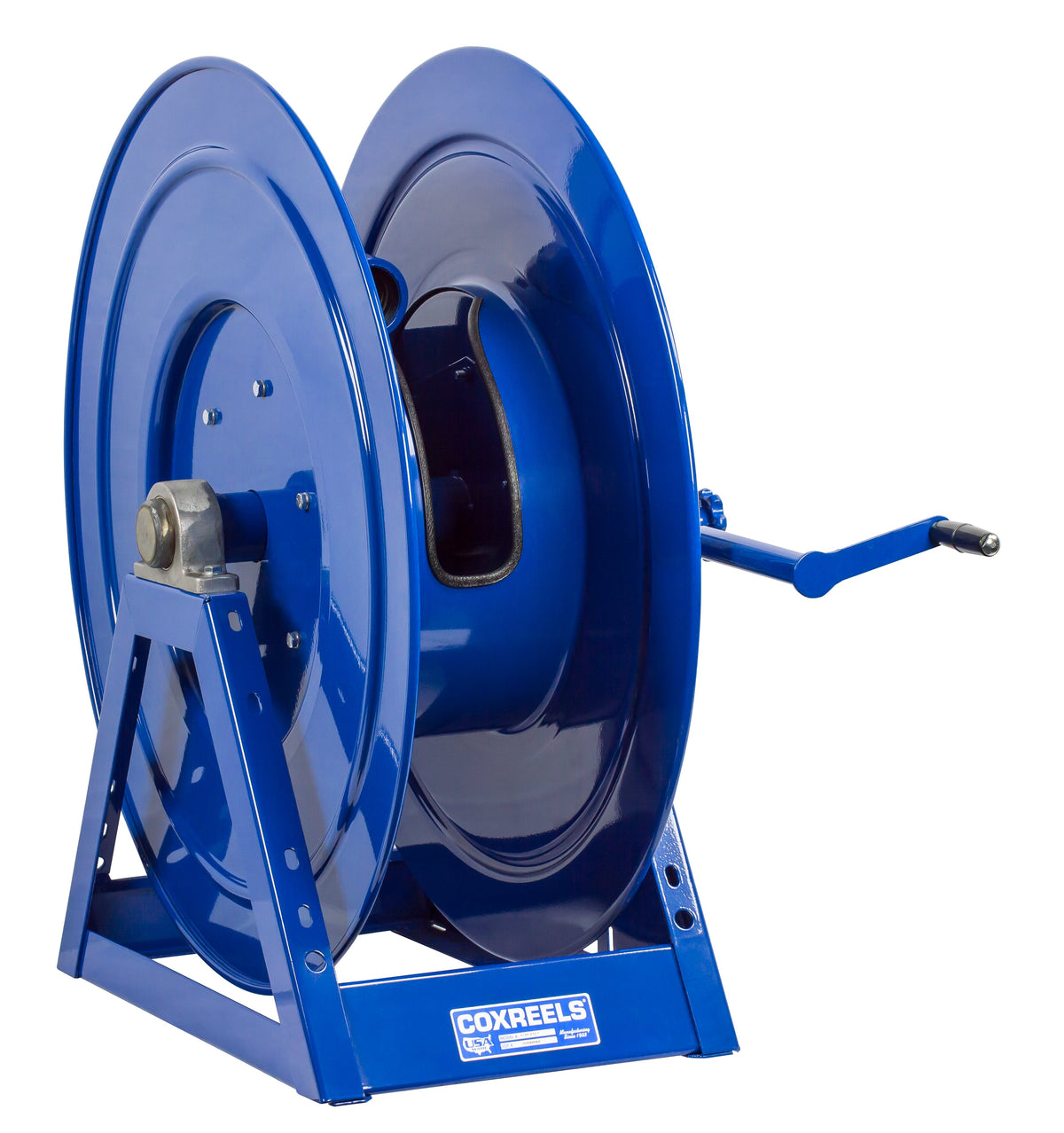

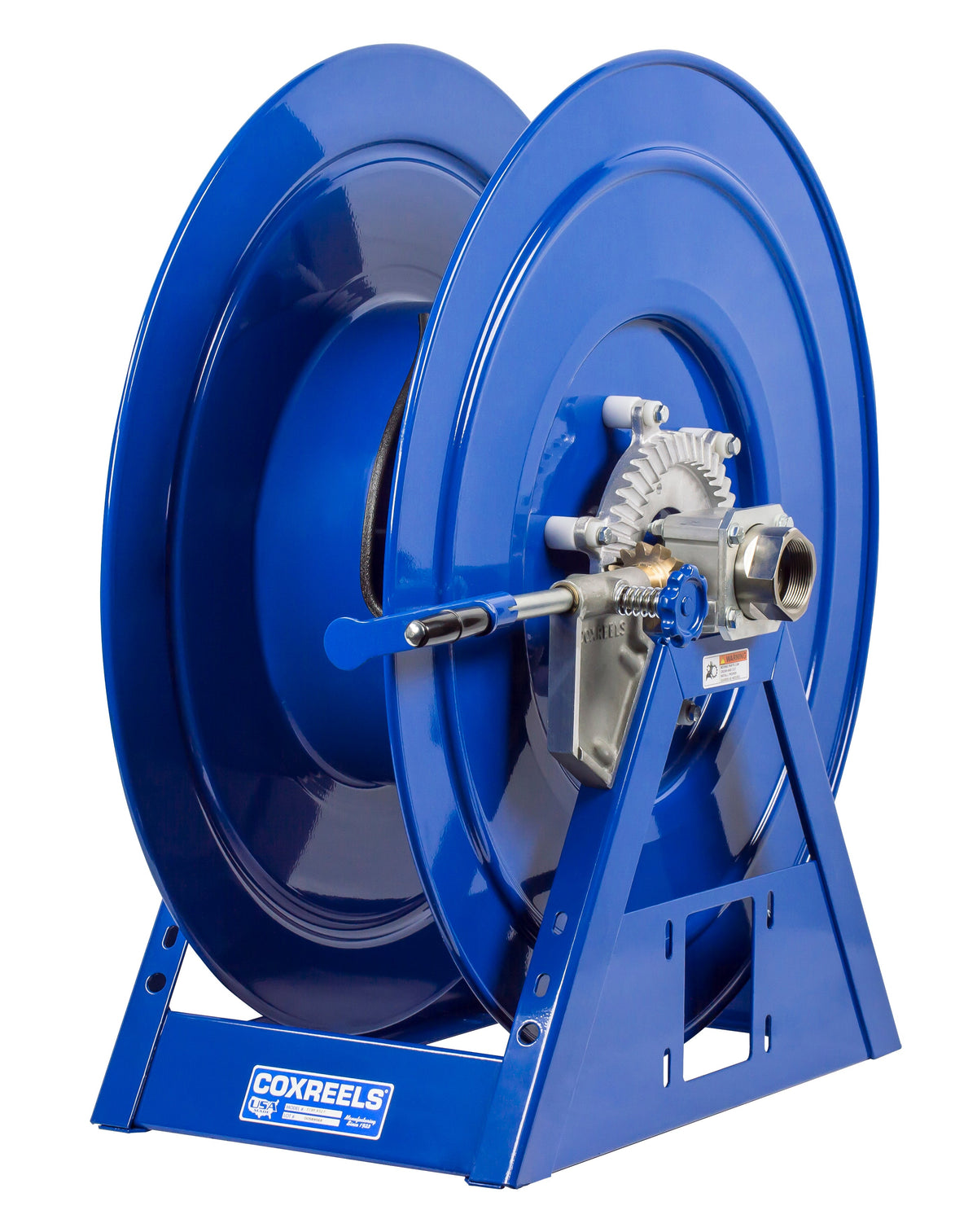

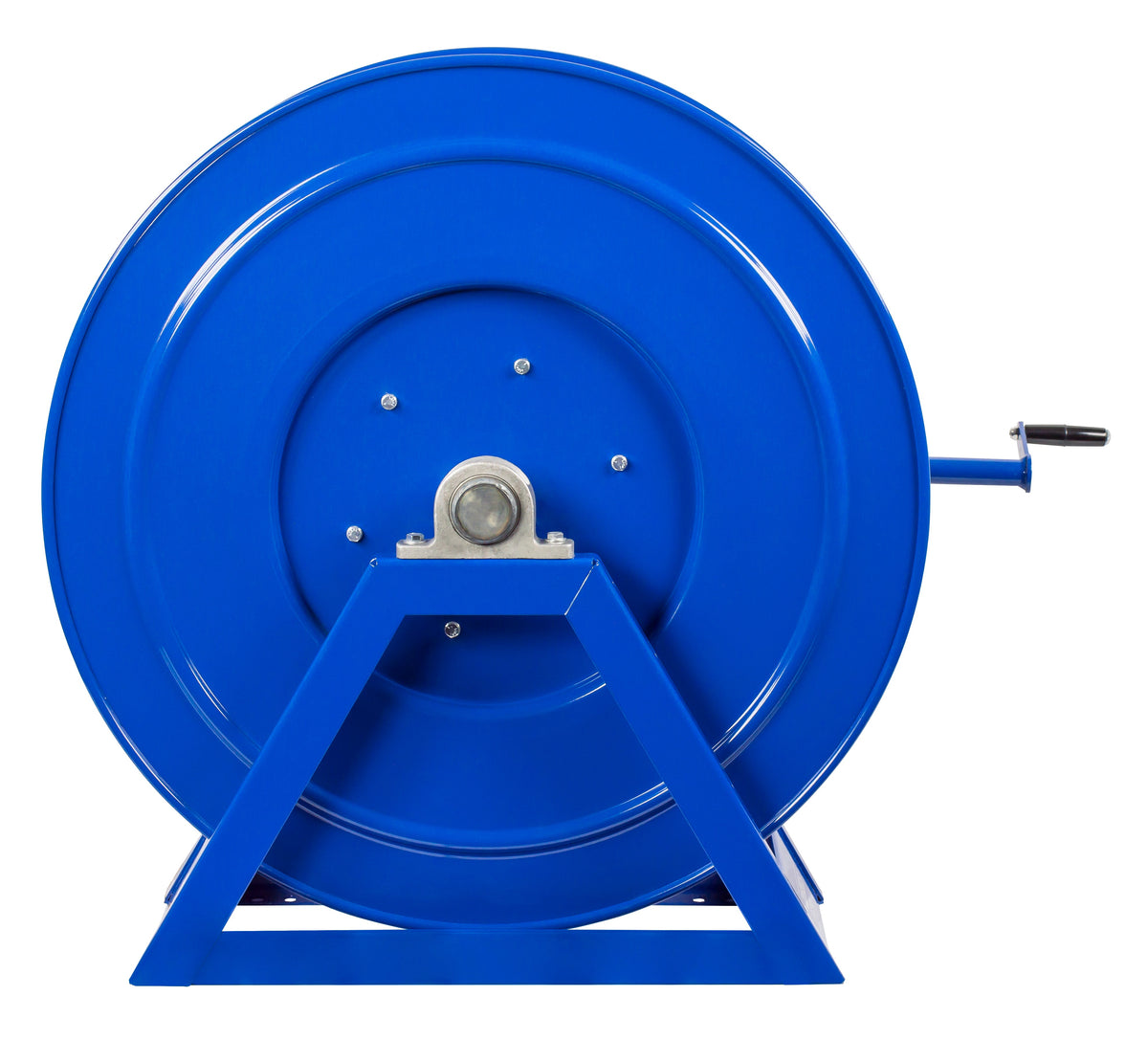

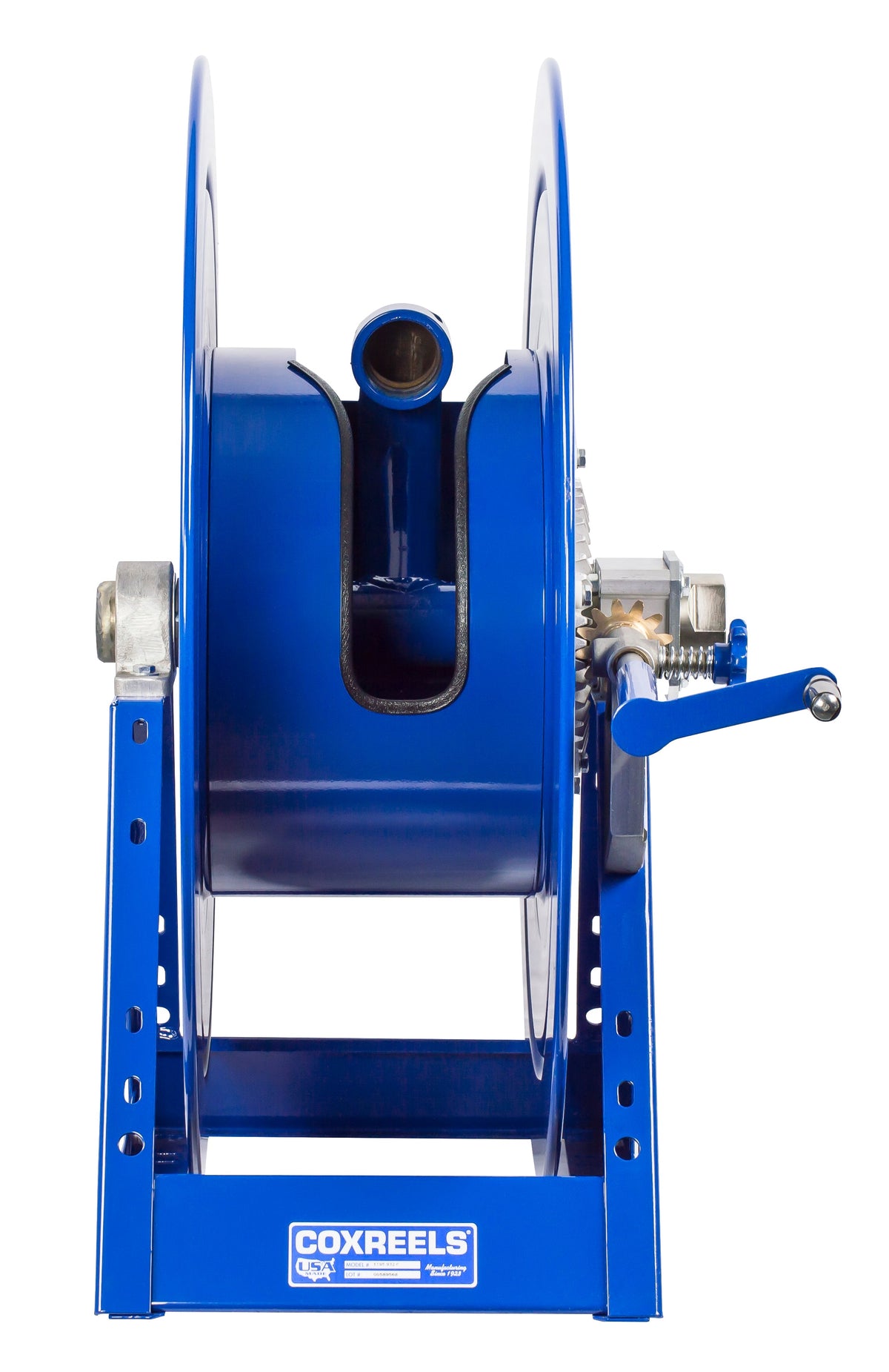

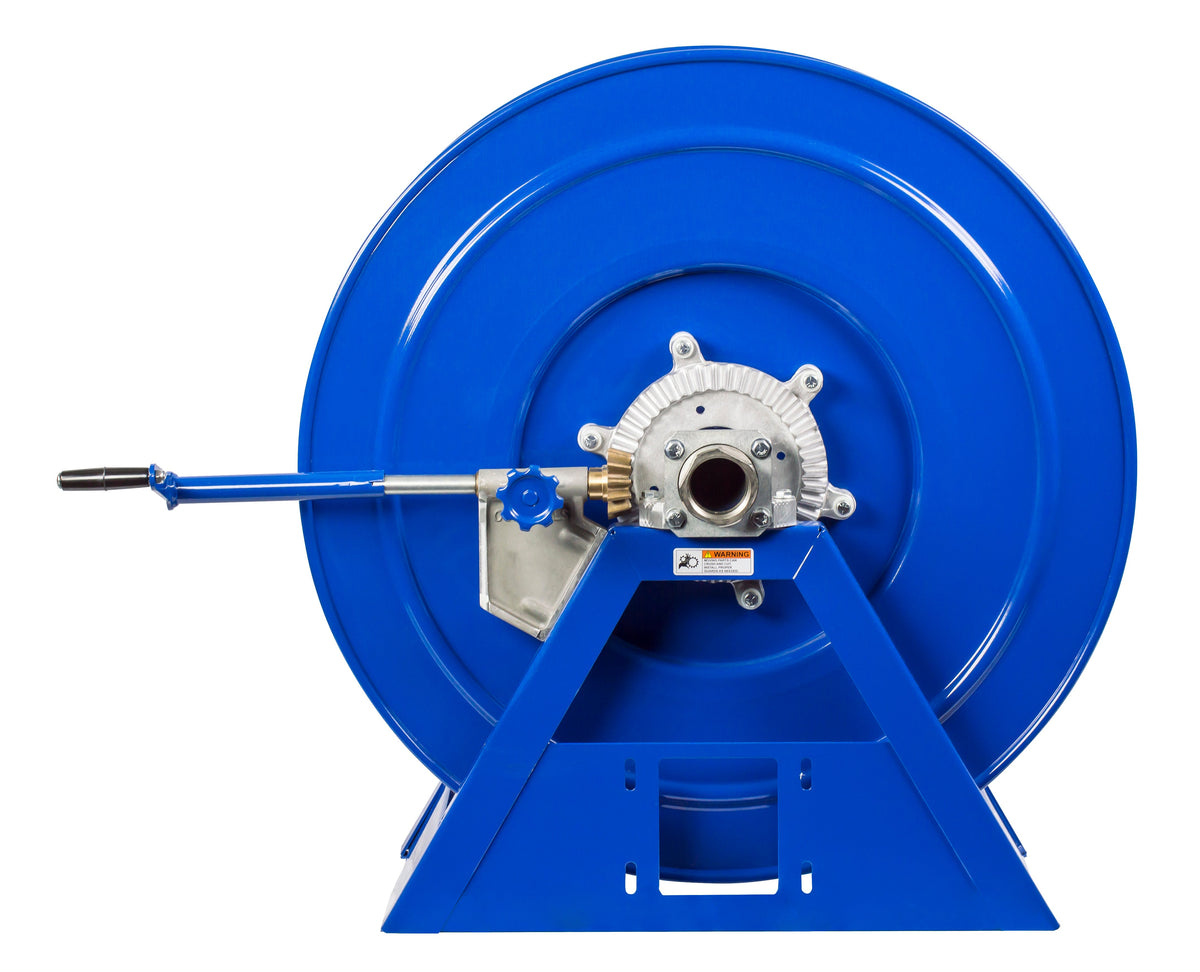

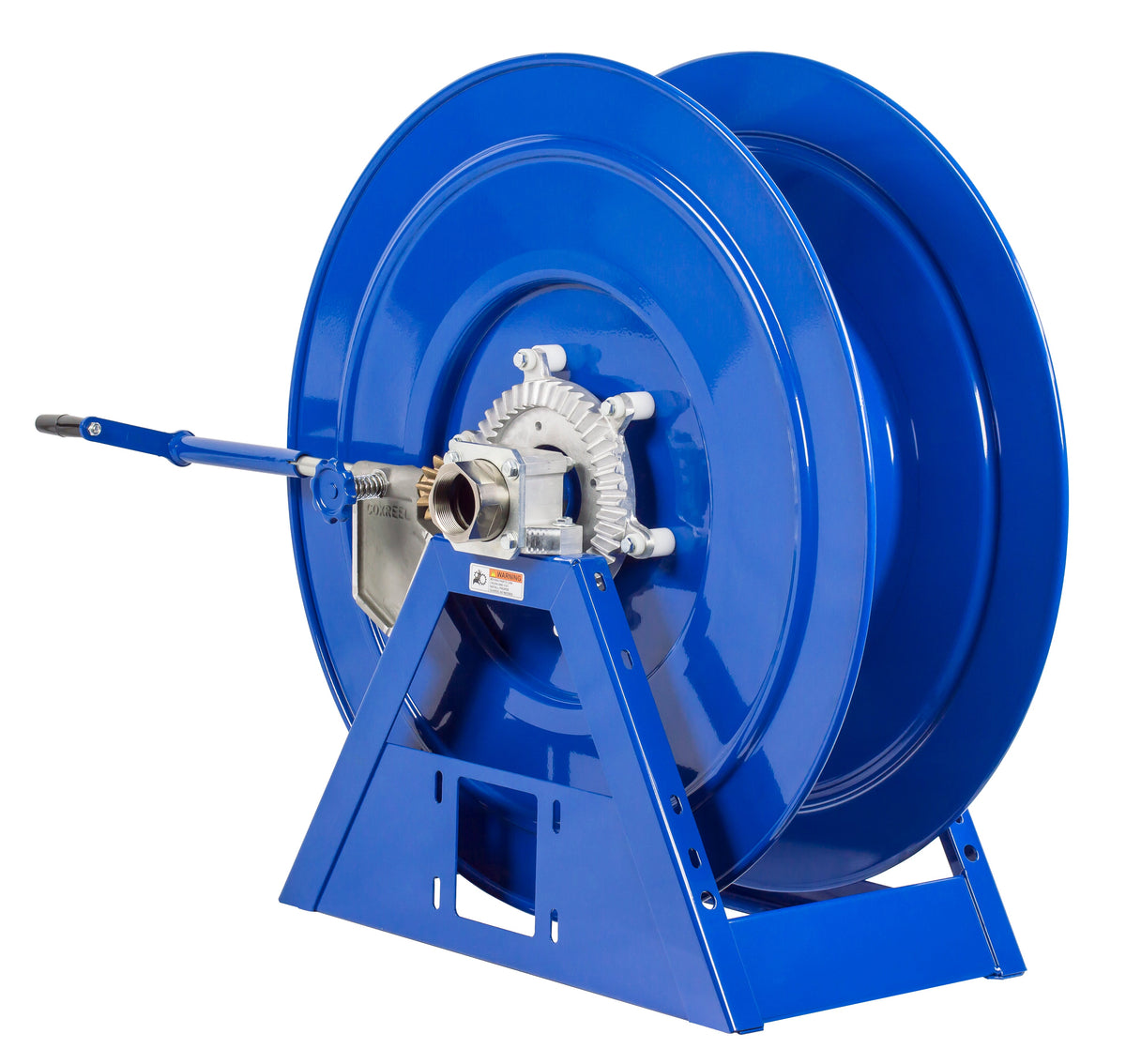

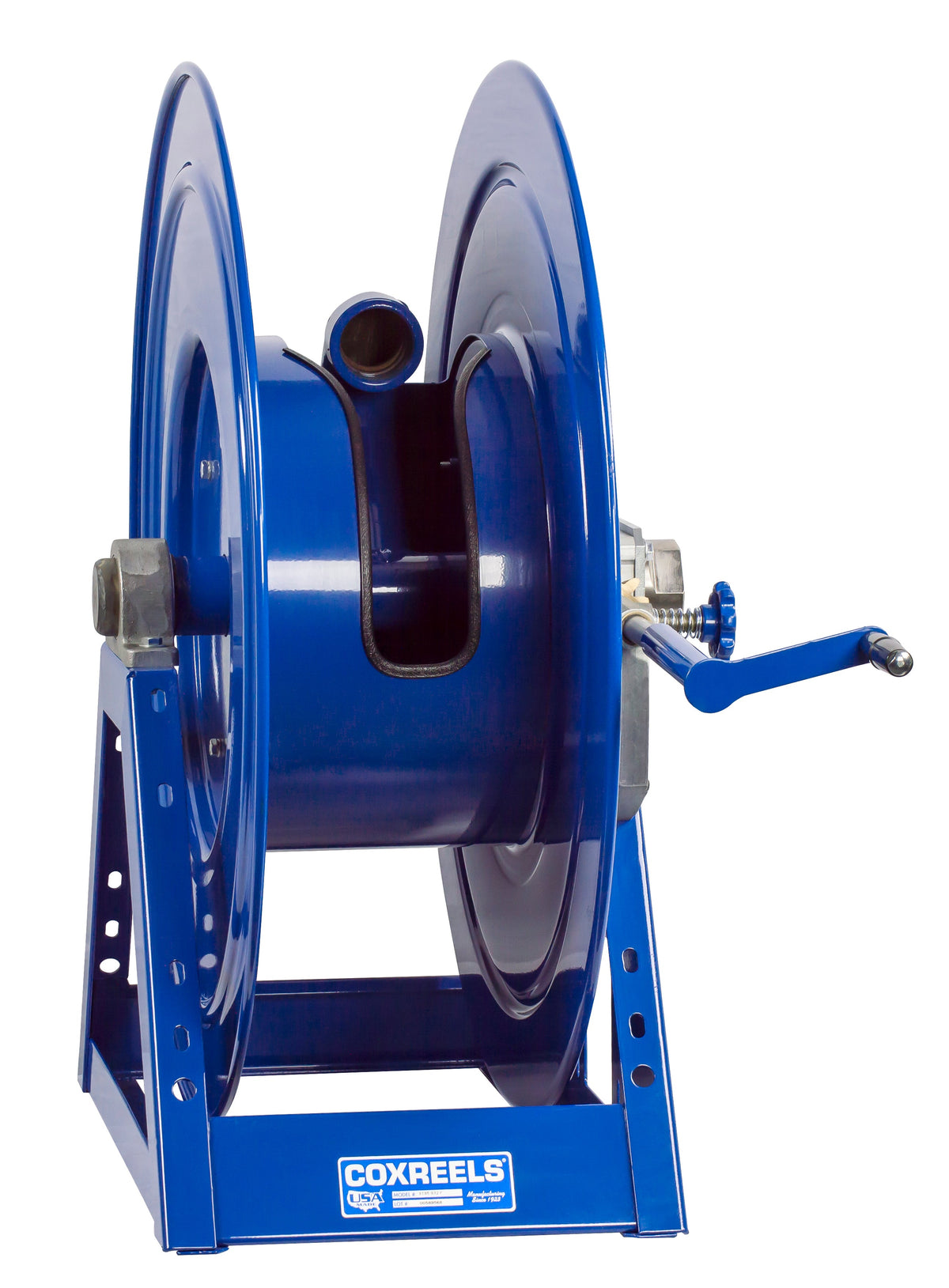

Hand crank hose reel
Coxreels 1195 Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for water, oil and lubrication, fuel delivery, high-flow watering and chemical fluid transfer, rated to 1,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Water
- Oil & Lubrication
- Fuel Delivery
- High-Flow Watering
- Chemical Fluid Transfer
- High Volume Delivery
- Bulk Liquid Handling
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Electroless Nickel Plated Steel 90° full-flow with Nitrile seals
Inlet
2" FNPT
Max Temperature
250°F
Bearings
Lubricated Horizontal Surface Mount Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanent Lubricated Bearings — Robust lubricated horizontal surface mount bearings for easy rotation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1195-932-C | 2" | 50 ft | 1,000 | 9.5" | 22.75 × 33.25 × 32 |
| 1195-1332-C | 2" | 75 ft | 1,000 | 13.5" | 26.75 × 33.25 × 32 |
| 1195-1728-C | 2" | 60 ft | 1,000 | 17.5" | 33.25 × 30.25 × 28 |
| 1195-2032-C | 2" | 115 ft | 1,000 | 20" | 30.75 × 33.25 × 32 |
| 1195-2428-C | 2" | 90 ft | 1,000 | 24" | 37.25 × 30.25 × 28 |
| 1195-3228-C | 2" | 125 ft | 1,000 | 32" | 45.25 × 30.25 × 28 |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 9.5" | 13.5" | 17.5" | 20" | 24" | 32" |
|---|---|---|---|---|---|---|
| 4-way roller bracket, bottom rewind | 15370-9.5 | 15370-13.5 | 15370-17.5 | 15370-20 | 15370-24 | 15370-32 |
| 4-way roller bracket, top rewind | 15368-1-9.5 | 15368-1-13.5 | 15368-17.5 | 15368-1-20 | 15368-24 | 15368-32 |
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts — fit every model | ||
| 20843 | Spring Loaded Lock Pin | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BUXX | Standard plumbing & 90° ball bearing swivel with Aflas |
| -BWXX | Standard plumbing & 90° ball bearing swivel with Viton |
| -BRXX | Stainless steel plumbing & SS 90° ball bearing swivel with Aflas (304SS) |
| -BSXX | Stainless steel plumbing & SS 90° ball bearing swivel with Viton (304SS) |
| -BTXX | Stainless steel plumbing & SS 90° ball bearing swivel with food grade (304SS) |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BJXX / -BKXX | Standard plumbing & 90˚ stainless steel swivel: Aflas / Viton |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BXCA / -BXCC | Top payout, on reel: bevel crank right / bevel crank left |
| -BXFF / -BXFI | Bottom payout, on reel: bevel crank right / bevel crank left |
| Swivel and motor/crank position | |
| -BXXC | Top payout bevel crank, swivel left, crank right |
| -BXXX | Top payout bevel crank, swivel right, crank left |
| -BXAI | Bottom payout bevel crank, swivel left, crank right |
| -BXAF | Bottom payout bevel crank, swivel right, crank left |
7
Where can I find product documents?
1195 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
