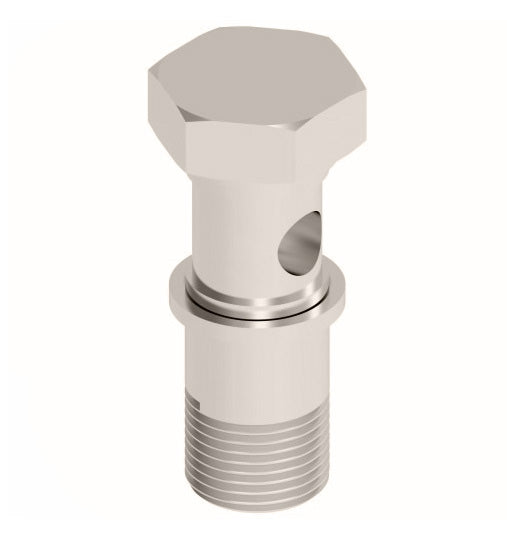

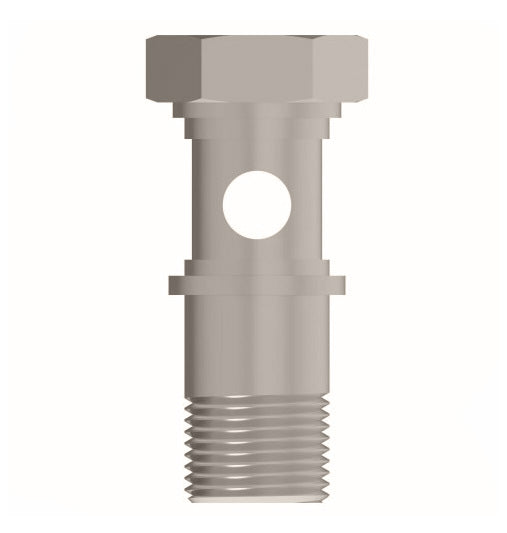

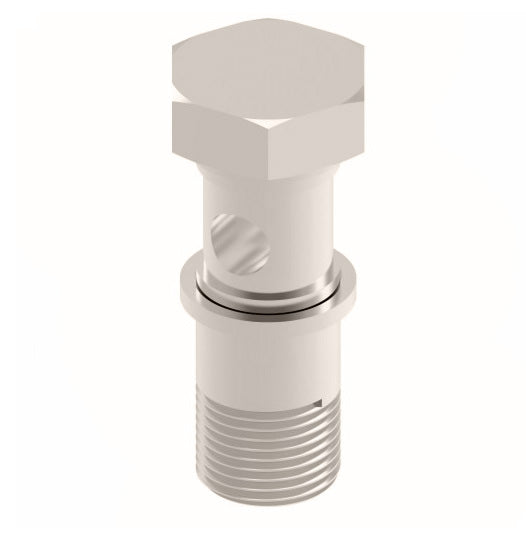

1184X1X2 by Danfoss | Push to Connect Adapter | Stud Manifold | 1/8" Male Pipe | Nickel Plated Brass
1184X1X2 by Danfoss | Push to Connect Adapter | Stud Manifold | 1/8" Male Pipe | Nickel Plated Brass
1184X1X2 by Danfoss | Push to Connect Adapter | Stud Manifold | 1/8" Male Pipe | Nickel Plated Brass

1184X1X2 by Danfoss | Push to Connect Adapter | Stud Manifold | 1/8" Male Pipe | Nickel Plated Brass

Minimum Order Quantity: 5 Units

Sale price$7.08

Aeroquip® by Danfoss
Push to Connect Adapter - Stud Manifold
Buy More, Save More!
Quantity Price Each
20–39 $6.66
40–79 $6.02
80+ $5.31
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Nickel Plated Brass
Compatible Series:
  • PT230 Series
  • TP160 Series
  • PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Male Pipe Thread
A		 H L S SW
1184X1XA 10-32* 0.16" 0.71" 0.18" 0.32
1184X1X2 1/8" 0.24" 1.06" 0.34" 0.55
1184X1X6 3/8" 0.35" 1.18" 0.34 0.75

* UNF Thread. Seals with nylon washer (included).

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
