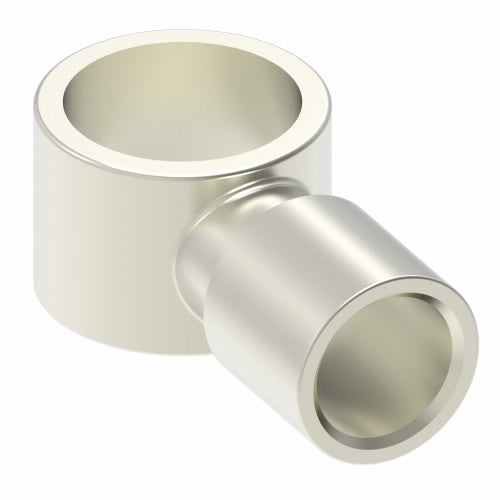

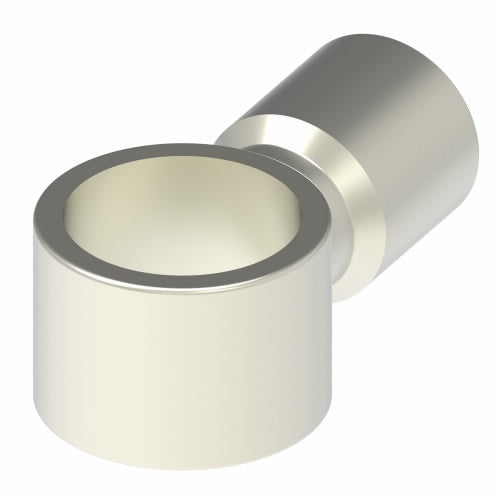

1183XAXA by Danfoss | Push to Connect Adapter | Female Banjo | 10-32 Female UNF | Nickel Plated Brass
1183XAXA by Danfoss | Push to Connect Adapter | Female Banjo | 10-32 Female UNF | Nickel Plated Brass
1183XAXA by Danfoss | Push to Connect Adapter | Female Banjo | 10-32 Female UNF | Nickel Plated Brass

1183XAXA by Danfoss | Push to Connect Adapter | Female Banjo | 10-32 Female UNF | Nickel Plated Brass

Sale price$8.54

Aeroquip® by Danfoss
Push to Connect Adapter - Female Banjo
Buy More, Save More!
Quantity Price Each
10–39 $8.03
40–79 $7.26
80+ $6.41
Discounts applied in cart/checkout.

Product Data:

Shape:

Banjo

Material(s):
  • Nickel Plated Brass
Compatible Series:
  • PT230 Series
  • TP160 Series
  • PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Female Pipe Thread
A		 V O M W
1183XAXA 10-32* 10-32 0.35" 0.41" 0.35"
1183X2X2 1/8" 1/8" 0.57" 0.79" 0.55"
1183X4X4 1/4" 1/4" 0.57" 1.00" 0.71"
1183X6X6 3/8" 3/8" 0.57" 1.10" 0.83"

* UNF Thread. Seals with nylon washer (included).
