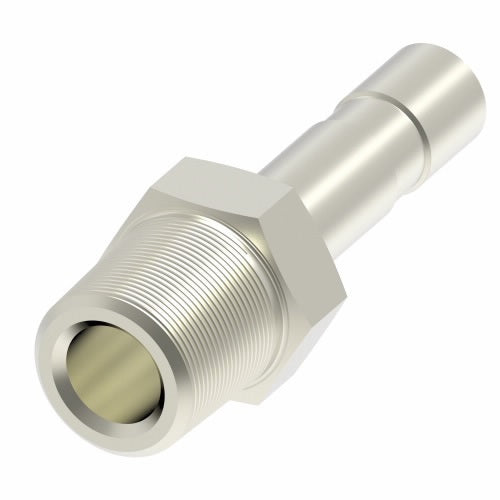

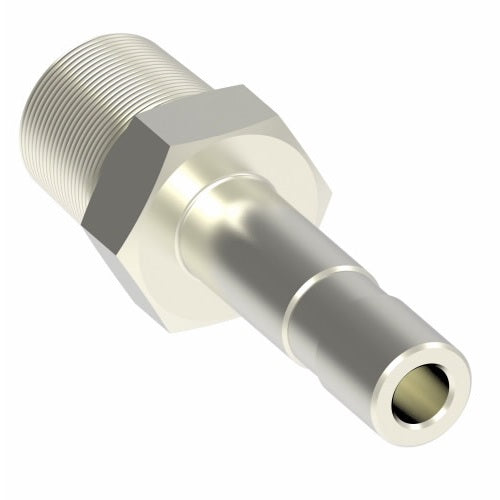

1180X8MX4PP by Danfoss | Metric Push to Connect Adapter | Stem Adapter | 8mm Tube OD x 1/4" Male BSPP | Nickel Plated Brass
1180X8MX4PP by Danfoss | Metric Push to Connect Adapter | Stem Adapter | 8mm Tube OD x 1/4" Male BSPP | Nickel Plated Brass
1180X8MX4PP by Danfoss | Metric Push to Connect Adapter | Stem Adapter | 8mm Tube OD x 1/4" Male BSPP | Nickel Plated Brass

1180X8MX4PP by Danfoss | Metric Push to Connect Adapter | Stem Adapter | 8mm Tube OD x 1/4" Male BSPP | Nickel Plated Brass

Minimum Order Quantity: 5 Units

Sale price$7.75

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Stem Adapter
Buy More, Save More!
Quantity Price Each
20–39 $7.29
40–79 $6.59
80+ $5.81
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 1/4in Male BSPP
Material(s):
  • Nickel Plated Brass
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPP
(mm)		 H T L SW
1180X5MX2PP 5mm 1/8" 5.5mm 18.0mm 29.3mm 12mm
1180X8MX4PP 8mm 1/4" 7.0mm 20.5mm 33.5mm 14mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
