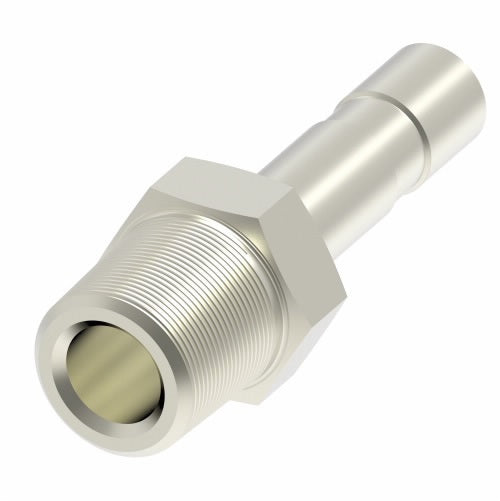

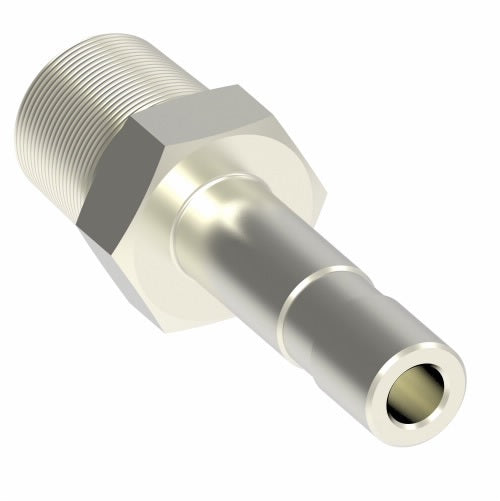

1180X4 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 1/4" Tube Insert | Nickel Plated Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Push to Connect Adapter - Stem Adapter
Male Pipe x Tube Insert
Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.21 |
| 40–79 | $4.71 |
| 80+ | $4.16 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Vacuum: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Nickel Plated Brass Part Number |
Tube O.D. | Male Pipe | H | T | L | SW (mm) |
| 1180X2 | 1/8" | 1/8" | 0.37" | 0.65" | 1.20" | 12 |
| 1180X2X4 | 1/8" | 1/4" | 0.51" | 0.65" | 1.36" | 14 |
| 1180X2.5 | 5/32" | 1/8" | 0.37" | 0.65" | 1.20" | 12 |
| 1180X2.5X4 | 5/32" | 1/4" | 0.51" | 0.65" | 1.36" | 14" |
| 1180X4 | 1/4" | 1/8" | 0.37" | 0.71" | 1.26" | 12 |
| 1180X4X4 | 1/4" | 1/4" | 0.51" | 0.71" | 1.42" | 14 |
| 1180X5 | 5/16" | 1/8" | 0.37" | 0.81" | 1.36" | 12 |
| 1180X5X4 | 5/16" | 1/4" | 0.51" | 0.81" | 1.34" | 14" |
| 1180X6 | 3/8" | 1/4" | 0.51" | 0.91" | 1.61" | 17" |
| 1180X6X6 | 3/8" | 3/8" | 0.51" | 0.91" | 1.61" | 19" |
| 1180X8 | 1/2" | 3/8" | 0.51" | 0.94" | 1.65" | 19" |
| 1180X8X8 | 1/2" | 1/2" | 0.71" | 0.94" | 1.87" | 22" |
