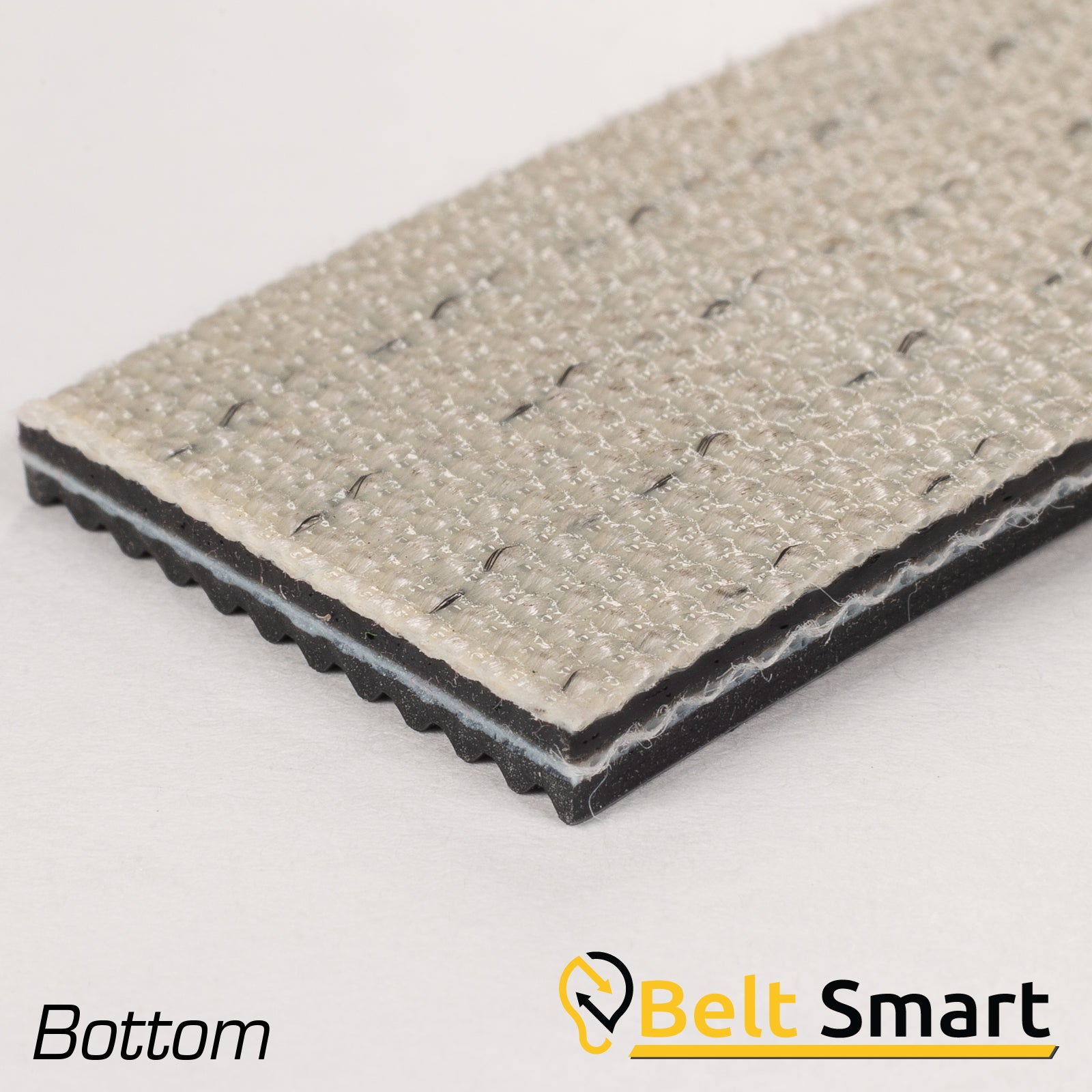

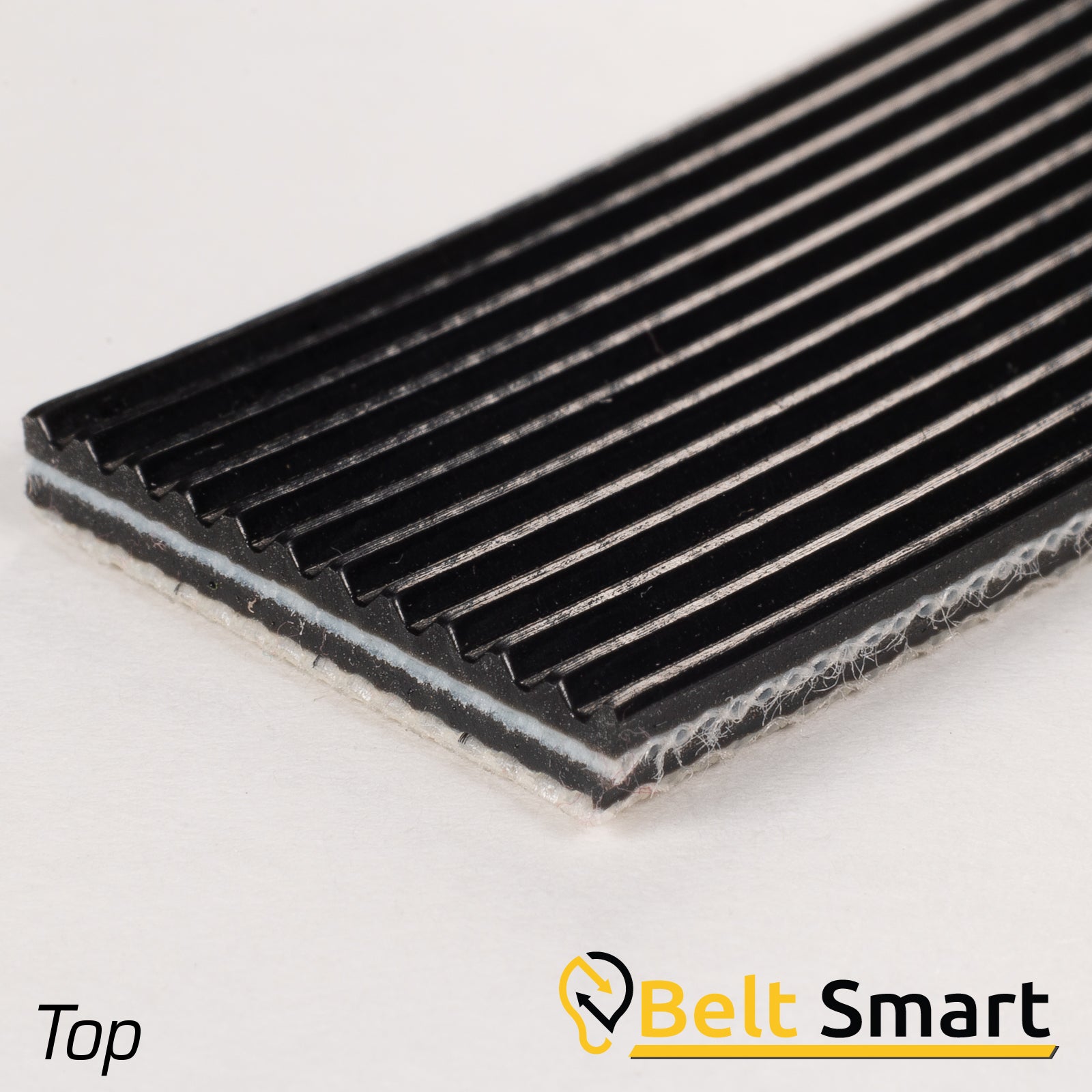

BS118 - #118 Beltservice 2 Ply Black Poly CR67 PVC LG x Bare QW AS Conveyor Belt
BS118 - #118 Beltservice 2 Ply Black Poly CR67 PVC LG x Bare QW AS Conveyor Belt
Beltservice

BS118 - #118 Beltservice 2 Ply Black Poly CR67 PVC LG x Bare QW AS Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Incline/Decline Conveying
  • Speed Sorting Indexing Conveyors
Features:
  • 118 is a premium incline / decline belt. Made of high grade PVC, it is abrasion resistant and antistatic.
  • 118FR is fire resistant and antistatic, with a quiet weave (QW) bottom cover.
  • 118R offers a high grip .18 in.-thick red top cover, used on speed sorting indexing conveyors and incline/decline applications.
2 Ply Black Poly CR67
PVC LG x Bare QW AS
Pt No.: 118		 E10/2 0/V14 Black
LG x QW AS FR
Pt No.: 118FR		 E14/2 0/V45 Red
LG x B AS
Pt No.: 118R
Thickness .118" N/A N/A
Covers LG x B N/A N/A
Carcass Mono/Multi N/A N/A
Elongation @ 1% 67 lbs. N/A N/A
Approx. Weight
Lbs. Per Inch Width		 .059 lbs. N/A N/A
Min. Pulley Diameter 2" N/A N/A
Temperature Range 10 deg. F / 180 deg. F N/A N/A
Coefficient of Friction .22 N/A N/A
Anti-Static Yes Yes Yes
Clipper Lace #36 N/A N/A
AS = Anti-Static
Multi = Multifilament
Mono = Monofilament
FR = Fire Resistant
B = Bare
LG = Longitudinally Grooved
QW = Quiet Weave
