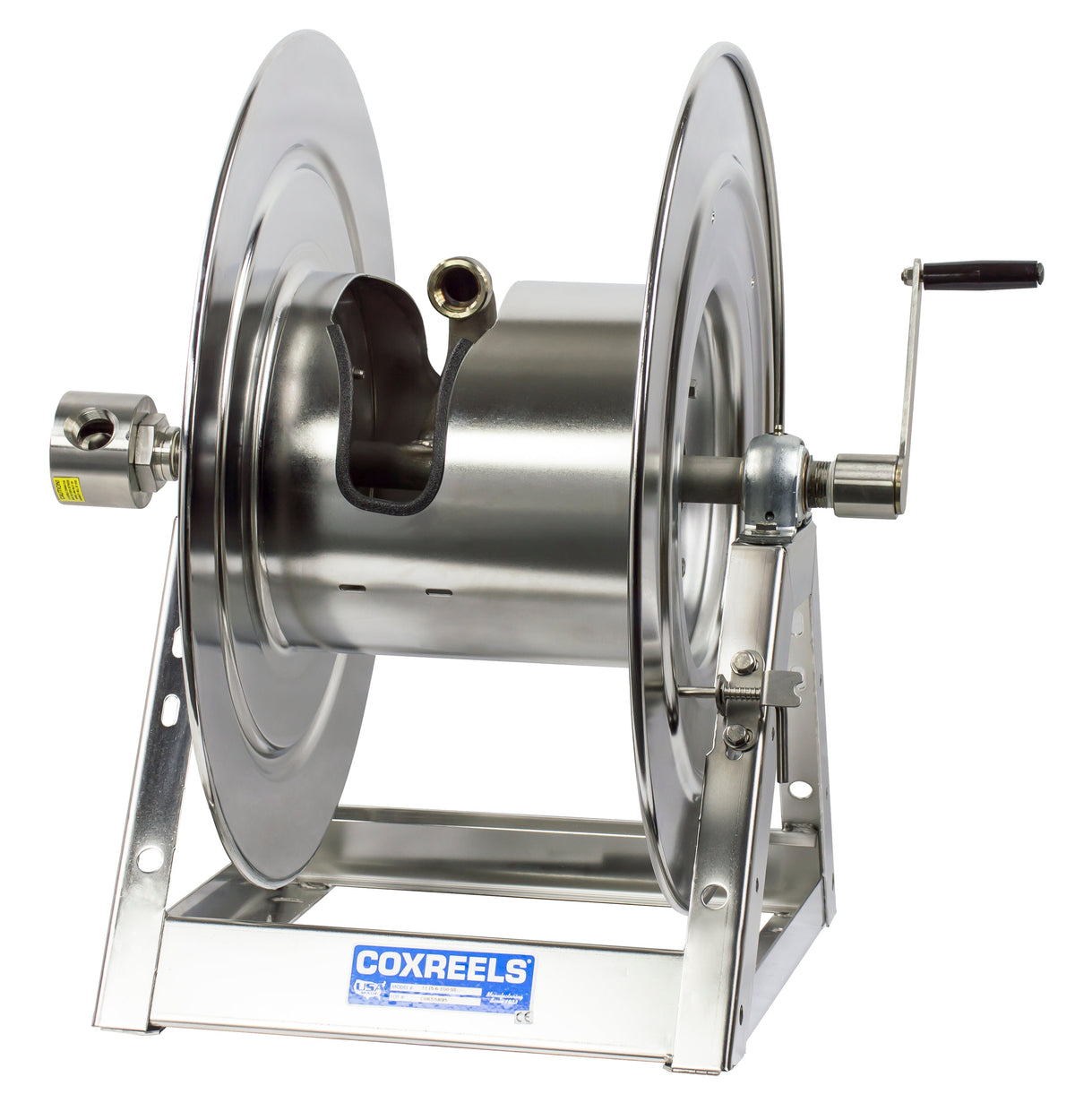

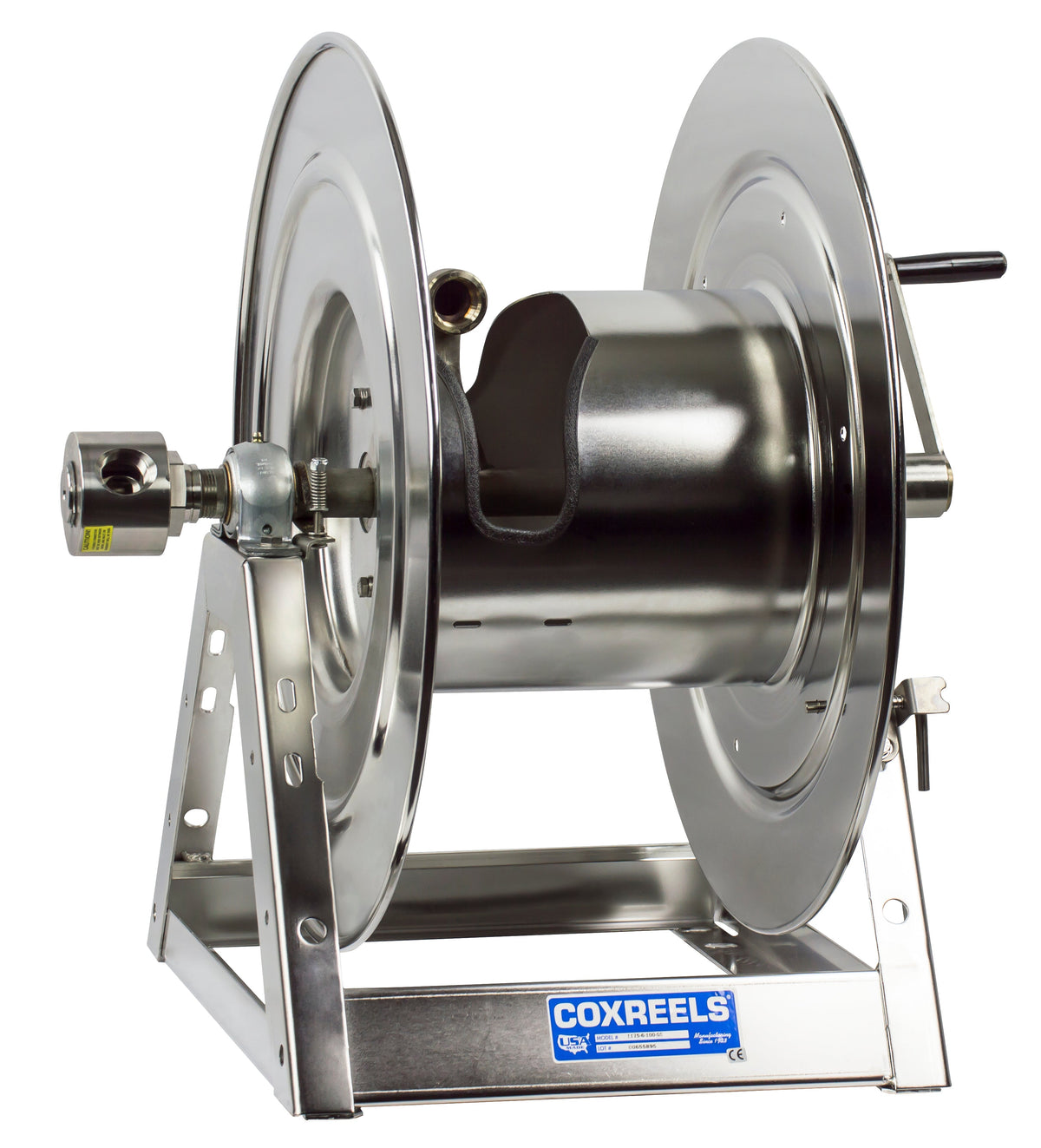

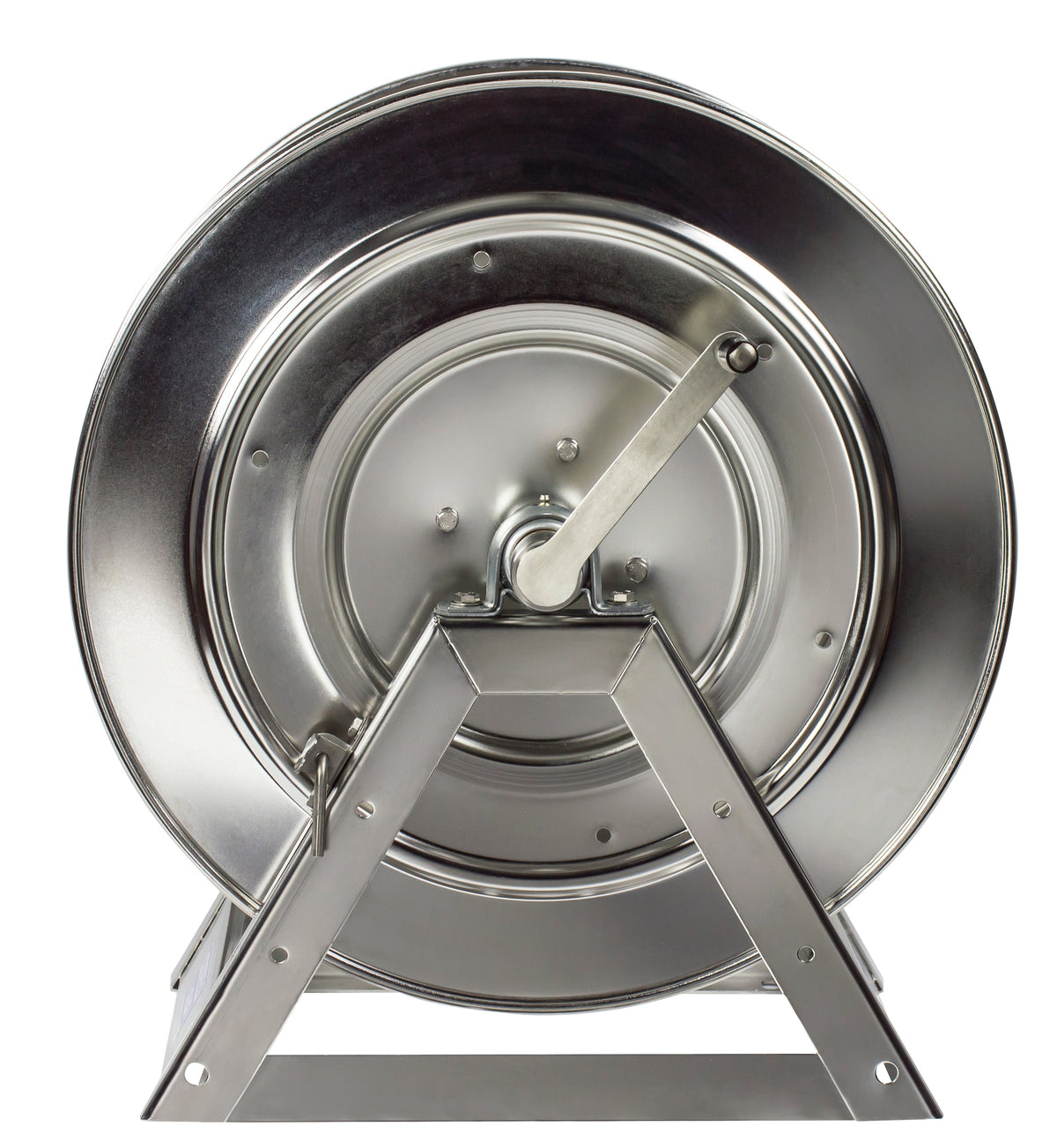

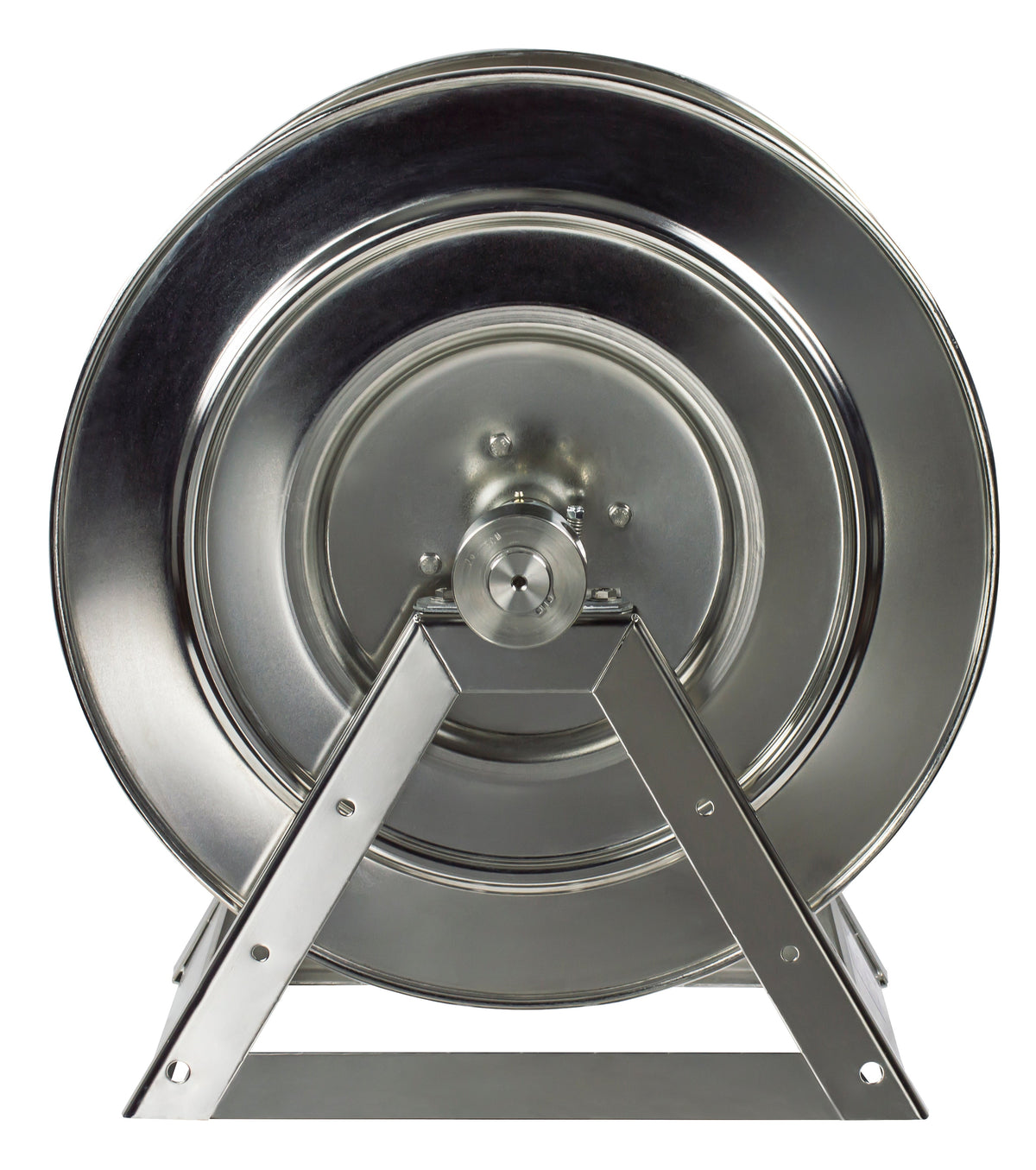

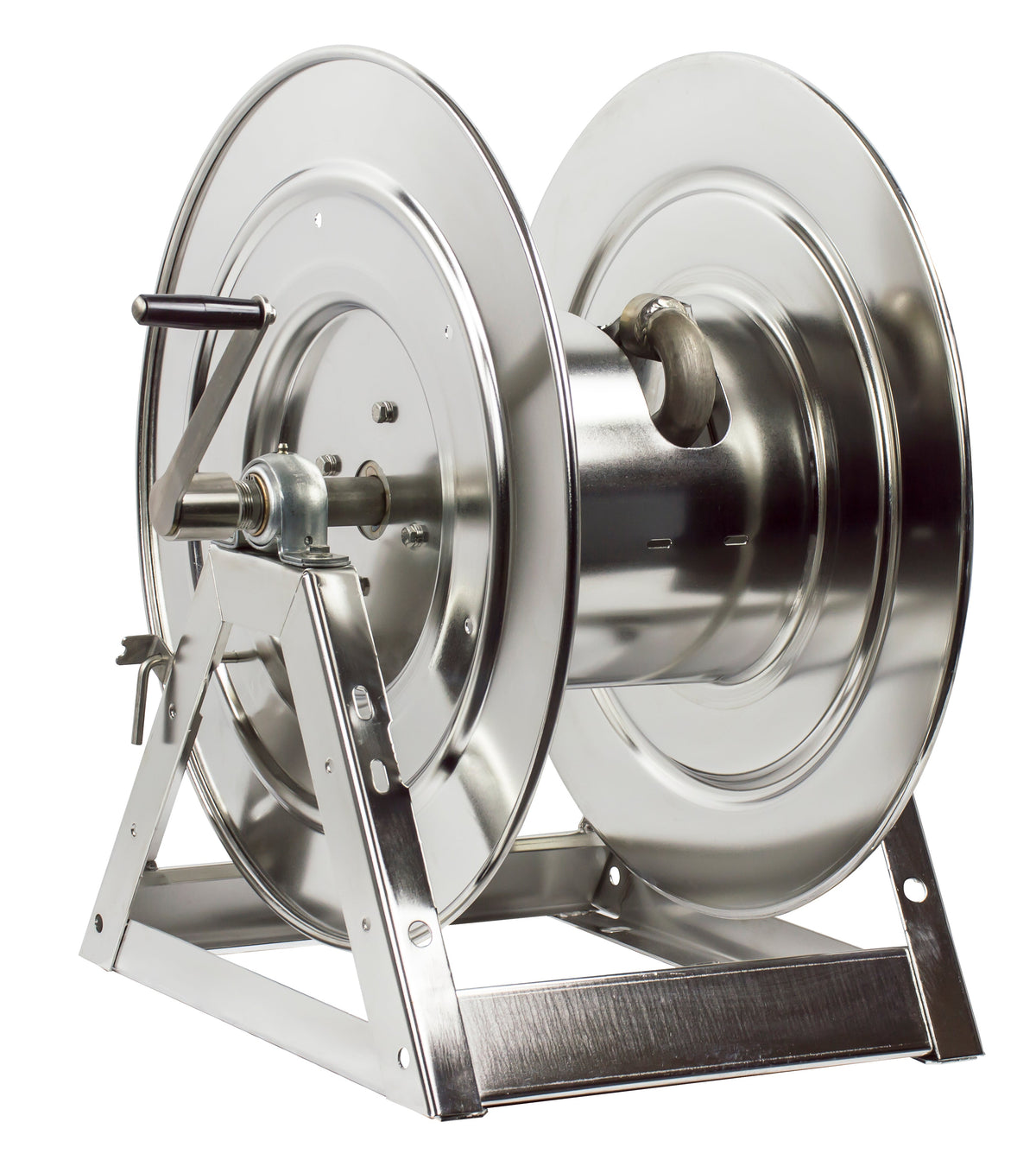

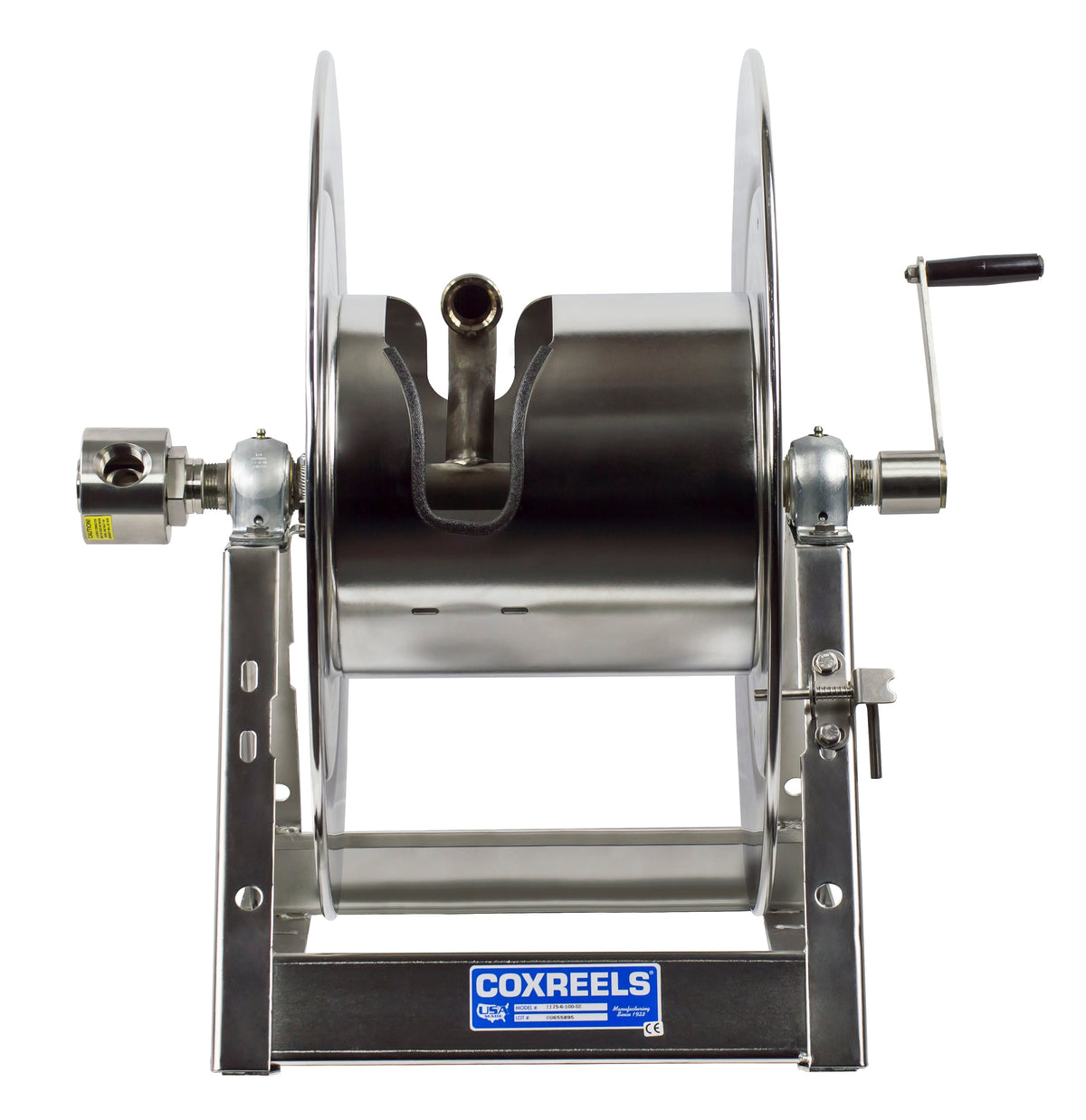

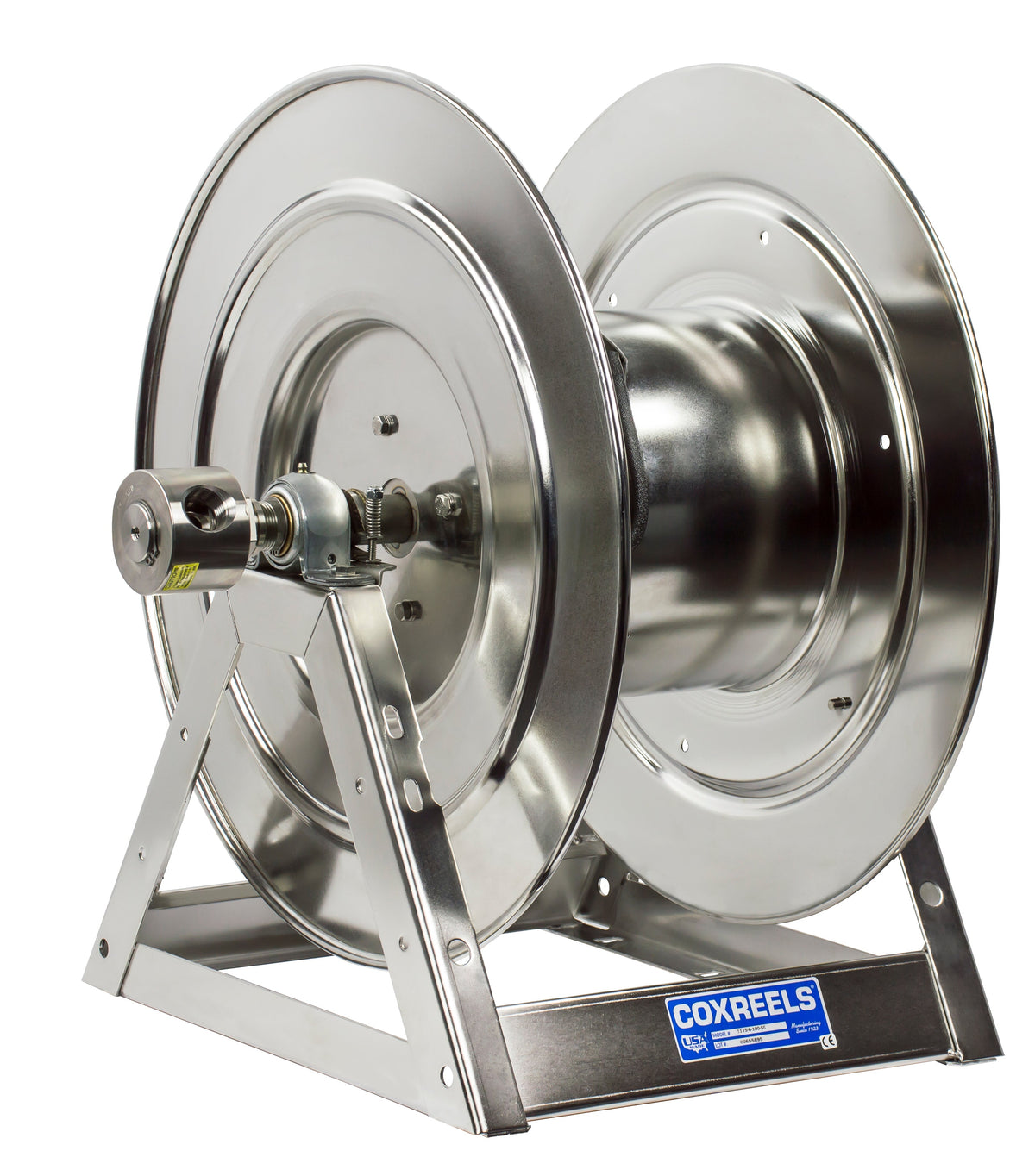

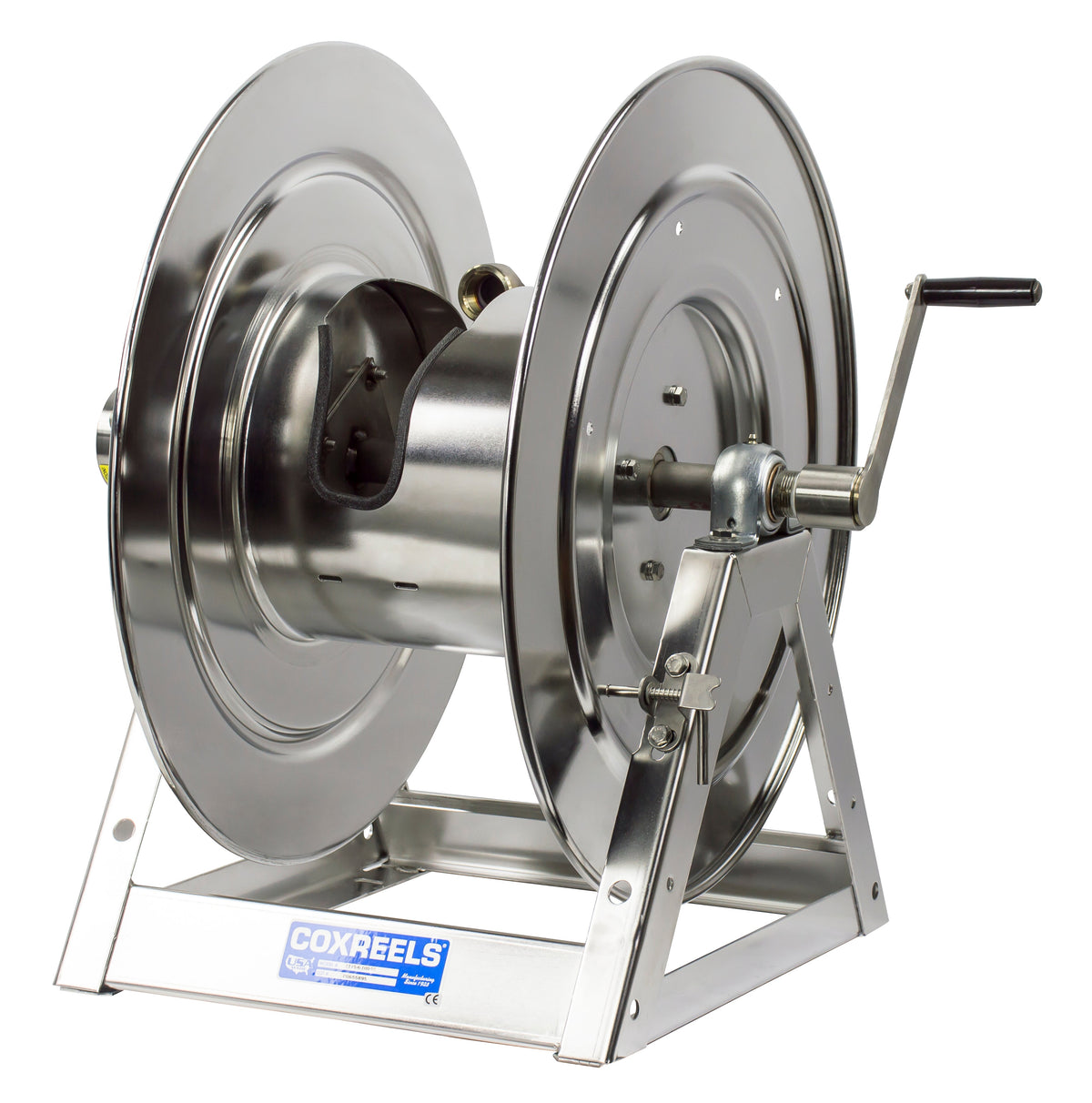

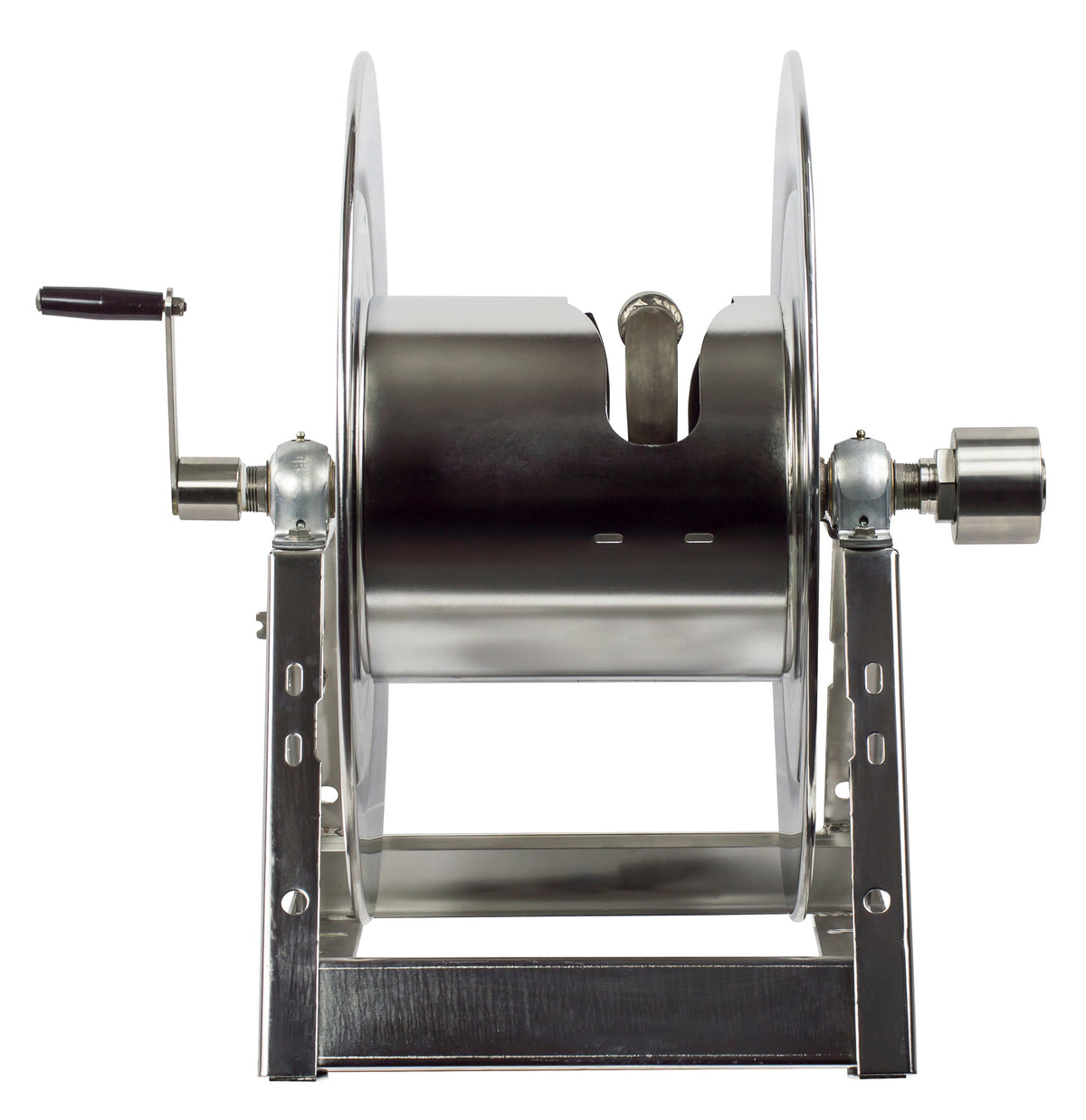

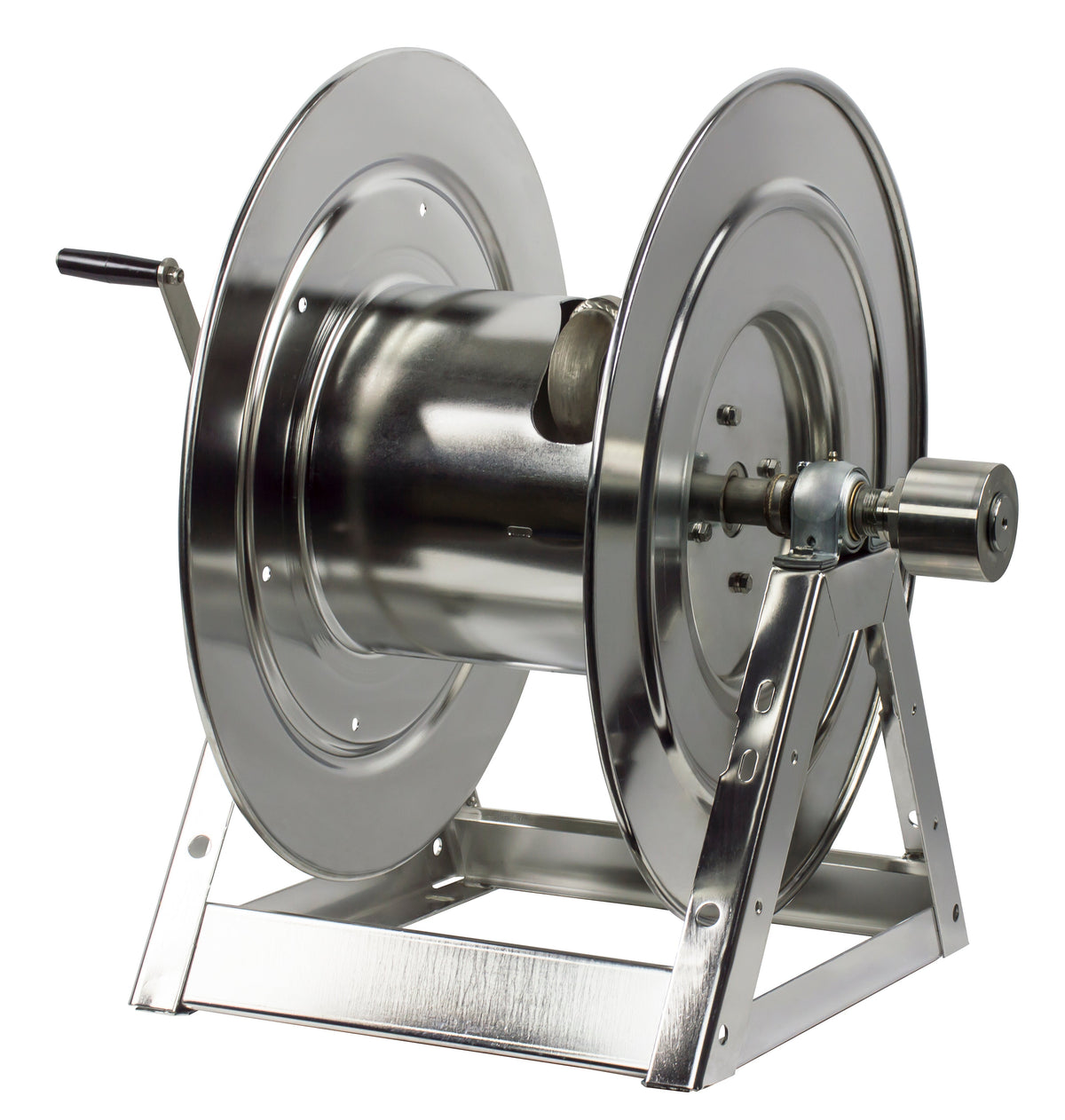

1175-6-200-SS by Coxreels | 1175-SS Series | 3,000 PSI Hand Crank Hose Reel | 1" Hose ID, 1" FNPT Inlet | Stainless Steel | 200ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels 1175-SS Series Hand Crank Hose Reels
Stainless steel A-frame hand crank hose reels for air, water, oil and lubrication, washdown and pressure washing, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Oil & Lubrication
- Washdown
- Pressure Washing
- Fire Booster Hose
- Spraying Operations
- High-Flow Watering
- Hydro Seeding
- Chemical Fluid Transfer
- High Volume Delivery
- Potable Water
- Clean Fluids
- Breathing Air
- Pest Control
2
What are the key specifications?
Construction
Stainless Steel, A-frame
Swivel
Stainless Steel 90° full-flow
Inlet
1" FNPT
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Mounting
Floor, Wall, Vehicle Mounting
0.5" slotted mounting holes
3
What are the main product features?
- Swivel — Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
- CNC Spun Discs — Heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive stainless steel low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" stainless steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Pillow Block Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1175-6-100-SP | 1" | 100 ft | 3,000 | 11.5" | 28.125 × 26.125 × 24 |
| 1175-6-100-SS | — | 100 ft | 3,000 | 11.5" | 28.125 × 26.125 × 24 |
| 1175-6-200-C-SP | 1" | 200 ft | 3,000 | 20" | 36.625 × 26.125 × 24 |
| 1175-6-200-C-SS | 1" | 200 ft | 3,000 | 20" | 36.625 × 26.125 × 24 |
| 1175-6-200-SP | 1" | 200 ft | 3,000 | 20" | 36.625 × 26.125 × 24 |
| 1175-6-200-SS | 1" | 200 ft | 3,000 | 20" | 36.625 × 26.125 × 24 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15037-11.5-SP | 4-way roller bracket, bottom rewind | 1175-6-100-SP |
| 15037-11.5-SS | 4-way roller bracket, bottom rewind | 1175-6-100-SS |
| 15037-20-SP | 4-way roller bracket, bottom rewind | 1175-6-200-C-SP; 1175-6-200-SP |
| 15037-20-SS | 4-way roller bracket, bottom rewind | 1175-6-200-C-SS; 1175-6-200-SS |
| 15357-11.5-SP | 4-way roller bracket, top rewind | 1175-6-100-SP |
| 15357-11.5-SS | 4-way roller bracket, top rewind | 1175-6-100-SS |
| 15357-20-SP | 4-way roller bracket, top rewind | 1175-6-200-C-SP; 1175-6-200-SP |
| 15357-20-SS | 4-way roller bracket, top rewind | 1175-6-200-C-SS; 1175-6-200-SS |
| Upgrades and service parts | ||
| 8340 | Heavy Duty Band Brake | 1175-6-200-C-SP; 1175-6-100/200-SP |
| HSRK-100, HSRK-100F | Hose Strain Relief Kit | Every model |
| 20843 | Spring Loaded Lock Pin | Every model |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Swivel and plumbing | |
| -BZXX | Less swivel |
| 4-way roller position | |
| -SXCX / -SXCF / -SXCA / -SXCX | Top payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| -SXFF / -SXFX / -SXFX / -SXFF | Bottom payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| 3-way roller position | |
| -SXEX / -SXEF | Top payout, on reel: hand crank right / hand crank left |
| -SXHF / -SXHX / -SXHX / -SXHF | Bottom payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| Swivel and motor/crank position | |
| -SXXX | Top payout hand crank, swivel left, crank right |
| -SXAF | Top payout hand crank, swivel right, crank left |
| -SXAF | Bottom payout hand crank, swivel left, crank right |
| -SXXX | Bottom payout hand crank, swivel right, crank left |
| -SXXA | Top payout bevel crank, swivel left, crank right |
| -SXXX | Top payout bevel crank, swivel right, crank left |
| -SXXX | Bottom payout bevel crank, swivel left, crank right |
| -SXAF | Bottom payout bevel crank, swivel right, crank left |
7
Where can I find product documents?
1175-SS Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
