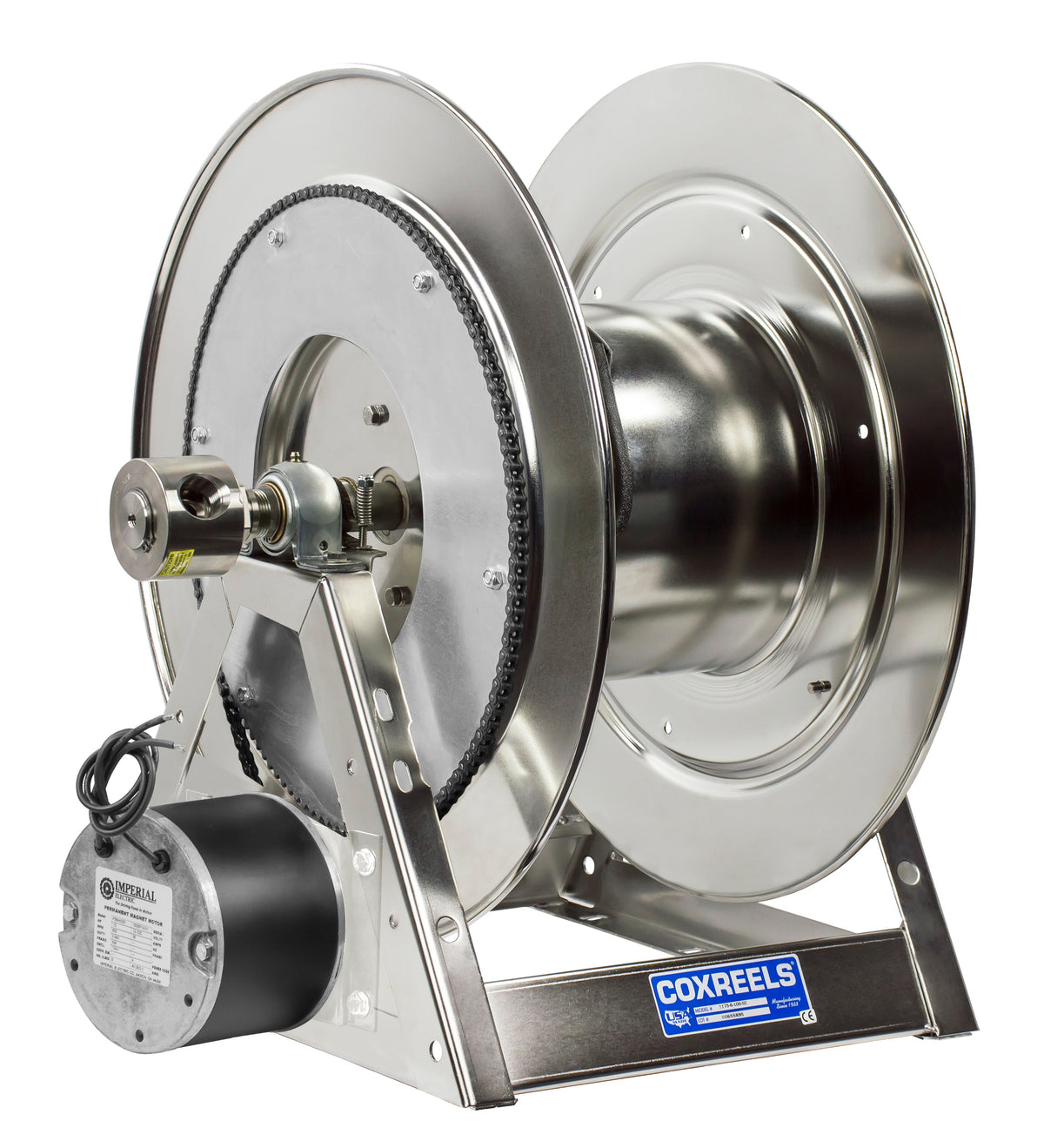

1175-6-200-E-SS by Coxreels | 1175-SS Series | 3,000 PSI Motor Driven Hose Reel | 12V DC 1/3 HP Electric Motor | 1" Hose ID, 1" FNPT Inlet | Stainless Steel | 200ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels 1175-SS Series Motor Driven Hose Reels
Stainless steel A-frame motor driven hose reels for air, water, oil and lubrication, washdown and pressure washing, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Oil & Lubrication
- Washdown
- Pressure Washing
- Fire Booster Hose
- Spraying Operations
- High-Flow Watering
- Hydro Seeding
- Chemical Fluid Transfer
- High Volume Delivery
- Potable Water
- Clean Fluids
- Breathing Air
- Pest Control
2
What are the key specifications?
Construction
Stainless Steel, A-frame
Inlet
1" FNPT
Max Temperature
250°F
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
- CNC Spun Discs — Heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive stainless steel low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" stainless steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Pillow Block Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 115V AC, 1/2 HP, explosion proof electric motor | |||||
| 1175-6-100-EA-SP | 1" | 100 ft | 3,000 | 11.5" | 26 × 26.125 × 24 |
| 1175-6-200-EA-SP | 1" | 200 ft | 3,000 | 20" | 34.5 × 26.125 × 24 |
| 12V DC, 1/2 HP, explosion proof electric motor | |||||
| 1175-6-100-ED-SP | 1" | 100 ft | 3,000 | 11.5" | 26 × 26.125 × 24 |
| 1175-6-200-ED-SP | 1" | 200 ft | 3,000 | 20" | 34.5 × 26.125 × 24 |
| 12V DC, 1/3 HP electric motor | |||||
| 1175-6-100-E-SP | 1" | 100 ft | 3,000 | 11.5" | 26 × 26.125 × 24 |
| 1175-6-100-E-SS | 1" | 100 ft | 3,000 | 11.5" | 26 × 26.125 × 24 |
| 1175-6-200-E-SP | 1" | 200 ft | 3,000 | 20" | 34.5 × 26.125 × 24 |
| 1175-6-200-E-SS | 1" | 200 ft | 3,000 | 20" | 34.5 × 26.125 × 24 |
| 230V AC, 1/2 HP, explosion proof electric motor | |||||
| 1175-6-100-EJ-SP | 1" | 100 ft | 3,000 | 11.5" | 26 × 26.125 × 24 |
| 1175-6-200-EJ-SP | 1" | 200 ft | 3,000 | 20" | 34.5 × 26.125 × 24 |
| 24V DC, 1/2 HP, explosion proof electric motor | |||||
| 1175-6-100-EB-SP | 1" | 100 ft | 3,000 | 11.5" | 26 × 26.125 × 24 |
| Air motor (#4 Gast) | |||||
| 1175-6-100-A-SP | 1" | 100 ft | 3,000 | 11.5" | 24.5 × 26.125 × 24 |
| 1175-6-200-A-SP | 1" | 200 ft | 3,000 | 20" | 33 × 26.125 × 24 |
| 1175-6-200-A-SS | 1" | 200 ft | 3,000 | 20" | 33 × 26.125 × 24 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15037-11.5-SP | 4-way roller bracket, bottom rewind | Drum width 11.5" except 1175-6-100-E-SS |
| 15037-11.5-SS | 4-way roller bracket, bottom rewind | 1175-6-100-E-SS |
| 15037-20-SP | 4-way roller bracket, bottom rewind | 1175-6-200-A/E/EA/ED/EJ-SP |
| 15037-20-SS | 4-way roller bracket, bottom rewind | 1175-6-200-A/E-SS |
| 15357-11.5-SP | 4-way roller bracket, top rewind | Drum width 11.5" except 1175-6-100-E-SS |
| 15357-11.5-SS | 4-way roller bracket, top rewind | 1175-6-100-E-SS |
| 15357-20-SP | 4-way roller bracket, top rewind | 1175-6-200-A/E/EA/ED/EJ-SP |
| 15357-20-SS | 4-way roller bracket, top rewind | 1175-6-200-A/E-SS |
| Upgrades and service parts | ||
| 8340 | Heavy Duty Band Brake | Every model except 1175-6-100/200-E-SS; 1175-6-200-A-SS |
| HSRK-100, HSRK-100F | Hose Strain Relief Kit | Every model |
| 20843 | Spring Loaded Lock Pin | Every model |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | Motor suffix -EA, -EJ |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | Motor suffix -E, -ED |
| 20878 | Circuit Breaker | Motor suffix -E, -ED |
| 15212 | Control Valve for No. 4 Gast Air Motor | Motor suffix -A |
| 20882 | Explosion Proof Stationary Push Button Switch | Motor suffix -E |
| 15210 | General Purpose Reversing Switch | Motor suffix -EA, -EJ |
| 20876 | Sealed Push Button Switch | Every model except 1175-6-100/200-A-SP; 1175-6-200-A-SS |
| 20877 | Solenoid Relay | Motor suffix -E, -ED |
| 8281 | Switch Box | Motor suffix -E, -ED |
| 20883 | Vapor Proof Junction Box | Every model except 1175-6-100/200-A-SP; 1175-6-200-A-SS |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Swivel and plumbing | |
| -BZXX | Less swivel |
| 4-way roller position | |
| -SXCA / -SXCX | Top payout, on reel: motorized right / motorized left |
| -SXFX / -SXFI | Bottom payout, on reel: motorized right / motorized left |
| 3-way roller position | |
| -SXEA / -SXEX | Top payout, on reel: motorized right / motorized left |
| -SXHX / -SXHI | Bottom payout, on reel: motorized right / offset motorized left-front |
| Swivel and motor/crank position | |
| -SXXX | Top payout motorized standard, swivel left, motor left |
| -SXAI | Top payout motorized standard, swivel right, motor right |
| -SXAI | Bottom payout motorized standard, swivel left, motor left |
| -SXXX | Bottom payout motorized standard, swivel right, motor right |
7
Where can I find product documents?
1175-SS Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
