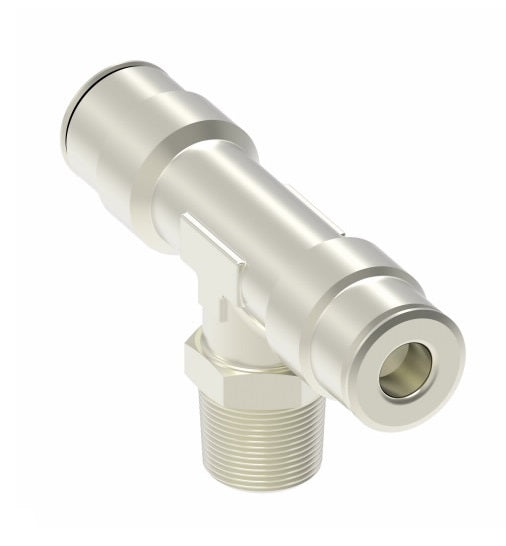

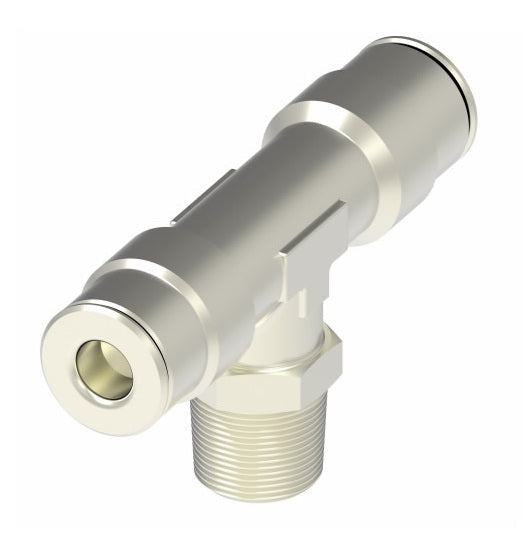

1172X6S by Danfoss | Push to Connect Adapter | Swivel Male Branch Tee | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male NPTF | Nickel Plated Brass
Aeroquip® by Danfoss
Push to Connect Adapter - Swivel Male Branch Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.65 |
| 40–79 | $15.05 |
| 80+ | $13.28 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Vacuum: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nickel Plated Brass Part Number |
Tube O.D. | Male Pipe Thread | C | E | F | H | I | SW | SW1 |
| 1172X2AS | 1/8" | 10-32* | 0.24" | 0.53" | 0.39" | 0.18" | 1.61" | 0.35" | 0.32" |
| 1172X2S | 1/8" | 1/8" | 0.14" | 0.65" | 0.35" | 0.32" | 1.38" | 0.32" | 0.47" |
| 1172X2.5AS | 5/32" | 10-32* | 0.24" | 0.56" | 0.39" | 0.18" | 1.57" | 0.35" | 0.32" |
| 1172X2.5S | 5/32" | 1/8" | 0.14" | 0.65" | 0.35" | 0.32" | 1.38" | 0.32" | 0.47" |
| 1172X2.5X4S | 5/32" | 1/4" | 0.14" | 0.67" | 0.35" | 0.47" | 1.38" | 0.32" | 0.55" |
| 1172X4S | 1/4" | 1/8" | 0.16" | 0.67" | 0.50" | 0.32" | 1.57" | 0.35" | 0.47" |
| 1172X4X4S | 1/4" | 1/4" | 0.16" | 0.71" | 0.50" | 0.47" | 1.57" | 0.35" | 0.55" |
| 1172X4X6S | 1/4" | 3/8" | 0.16" | 0.69" | 0.50" | 0.47" | 1.57" | 0.35" | 0.75" |
| 1172X6S | 3/8" | 1/4" | 0.26" | 0.85" | 0.65" | 0.47" | 2.09" | 0.51" | 0.55" |
| 1172X6X6S | 3/8" | 3/8" | 0.26" | 0.83" | 0.65" | 0.47" | 2.09" | 0.51" | 0.75" |
| 1172X6X8S | 3/8" | 1/2" | 0.26" | 0.91" | 0.65" | 0.61" | 2.09" | 0.51" | 0.87" |
| 1172X8X4S | 1/2" | 1/4" | 0.32" | 0.91" | 0.77" | 0.47" | 2.24" | 0.59" | 0.67" |
| 1172X8S | 1/2" | 3/8" | 0.32" | 0.89" | 0.77" | 0.47" | 2.24" | 0.59" | 0.75" |
| 1172X8X8S | 1/2" | 1/2" | 0.32" | 0.95" | 0.77" | 0.61" | 2.24" | 0.59" | 0.87" |
* UNF Thread. Seals with nylon washer (included).
