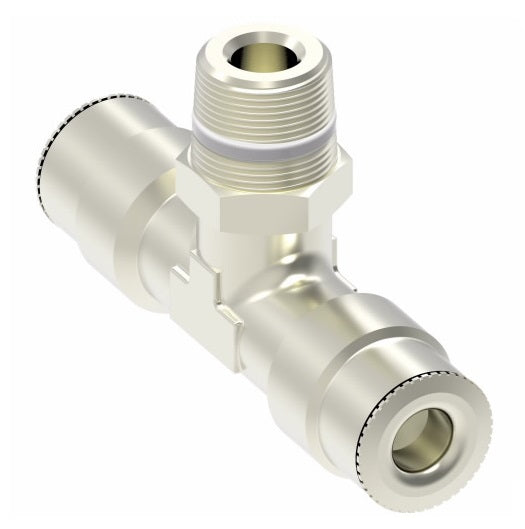

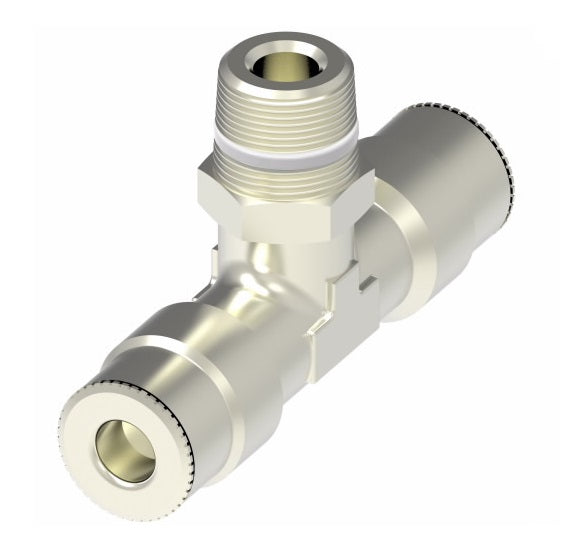

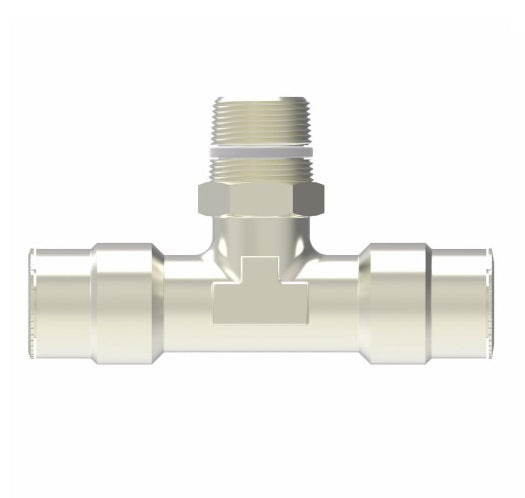

1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass
1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass
1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass

1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass

Sale price$24.42

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Branch Tee
Buy More, Save More!
Quantity Price Each
10–39 $22.95
40–79 $20.76
80+ $18.32
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Material(s):
  • Nickel Plated Brass
Special Properties:
  • Swivel
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male Metric
Thread		 C E F H I SW
(mm)		 SW1
(mm)
1172X4MX5MMS 4mm M5* 3.5mm 14.5mm 9.0mm 4.0mm 35mm 8mm 8mm

* M5x0.8 metric screw thread. Seals with nylon washer (included).

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
