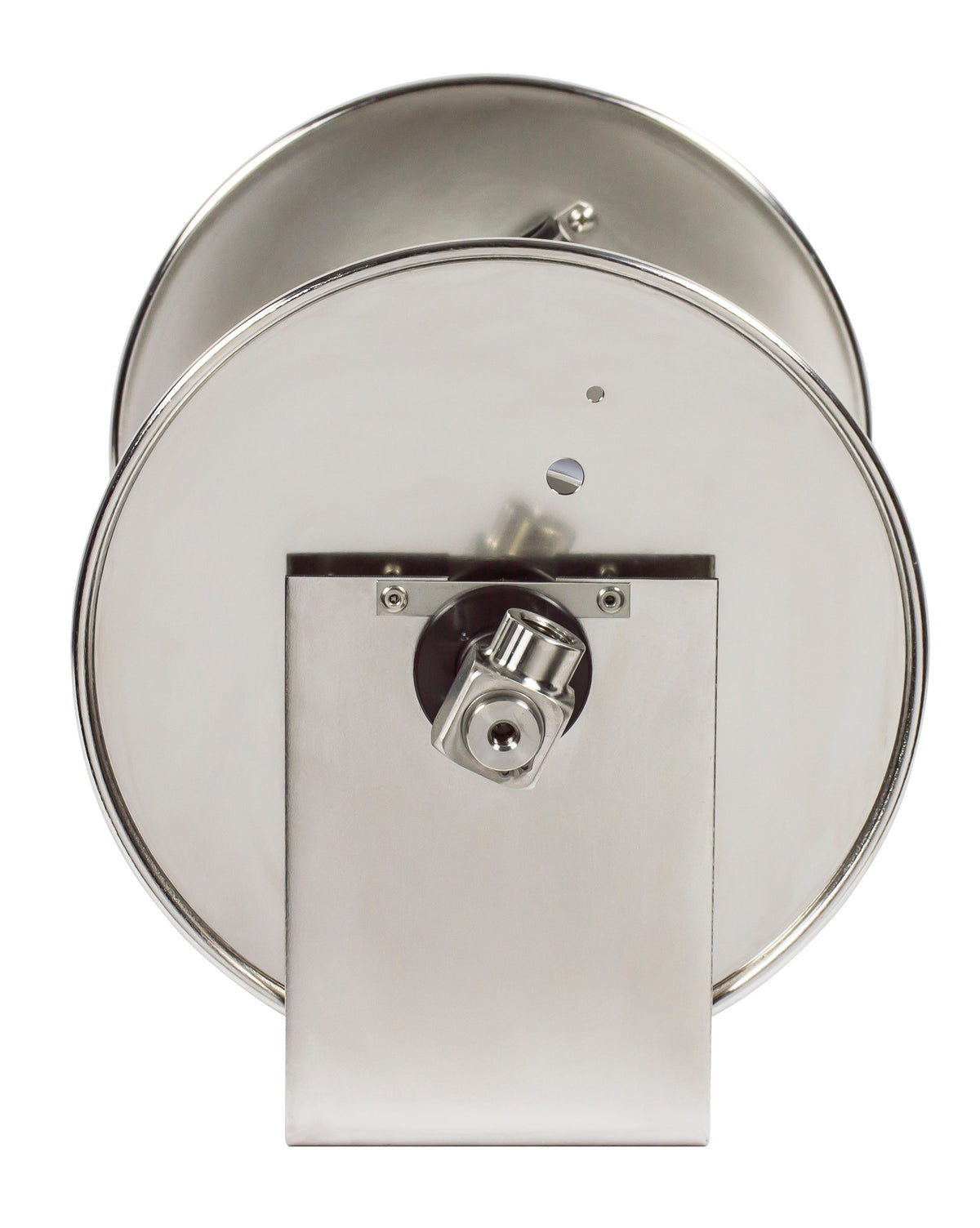

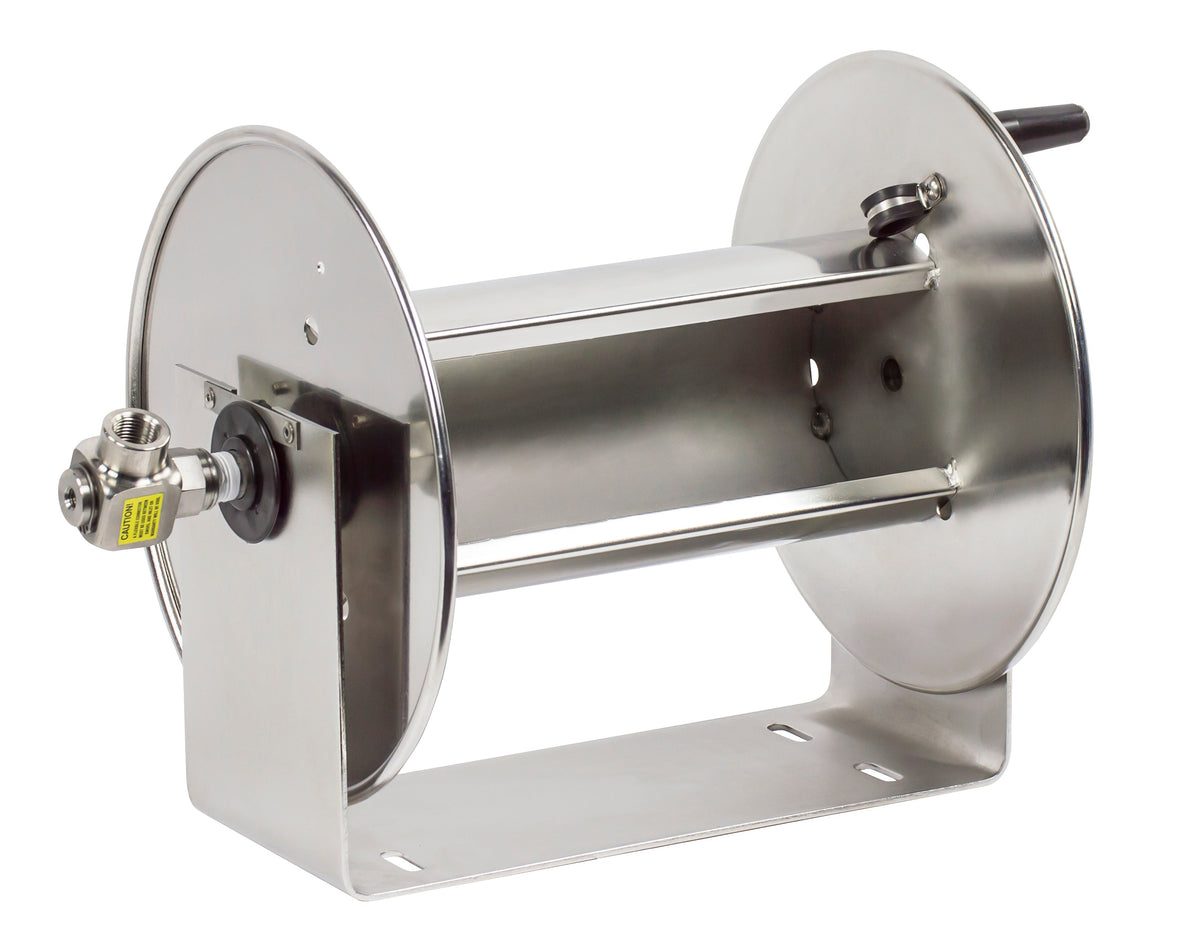

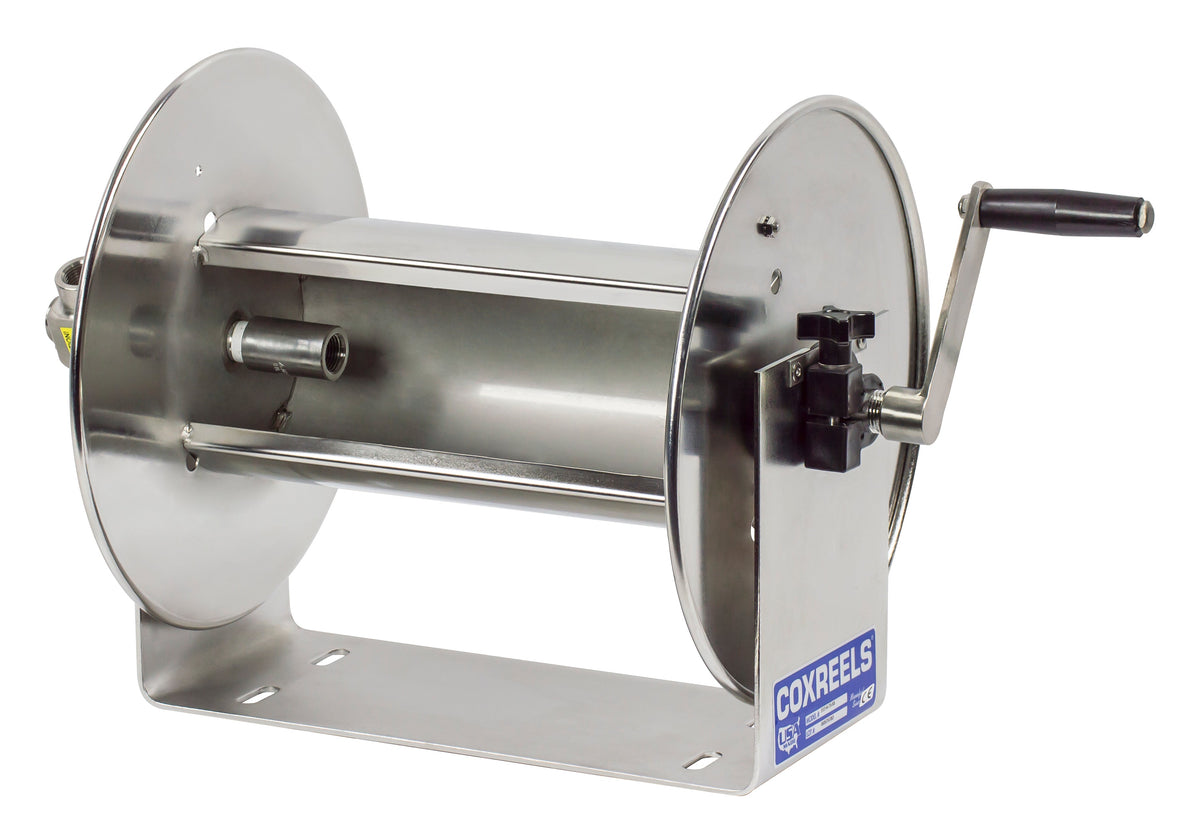

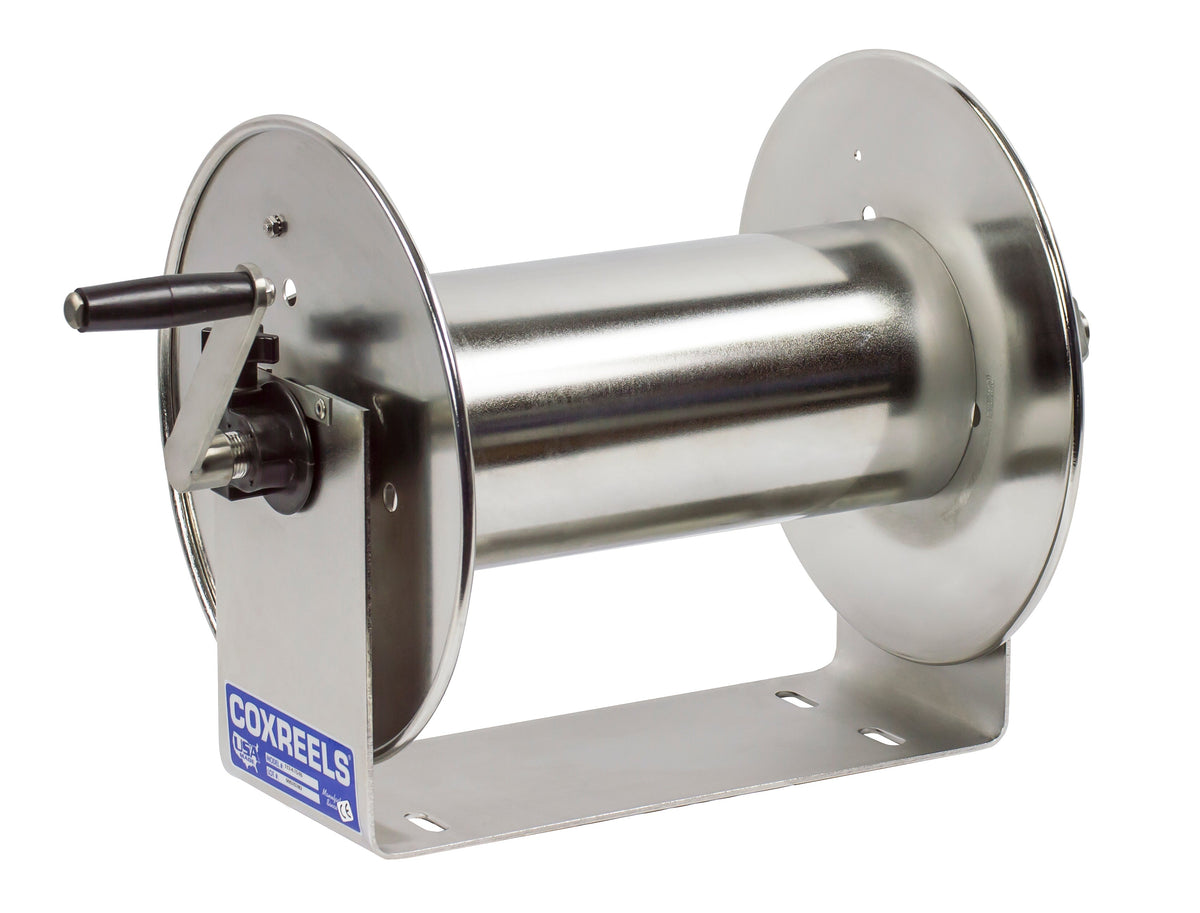

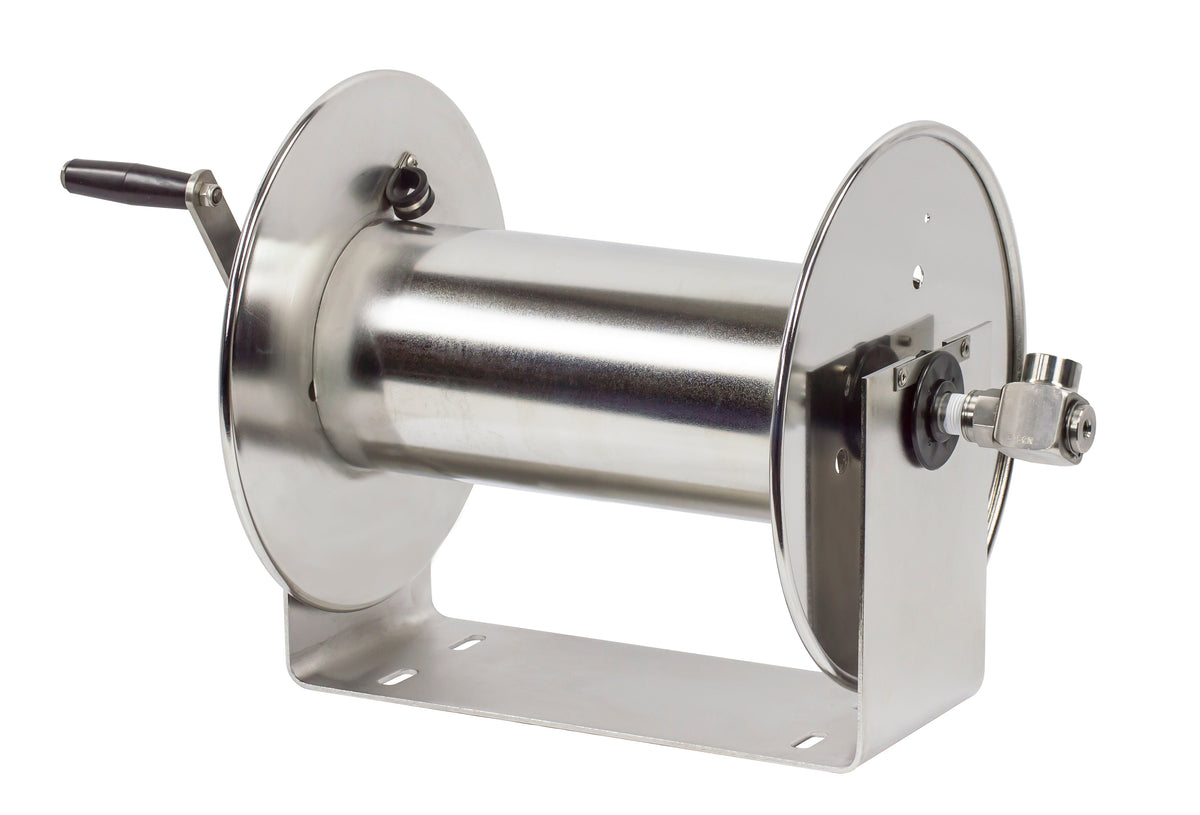

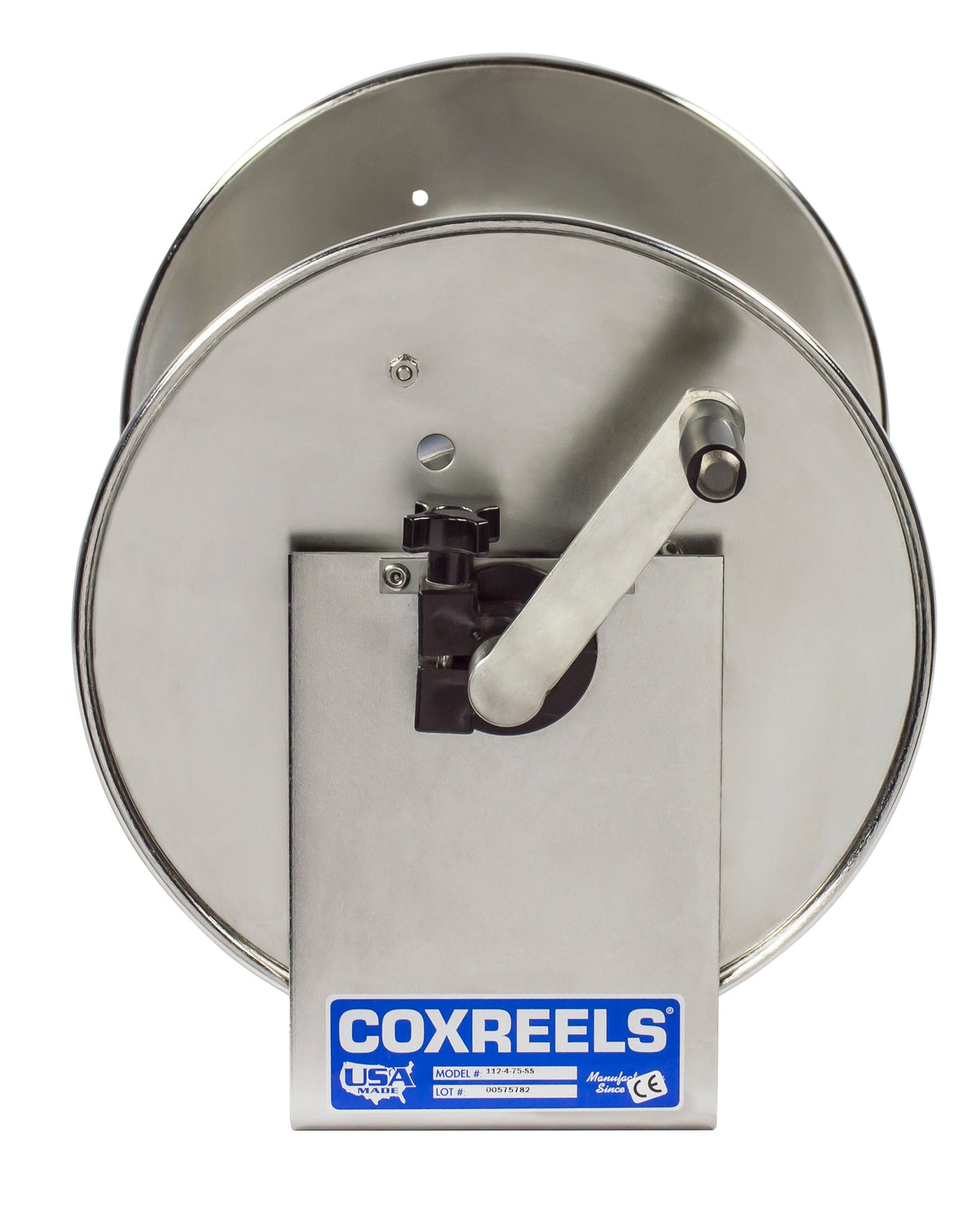

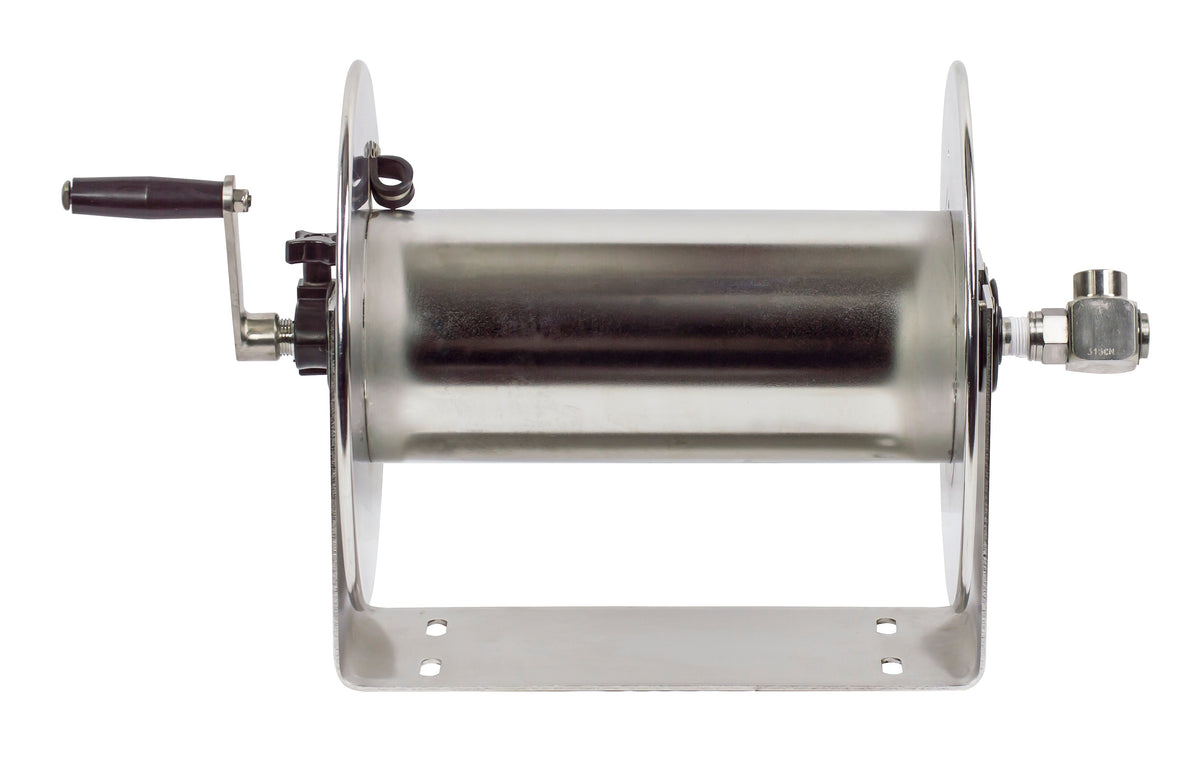

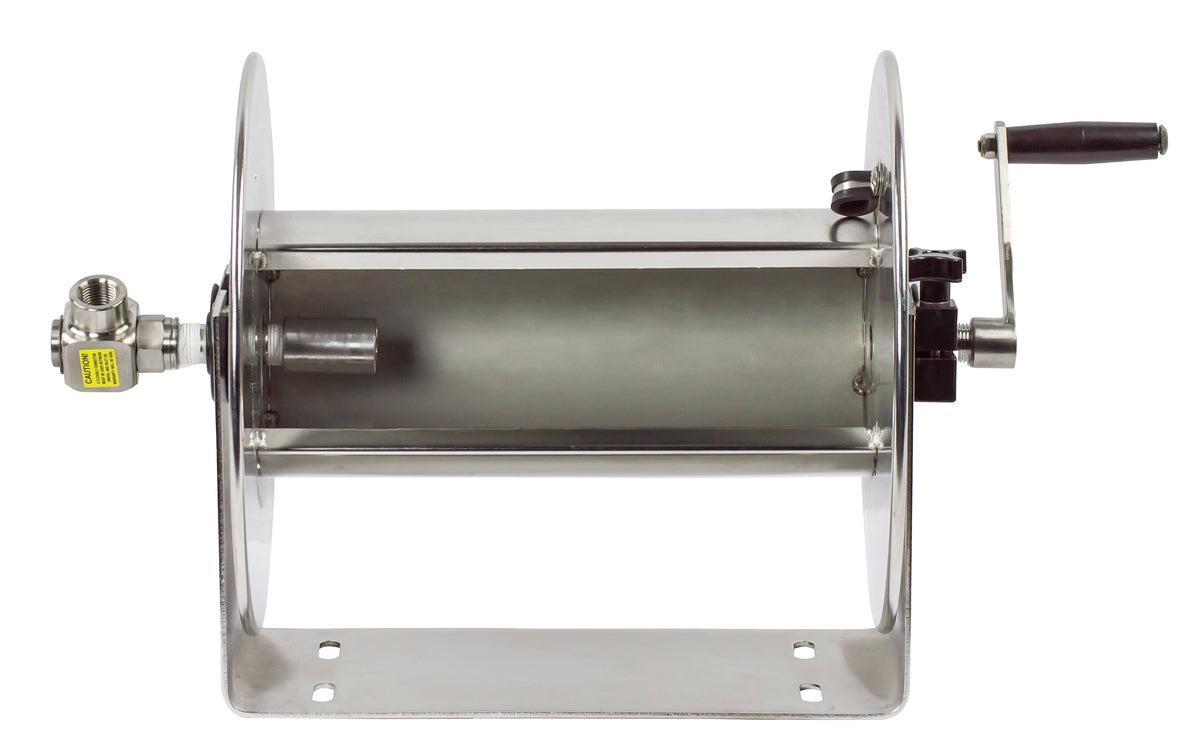

117-5-100-SS by Coxreels | 100-SS Series | 4,000 PSI Hand Crank Hose Reel | 3/4" Hose ID, 3/4" FNPT Inlet | Stainless Steel | 100ft Capacity, Hose Not Included
Coxreels 100-SS Series Hand Crank Hose Reels
Stainless steel U-frame hand crank hose reels for air, water, washdown, pressure washing and pest control, rated to 4,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Chemical Fluid Transfer
- Potable Water
- Clean Fluids
- Breathing Air
2
What are the key specifications?
Stainless Steel, U-frame
Stainless Steel 90° full-flow with Nitrile Non-Toxic Food Grade Grease seals
Female NPT, same size as the hose I.D.
250°F
Lubricated EPDM Bearings
Electro-polished Stainless Steel
Floor, Wall, Vehicle Mounting
0.44 SLOT
3
What are the main product features?
- Swivel — Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
- U Shaped Frame Design — Solid one piece electro-polished finish stainless steel U shaped frame. Professional grade, compact, lightweight and simple design.
- CNC Spun Discs — Heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Steel Construction — High quality stainless steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Reel W × H × L (in) |
|---|---|---|---|---|
| 112-4-75-SS | 1/2" | 75 ft | 4,000 | 22.75 × 13 × 12 |
| 117-4-225-SS | 1/2" | 225 ft | 4,000 | 22.75 × 18 × 17 |
| 117-5-100-SS | 3/4" | 100 ft | 4,000 | 23.25 × 18 × 17 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Swivel and plumbing | |
| -BZXX | Less swivel |
7
Where can I find product documents?
100-SS Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
