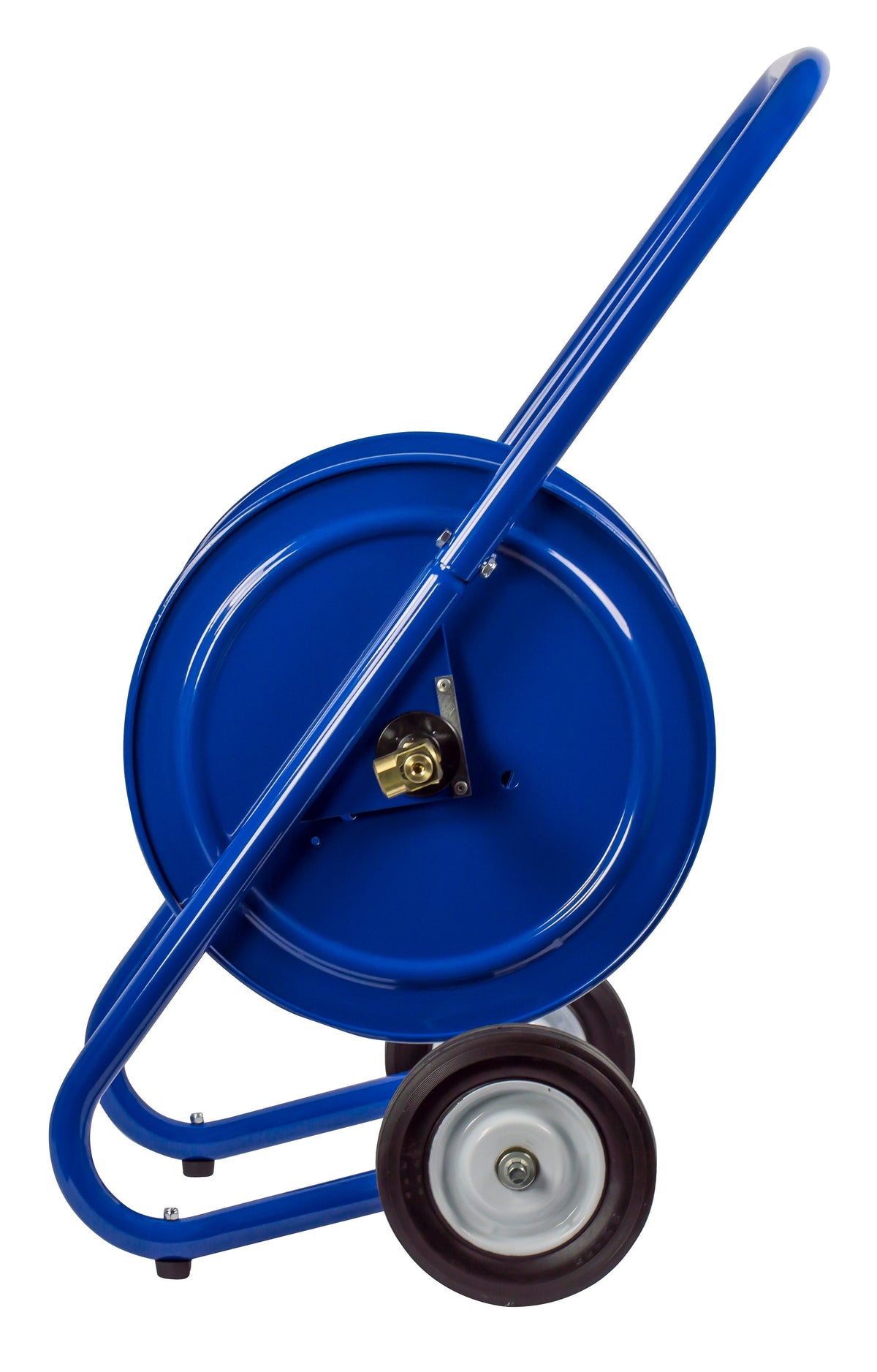

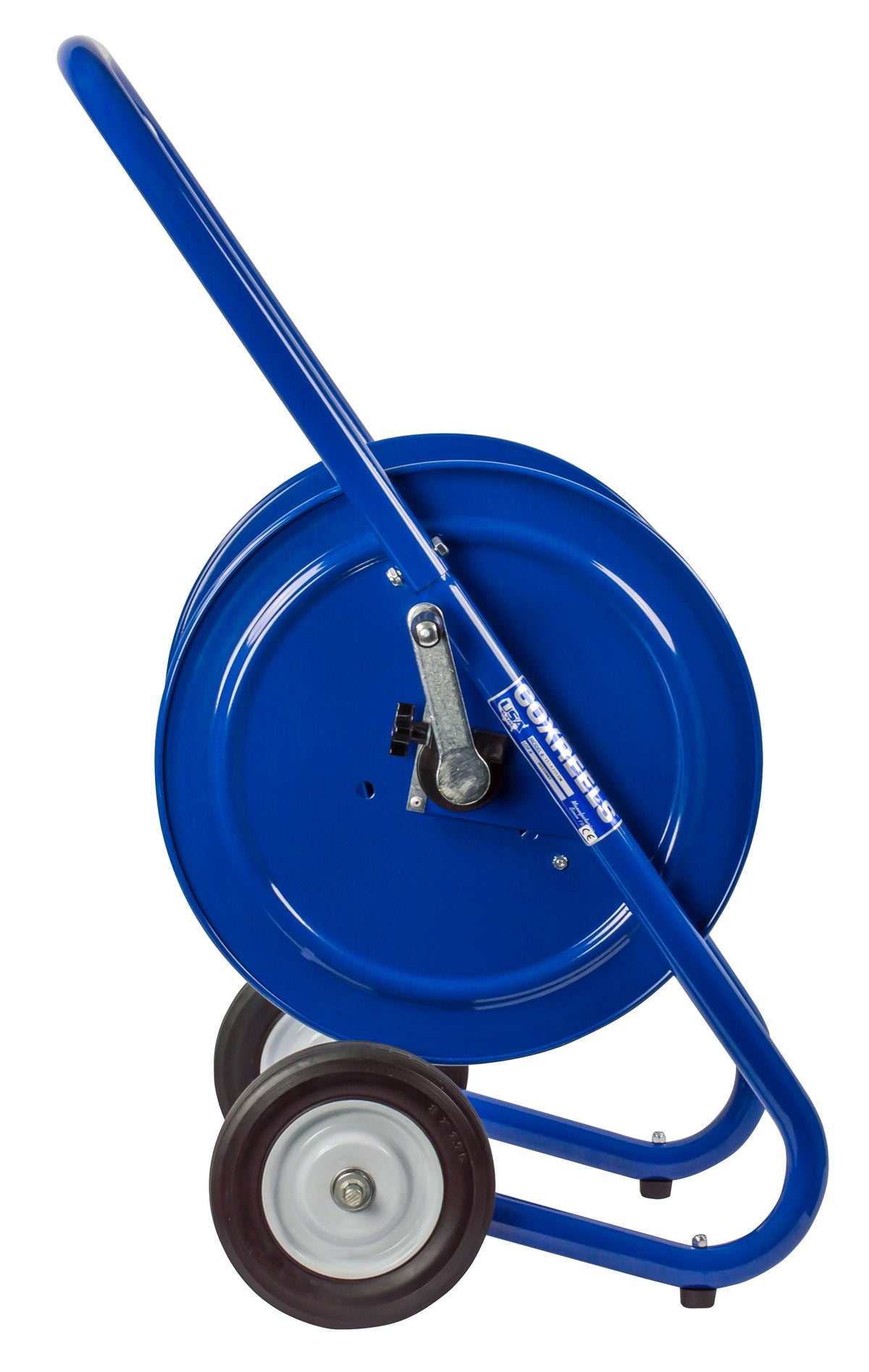

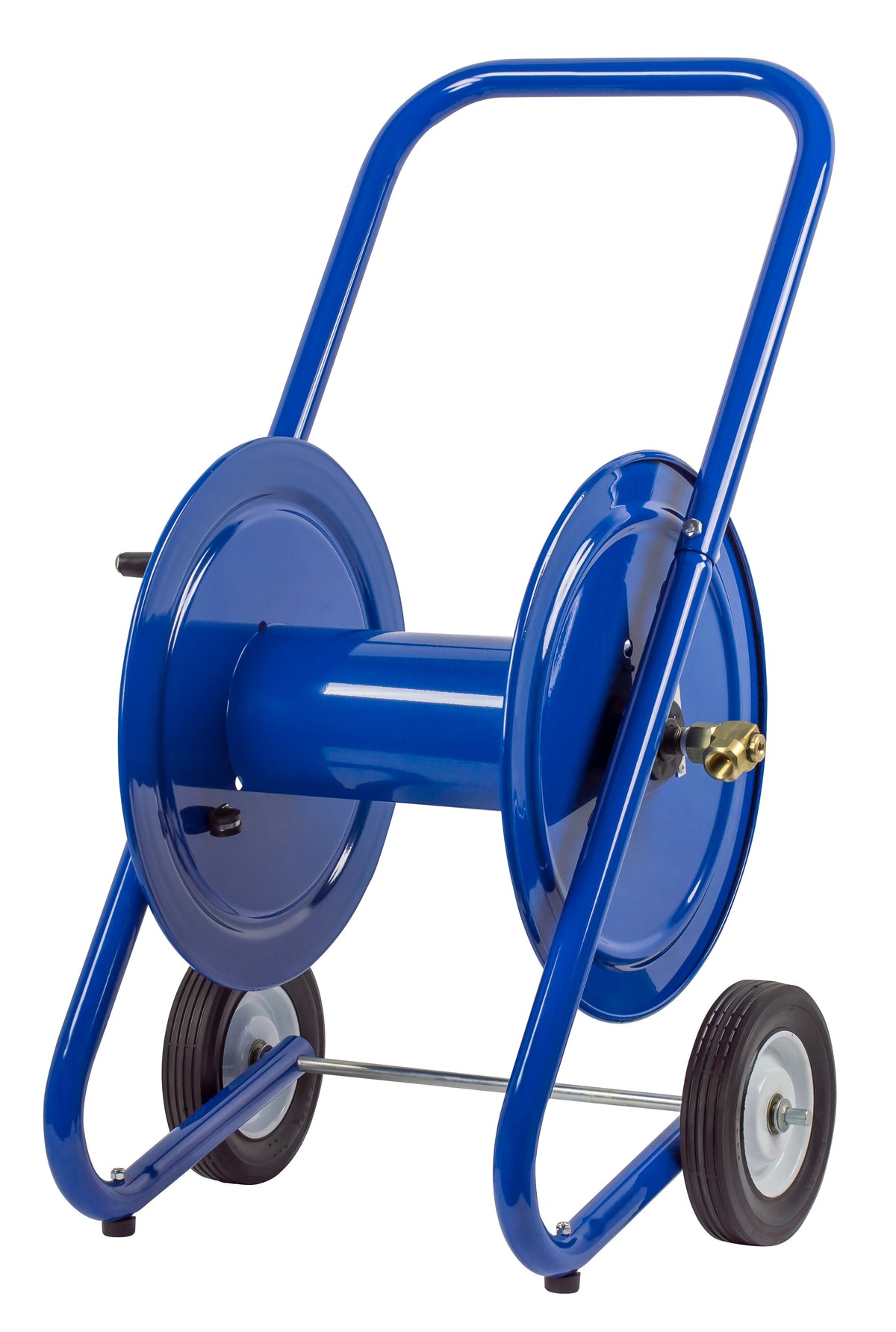

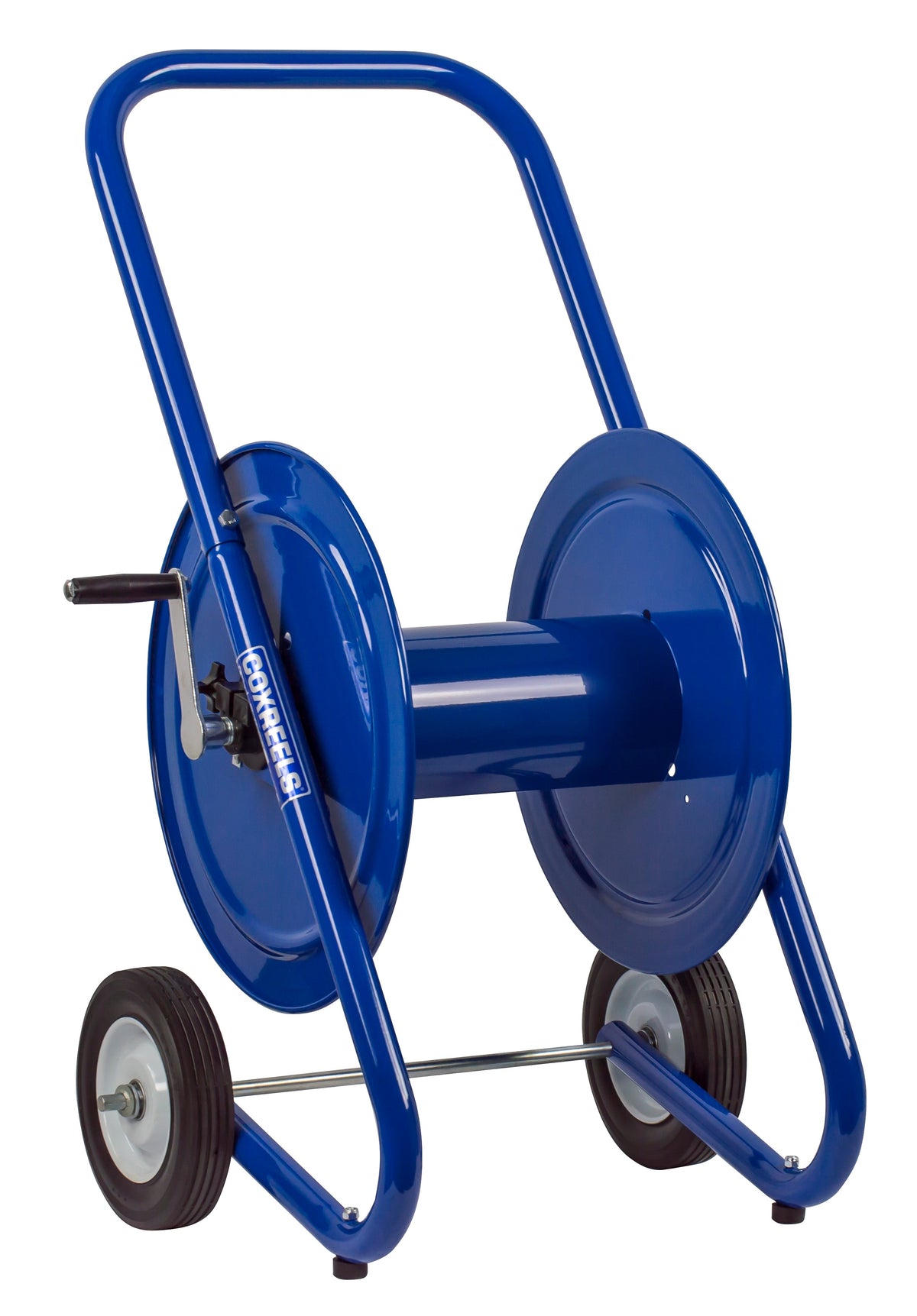

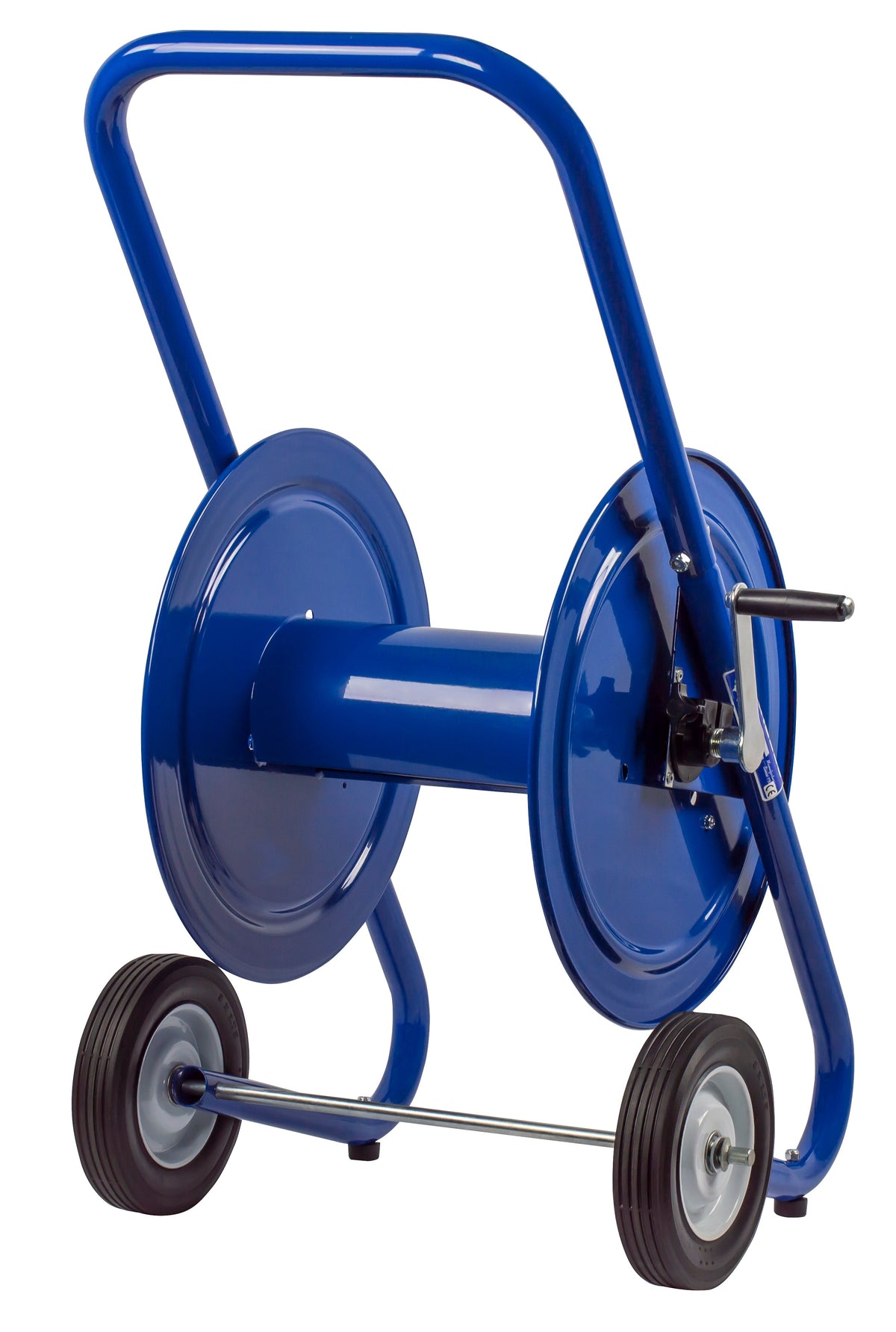

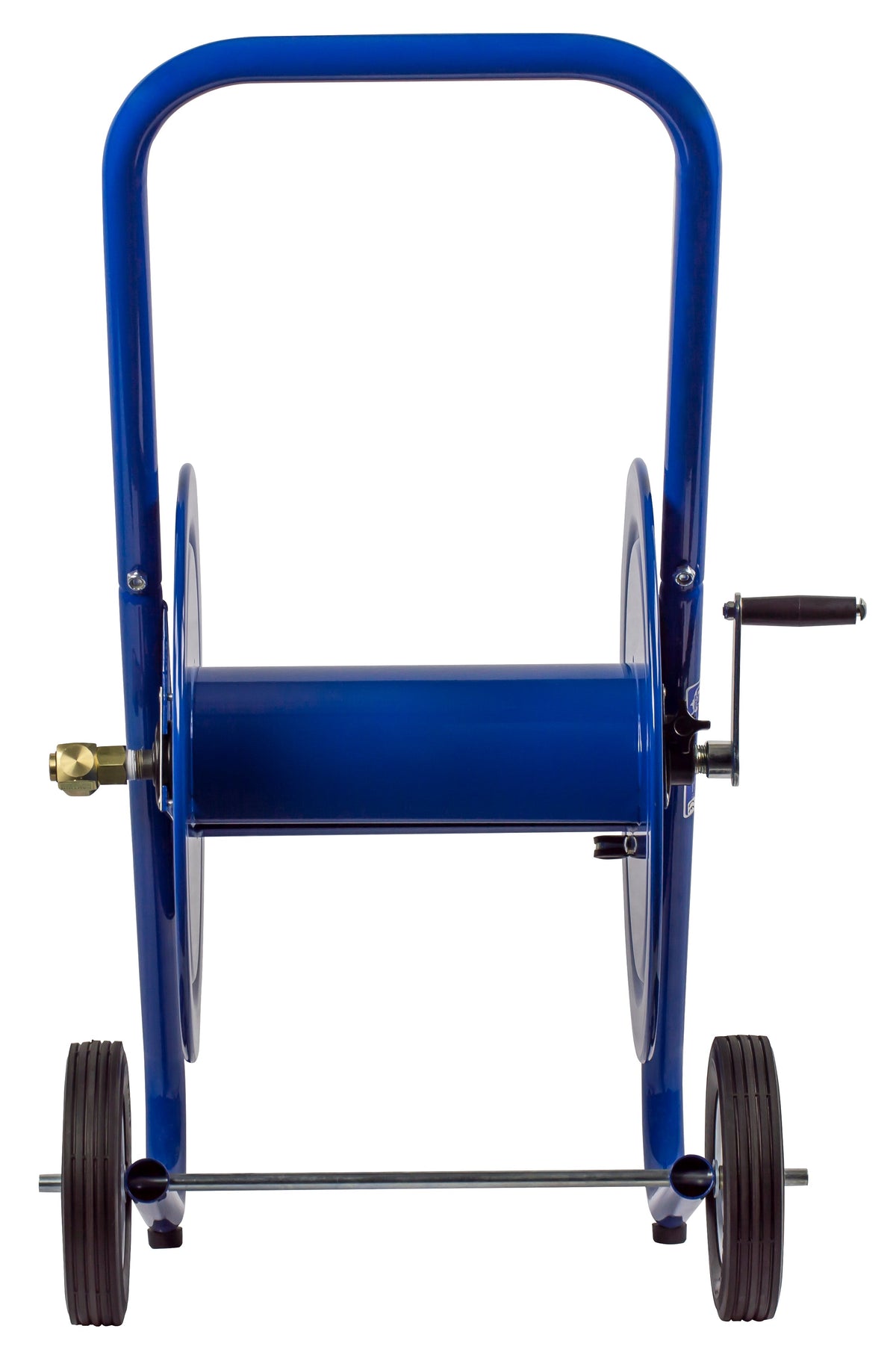

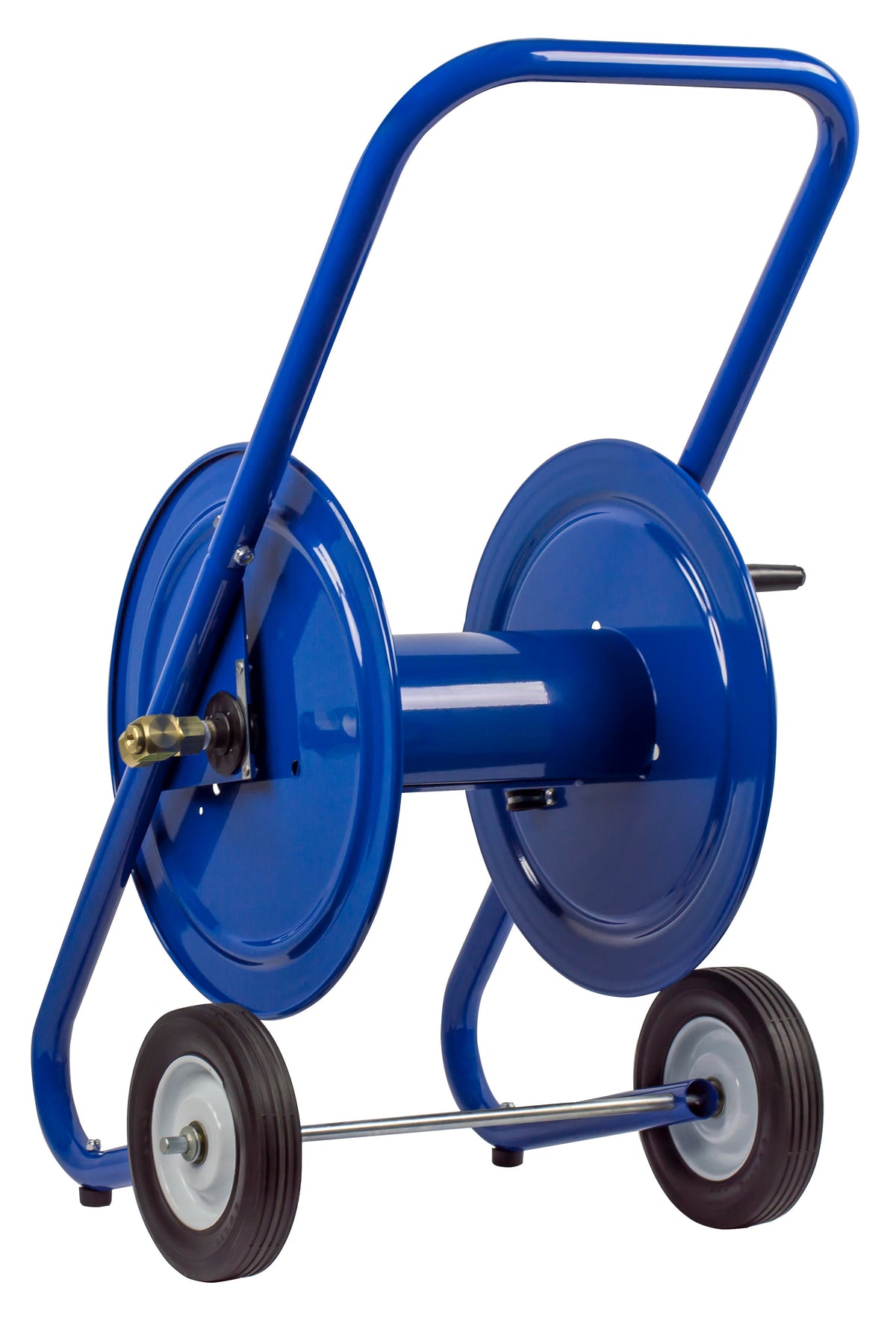

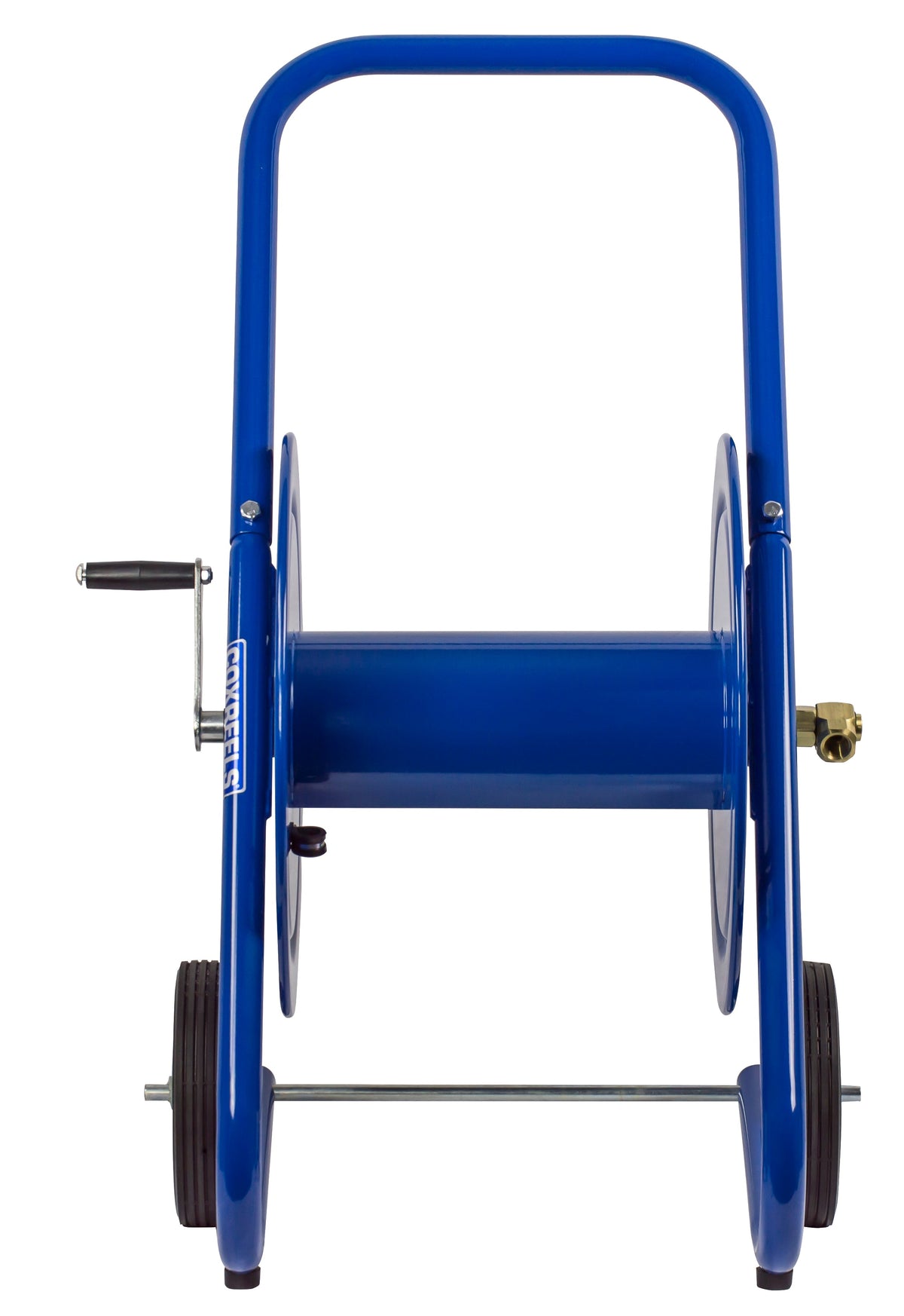

117-4-225-DM by Coxreels | DM Series | 4,000 PSI Dolly Hand Crank Hose Reel | 1/2" Hose ID, 1/2" FNPT Inlet | Steel | 225ft Capacity, Hose Not Included
Coxreels DM Series Hand Crank Hose Reels
Steel dolly-mount hand crank hose reels for air, water, washdown, pressure washing and pest control, rated to 4,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
2
What are the key specifications?
Steel, dolly-mount
CPC™ powder coat
Brass 90° full-flow with Nitrile seals
Female NPT, same size as the hose I.D.
225°F
Lubricated EPDM Bearings
Floor, Wall, Vehicle Mounting
3
What are the main product features?
- Swivel — Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Frame Design — High quality three piece 1-1/4" steel tube frame structure.Removable handle allow for compact storage.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Steel Construction — High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 117-3-200-DM | 3/8" | 200 ft | 4,000 | 8" | 19 × 36.25 × 21 |
| 117-4-225-DM | 1/2" | 225 ft | 4,000 | 12.5" | 23.5 × 36.25 × 21 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Inlet connections — fit every model except 117-3-200-DM | ||
| 15717 | Garden Hose Kit | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BFXX is -GFXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BZXX | Less swivel |
7
Where can I find product documents?
DM Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
