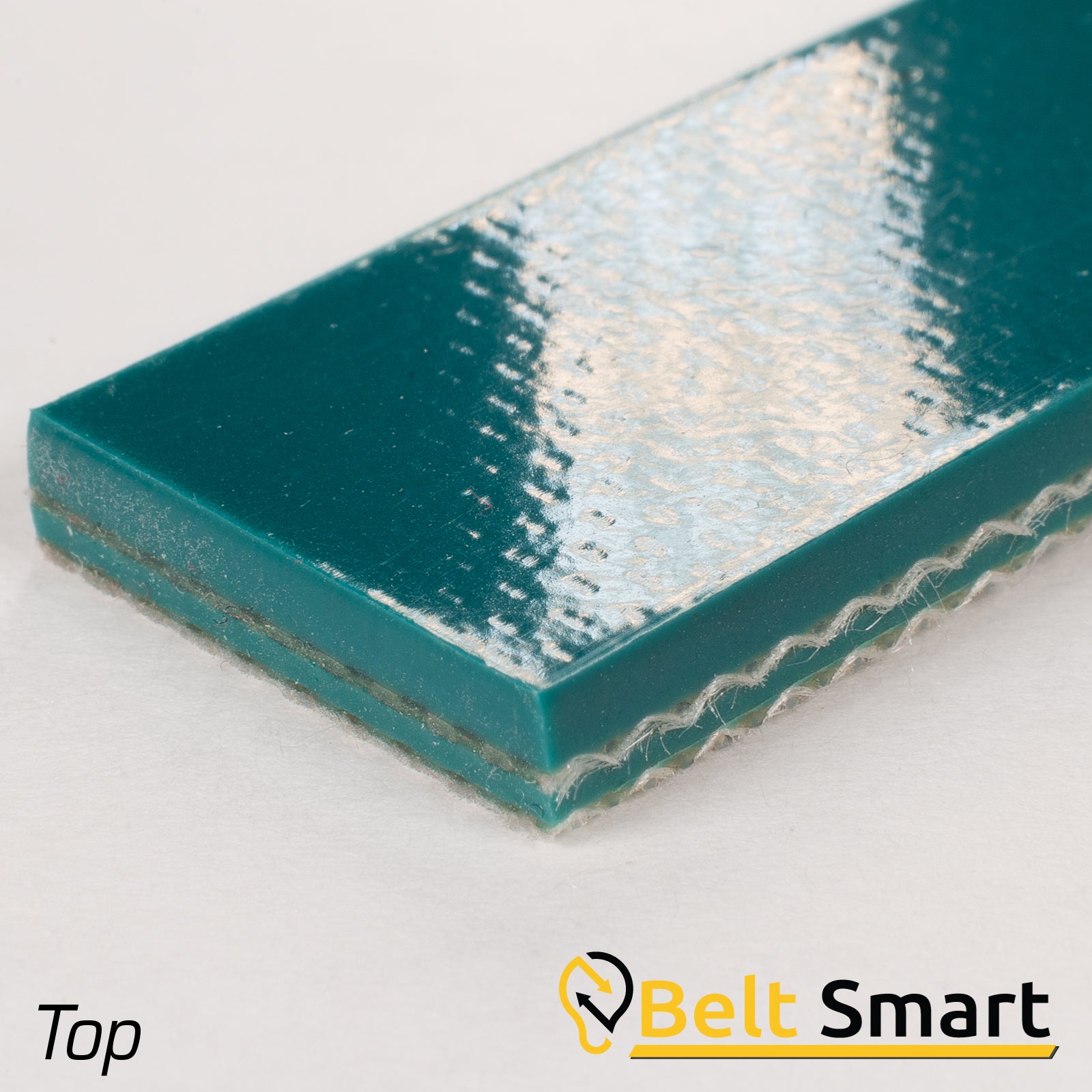

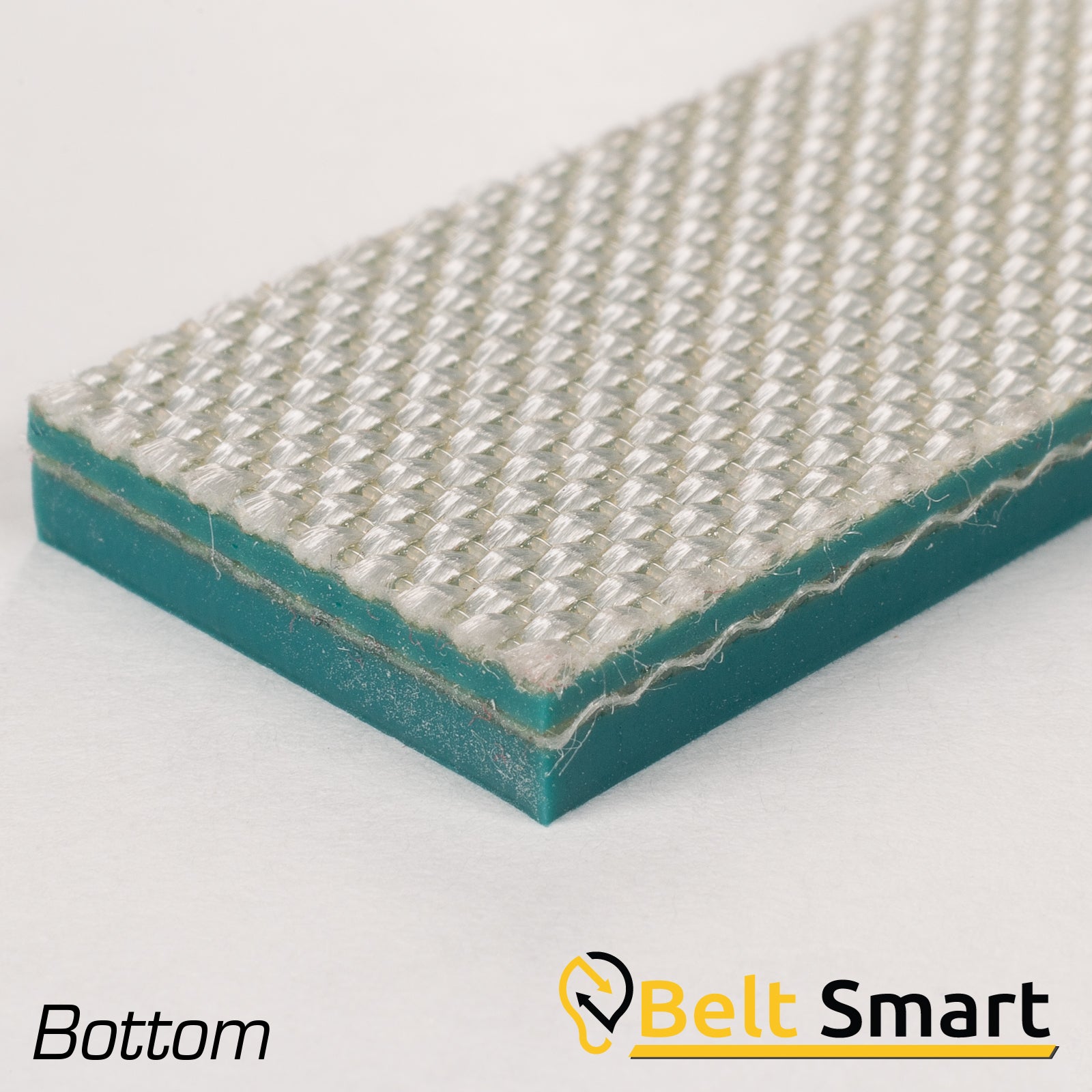

BS116A - #116A Beltservice E15/2 0/V20AS Blue 2 Ply Poly CR 100 PVC 1/16" Sticky Top x Bare Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying Packages Box Board
Features:
The soft durometer "sticky top" (ST) cover of the 116A is ideal for elevating. Both belts are very popular in conveying packages and box board. Since there is no profile that must be compressed to elevate, lightweight products are gripped as well as heavier ones. No. 116B has improved abrasion resistance and is excellent for heavy load applications where impact and extreme service conditions are common. Both belts are antistatic.

	Blue 2 Ply Poly CR 100 PVC 1/16" Sticky Top x Bare Pt No.: 116A	Gray 3 Ply CR140 PVC 3/32" Sticky Top x Bare Pt No.: 116B
Thickness	.125"	.20"
Covers	ST x B
Carcass	Mono/Multi
Elongation @ 1%	100 lbs.	140 lbs.
Approx. Weight Lbs. Per Inch Width	.072 lbs.	.098 lbs.
Min. Pulley Diameter	3"	5"
Temperature Range	10 deg. F / 180 deg. F
Coefficient of Friction	.23
Anti-Static	Yes	Yes
Clipper Lace	#36

ST = Sticky Top
B = Bare
Multi = Multifilament
Mono = Monofilament
